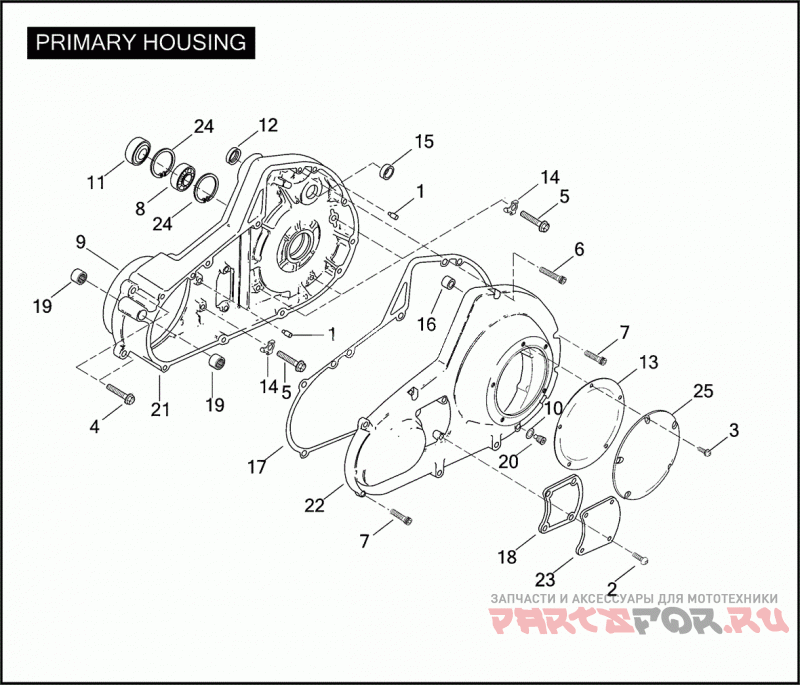

PRIMARY HOUSING

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2005)

Harley Davidson
#oem кодцена
1
221
Штифт
2
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
3
961
SCREW 1/4-20 X 1/2 TORX PAN HD., W/WASHER (GRADE 8)
4
2885
SCREW 5/16-18 X 1-3/4 SEMS HEX HD. (GRADE 5)
5
4086A
BOLT 5/16-18 X 3 HEX HD. (GRADE 5)
6
4718A
SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH
7
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
8
9135
Подшипник
9
11147B
O-RING HOUSING COVER
10
11324
O-RING MAGNETIC DRAIN PLUG
11
12052A
Сальник
12
12066A
Сальник
13
25416-99C
SEAL CLUTCH COVER
14
33318-85
LOCKING TAB
15
33445-94A
Втулка
16
33446-94A
Втулка
17
34901-94C
GASKET PRIMARY COVER
18
34906-85D
GASKET INSPECTION COVER
19
42642-00A
Втулка
20
60391-04
PLUG ASSEMBLY MAGNETIC DRAIN, W/ 11324
21
60432-01
PRIMARY HOUSING ASSEMBLY (BLACK)
22
60665-99B
COVER ASSEMBLY PRIMARY, W/ 33446-94A & 60391-04 (CHROME)
23
60670-85A
COVER INSPECTION (CHROME)
24
60678-85
Стопорное кольцо
25
60668-99
COVER CLUTCH (CHROME)
