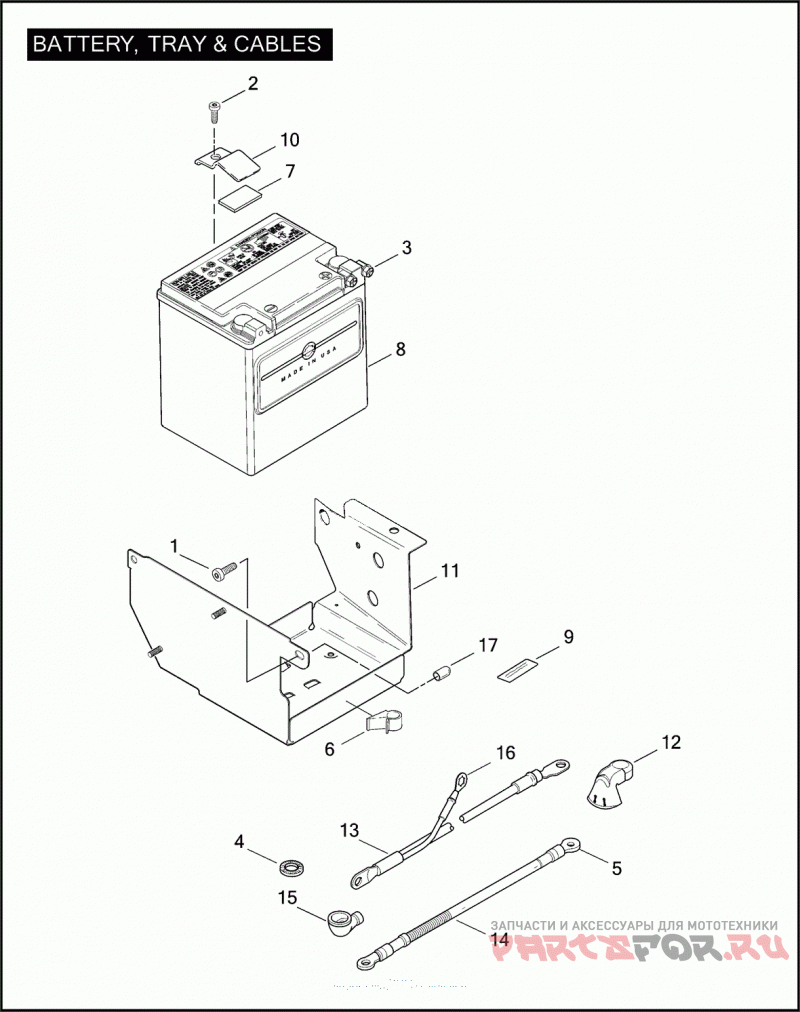

BATTERY, TRAY & CABLES

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2005)

Harley Davidson
#oem кодцена
1
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
2
3684
SCREW 5/16-18 X 1 TORX PAN HD.
3
4312C
SCREW M6 X 1.0 X 14MM, SEMS FLANGE HD. (STAINLESS)
4
7232
LOCKWASHER 5/16 INTERNAL TOOTH
5
9834
TERMINAL RING
6
10116
Зажим
7
66004-93
PAD BATTERY CLAMP
8
66010-97C
BATTERY W/ 4312C
9
15368-01A
WARNING LABEL
10
66185-97
CLAMP BATTERY
11
66281-02A
BATTERY TRAY ASSEMBLY
12
70003-04
COVER BATTERY TERMINAL
13
70267-04
CABLE ASSEMBLY STARTER TO GROUND, W/ 72242-94
14
70377-97A
CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 9834 & 70584-94
15
70584-94
BOOT BATTERY POSITIVE
16
72242-94
TERMINAL RING
17
89577-95
CAP THREAD PROTECTOR
