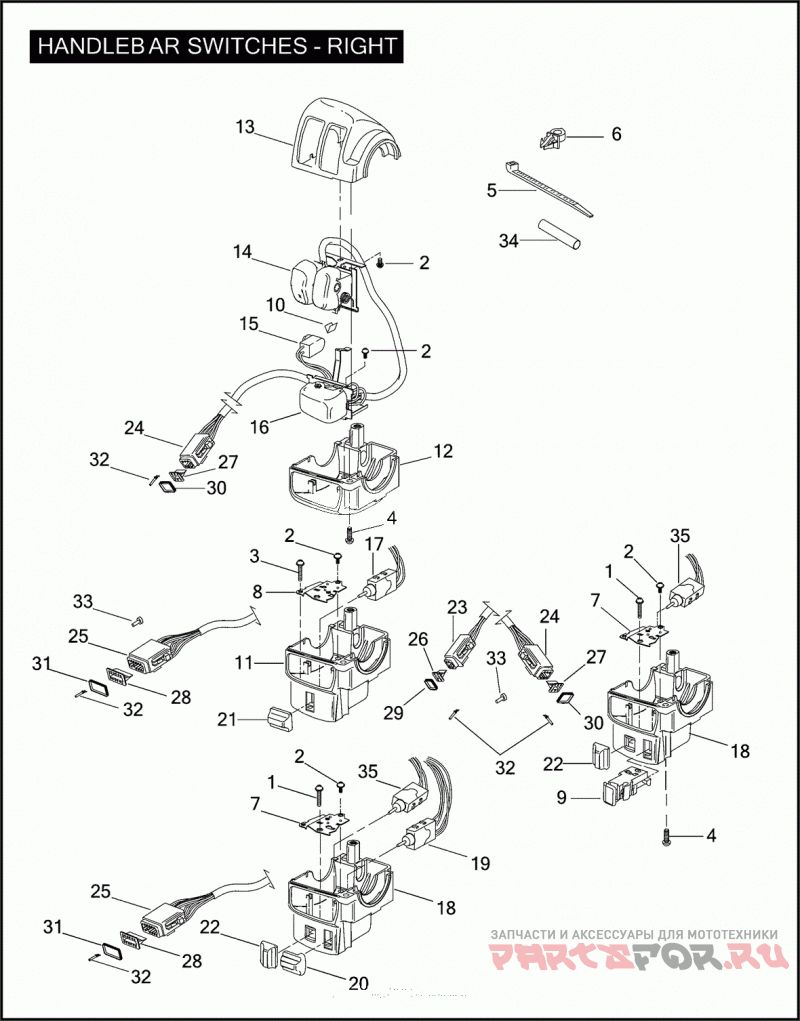

HANDLEBAR SWITCHES - RIGHT

Harley Davidson FLHTI 1FVW ELECTRA GLIDE STANDARD (2005)

HANDLEBAR SWITCHES - RIGHT

#

oem код

название

цена

2

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

3

SCREW NO. 6-32 X 5/8 PAN HD.

SCREW NO. 6-32 X 5/8 PAN HD.

4

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

5

CABLE STRAP

CABLE STRAP

8

BRACKET SWITCH, LOWER RIGHT

BRACKET SWITCH, LOWER RIGHT

10

V-CLIP

V-CLIP

11

HOUSING LOWER RIGHT

HOUSING LOWER RIGHT

13

HOUSING UPPER RIGHT

HOUSING UPPER RIGHT

14

SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94

SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94

15

STOPLAMP SWITCH KIT W/ 10181 & 72266-94

STOPLAMP SWITCH KIT W/ 10181 & 72266-94

16

SWITCH ASSEMBLY RIGHT TURN SIGNAL, W/ 10181 & 72266-94

SWITCH ASSEMBLY RIGHT TURN SIGNAL, W/ 10181 & 72266-94

17

SWITCH KIT MODE SELECT UP/DOWN, W/ 10181 & 72266-94

SWITCH KIT MODE SELECT UP/DOWN, W/ 10181 & 72266-94

21

KNOB MODE SELECT UP/DOWN

KNOB MODE SELECT UP/DOWN

25

PLUG 12-WAY SOCKET (BLACK)

PLUG 12-WAY SOCKET (BLACK)

28

SOCKET LOCK SECONDARY, 12-WAY

SOCKET LOCK SECONDARY, 12-WAY

31

FRONT SEAL 12-WAY PLUG

FRONT SEAL 12-WAY PLUG

32

TERMINAL SOCKET

TERMINAL SOCKET

33

SEAL PIN

SEAL PIN

34

HEAT SHRINK TUBE DUAL WALL, .3 INCH X 2 INCH

HEAT SHRINK TUBE DUAL WALL, .3 INCH X 2 INCH
