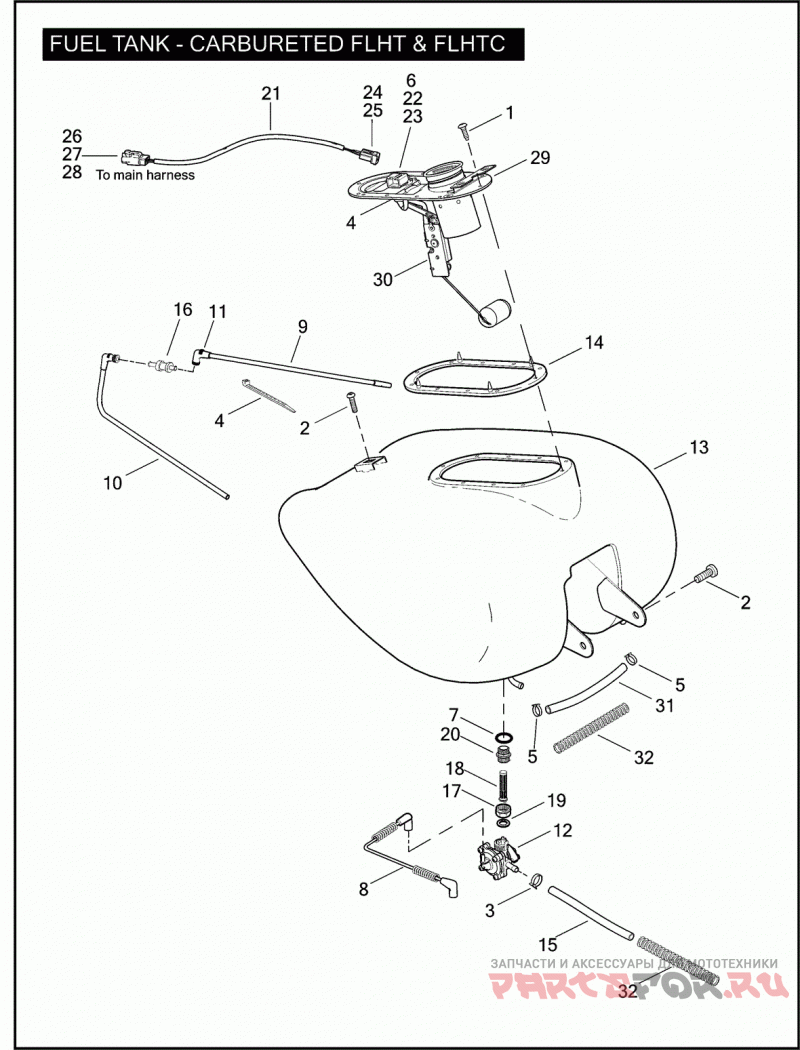

FUEL TANK - CARBURETED FLHT & FLHTC

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2005)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
3634
SCREW 5/16-18 X 1.0 SELF-TAPPING
3
10014
Зажим
4
10065
CABLE STRAP
5
10038A
Зажим
6
11380
Уплотнительное кольцо
7
11323A
Уплотнительное кольцо
8
26574-99
VACUUM HOSE
9
27201-97A
TUBE TANK TO VALVE
10
27291-97A
TUBE VALVE TO ATMOSPHERE
11
48469-00
Фитинг
12
61338-02
FUEL VALVE BODY
13
61356-03
FUEL TANK (PRIME)
14
61402-02
GASKET SENDING UNIT
15
61911-01
HOSE FUEL, PREFORMED
16
62150-85
VAPOR VALVE
17
62161-02
NUT FUEL VALVE
18
62170-02
FILTER FUEL VALVE
19
62172-02
GASKET FUEL VALVE
20
62842-00
ADAPTOR FUEL VALVE
21
70369-02
HARNESS FUEL TANK
22
72439-00B
CONNECTOR ASSEMBLY KIT 3-WAY
23
72458-00
O-RING & CLIP KIT W/ 11380
24
73153-96BK
SOCKET HOUSING 3-WAY (BLACK)
25
73191-96
SOCKET CONTACT
26
74113-98BK
SOCKET HOUSING 3-WAY (BLACK)
27
74153-98
SOCKET LOCK 3-WAY
28
74191-98
TERMINAL SOCKET
29
75040-03A
SENDING UNIT ASSEMBLY W/ 4, 6, 22, 23 & 30
30
75071-02
SENDING UNIT
31
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D., RUBBER, 25 FEET LONG
32
62555-95
INSULATOR 5/8 INCH I.D., NYLON, 8 FEET LONG
