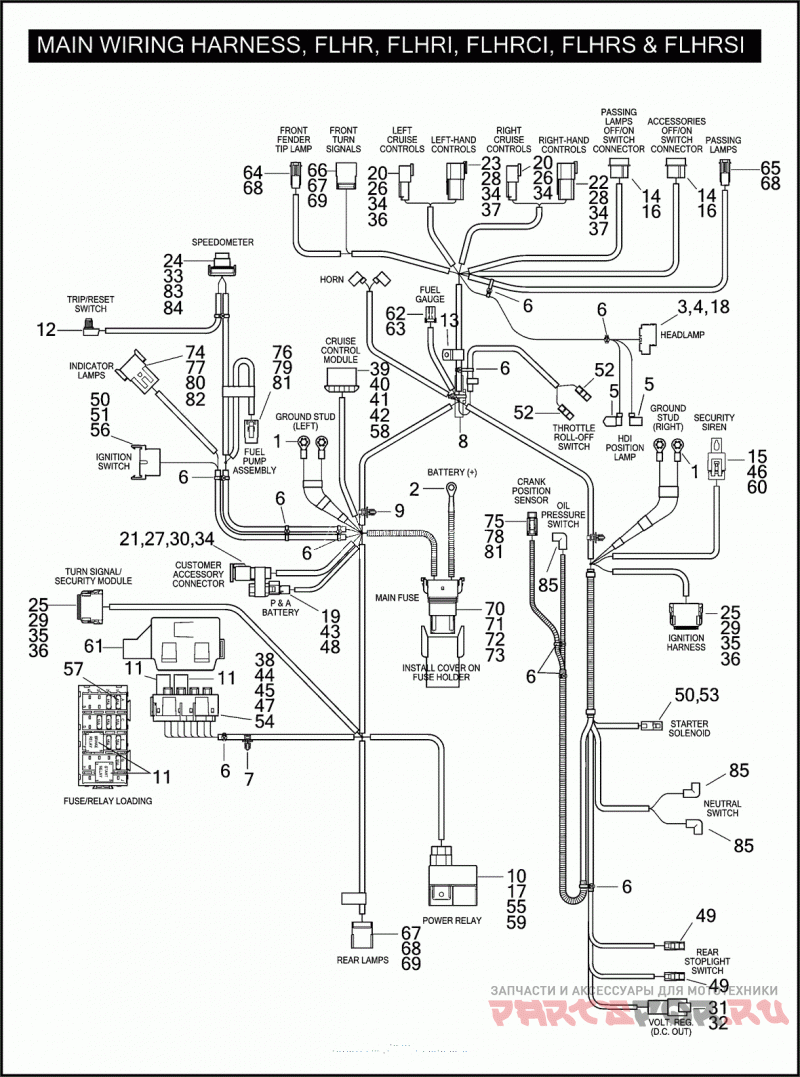

MAIN WIRING HARNESS, FLHR, FLHRI, FLHRCI, FLHRS & FLHRSI

Harley Davidson FLHRSI 1FYW ROAD KING CUSTOM (2005)

Harley Davidson
#oem кодцена
70245-04A
MAIN WIRING HARNESS
1
9825
TERMINAL 1/4 INCH, STUD
2
9842
TERMINAL 1/4 INCH RING, #10-12 GAUGE
3
9847
TERMINAL FEMALE SPADE, RIGHT
4
9848
TERMINAL FEMALE SPADE, LEFT
5
9898
TERMINAL INSULATED
6
10065
CABLE STRAP
7
10073
CABLE STRAP ROSEBUD MOUNT
8
10136
ANCHOR T-STUD
9
10177
CABLE STRAP TREE MOUNT
10
31504-91B
RELAY W/ DIODE
11
31586-07
RELAY
12
67488-04
Выключатель
13
69318-02
CABLE STRAP
14
70291-89
HOUSING 4-PIN
15
72033-93
SOCKET TERMINAL #16-20 GAUGE
16
72039-71A
PIN SINGLE SOCKET
17
72046-79
CONNECTOR SPADE TERMINALS
18
72056-92
HOUSING 3-PLACE, FEMALE
19
72100-04
HOUSING MALE, 1-WAY
20
72102-94BK
PIN HOUSING 2-WAY (BLACK)
21
72104-94BK
RECEPTACLE 4-WAY PIN
22
72106-94BK
PIN HOUSING 6-WAY (BLACK)
23
72106-94BK
PIN HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
24
72130-04
SOCKET HOUSING 12-WAY (BLACK)
25
72139-94GY
SOCKET HOUSING 12-WAY (GRAY)
26
72142-94
PIN LOCK SECONDARY, 2-WAY
27
72144-94
PIN LOCK SECONDARY, 4-WAY
28
72146-94
PIN LOCK SECONDARY, 6-WAY
29
72159-94
SOCKET LOCK 1-WAY
30
72164-94A
WEATHER PLUG 4-WAY
31
72170-01
TERMINAL PIN #8-10 GAUGE
32
72182-01
PIN HOUSING 1-WAY
33
72189-04
SEAL PIN
34
72190-94
TERMINAL PIN
35
72191-94
TERMINAL SOCKET
36
72195-94
SEAL PIN
37
72199-94
CONNECTOR ANCHOR
38
72204-04
FUSE/RELAY BLOCK
39
72211-94
CONNECTOR 10-WAY
40
72212-94
LOCK SECONDARY
40
70245-04A
MAIN WIRING HARNESS (CONTINUED)
41
72213-94
TERMINAL FEMALE, #18-20 WIRE
42
72214-94
SEAL CABLE
43
72260-04
HOUSING FEMALE
44
72265-04
SECONDARY LOCK FUSE BLOCK
45
72279-04
TERMINAL FEMALE
46
72280-95
SOCKET HOUSING 3-WAY
47
72286-04
TERMINAL FEMALE
48
72289-04
TERMINAL FEMALE, #12 GAUGE
49
72290-94
TERMINAL 1/4 INCH FEMALE
50
72291-94
TERMINAL FEMALE SPADE, #14-16 GAUGE
51
72292-94
TERMINAL FEMALE, 12 GAUGE
52
72294-94BK
TERMINAL INSULATED, FEMALE
53
72295-94
CONNECTOR STARTER
54
72309-04
TERMINAL #16-18 GAUGE
54
72314-01
FUSE MAXI, 40 AMP (NOT ILLUSTRATED) (NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS 70245-04A.)
55
72325-97
RELAY HOLDER
56
72327-03A
CONNECTOR 3-WAY
57
72330-95
FUSE 15 AMP (BLUE)
58
72377-02
BOOT CRUISE CONTROL
59
72429-00
TERMINAL FEMALE
60
72516-01
Пылезащитный колпачок
61
72536-05
COVER FUSE/RELAY BLOCK
62
72914-01BK
SOCKET HOUSING 4-WAY
63
72991-01
SOCKET TERMINAL #14-20 GAUGE
64
73102-96BK
PIN HOUSING (BLACK)
65
73102-96WE
PIN HOUSING (WHITE)
66
73106-96BK
PIN HOUSING 6-PLACE (BLACK)
67
73108-96BK
PIN HOUSING 8-PLACE (BLACK)
68
73190-96
TERMINAL PIN, #20-16 GAUGE
69
73198-96
Фиксатор
70
73301-04
HOUSING FEMALE 2-WAY
70
73302-04
COVER MAXI-FUSE (NOT ILLUSTRATED) (NOTE: COVER IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS 70245-04A.)
71
73303-04
SECONDARY LOCK FEMALE, 2-WAY
72
73304-04
TERMINAL FEMALE, #10 GAUGE
73
73305-04
WIRE SEAL #10 GAUGE (BLUE)
74
74108-98BK
PIN HOUSING 8-WAY (BLACK)
75
74112-98BK
SOCKET HOUSING 2-WAY (BLACK)
76
74113-98BK
SOCKET HOUSING 3-WAY (BLACK)
77
74148-98
SECONDARY LOCK 8-WAY, PIN
78
74152-98
SOCKET LOCK SECONDARY, 2-WAY
79
74153-98
SOCKET LOCK 3-WAY
80
74190-98
PIN TERMINAL
81
74191-98
SOCKET TERMINAL
82
74195-98
SEAL PIN
83
74196-04
TERMINAL SOCKET #20 GAUGE
84
74197-04
SOCKET LOCK SECONDARY, 12-WAY
85
72405-98BK
WIRE ASSEMBLY PUSH-ON, RIGHT ANGLE MOLDED, 65-1/2 IN. LENGTH (2 - NEUTRAL SWITCH, 1 - OIL PRESSURE SWITCH
