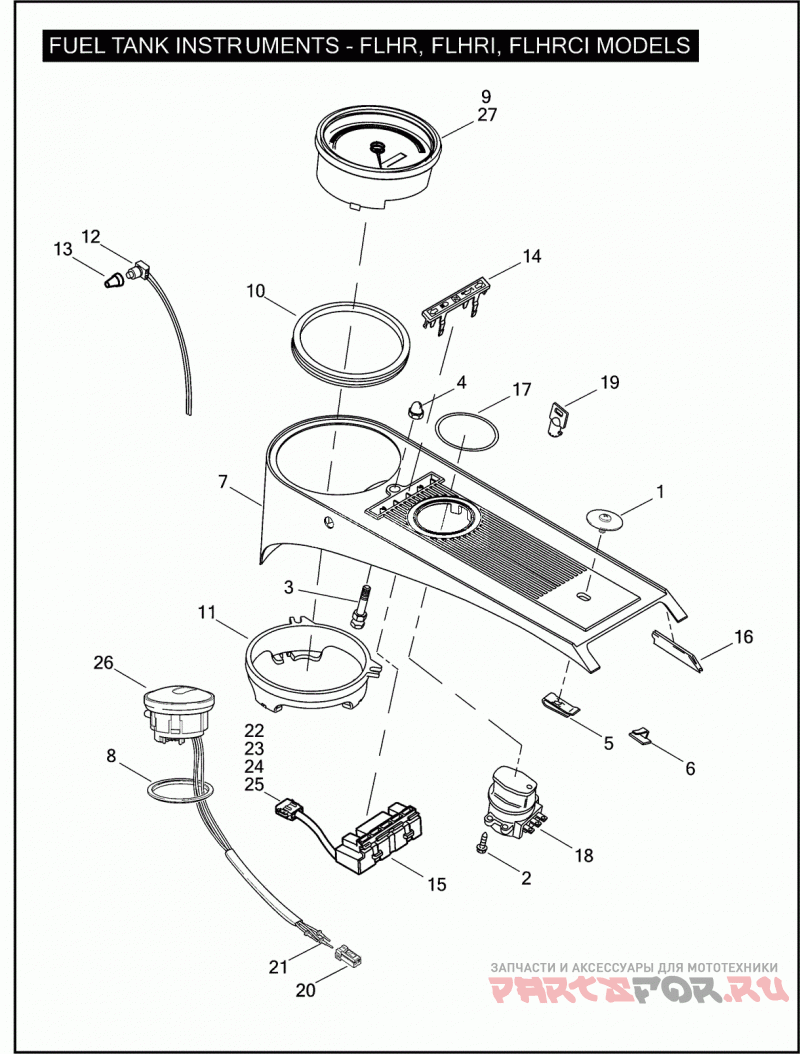

FUEL TANK INSTRUMENTS - FLHR, FLHRI, FLHRCI MODELS

Harley Davidson FLHRI 1FBW ROAD KING (2005)

Harley Davidson
#oem кодцена
1
1069
Винт
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
3317
Шпилька
4
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
5
7964
STAKED NUT J-TYPE
6
10103
CLIP UNDER INSTRUMENT PANEL
6
53571-03A
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH, FORK LOCK & SADDLEBAG LOCK
7
60960-99
INSTRUMENT PANEL
8
61192-96A
GASKET FUEL GAUGE
8
62519-03
HOSE SHIELD 1/4 INCH I.D., 5.00 INCH LONG, FUEL GAUGE WIRES (NOT ILLUSTRATED)
9
67033-04B
SPEEDOMETER ASSEMBLY MPH
10
67190-89
SEAL SPEEDOMETER
11
67271-04A
BACK CLAMP
12
67854-98
SWITCH ODOMETER RESET
13
67880-94
BOOT ODOMETER RESET SWITCH
14
68112-99A
INDICATOR BEZEL
15
68113-99C
HOUSING ASSEMBLY W/ LED LIGHTS, ELECTRICAL CONNECTOR & BEZEL
16
71001-94
Планка
17
71307-94A
NAMEPLATE IGNITION SWITCH
18
71313-96A
IGNITION SWITCH W/ KEY (SPECIFY KEY CODE)
19
61081-92
COVER KEY HEAD SET (NOT ILLUSTRATED)
20
72904-01BK
PIN HOUSING 4-WAY
21
72990-01
PIN TERMINAL
22
74118-98BK
SOCKET HOUSING 8-WAY, (BLACK)
23
74158-98
SECONDARY LOCK 8-WAY SOCKET HOUSING
24
74193-98
SOCKET TERMINAL
25
74195-98
SEAL PIN
26
75053-01B
FUEL GAUGE WITHOUT LED
27
67197-04B
SPEEDOMETER KPH (HDI)
27
67196-04B
SPEEDOMETER MPH/KPH (HDI)
