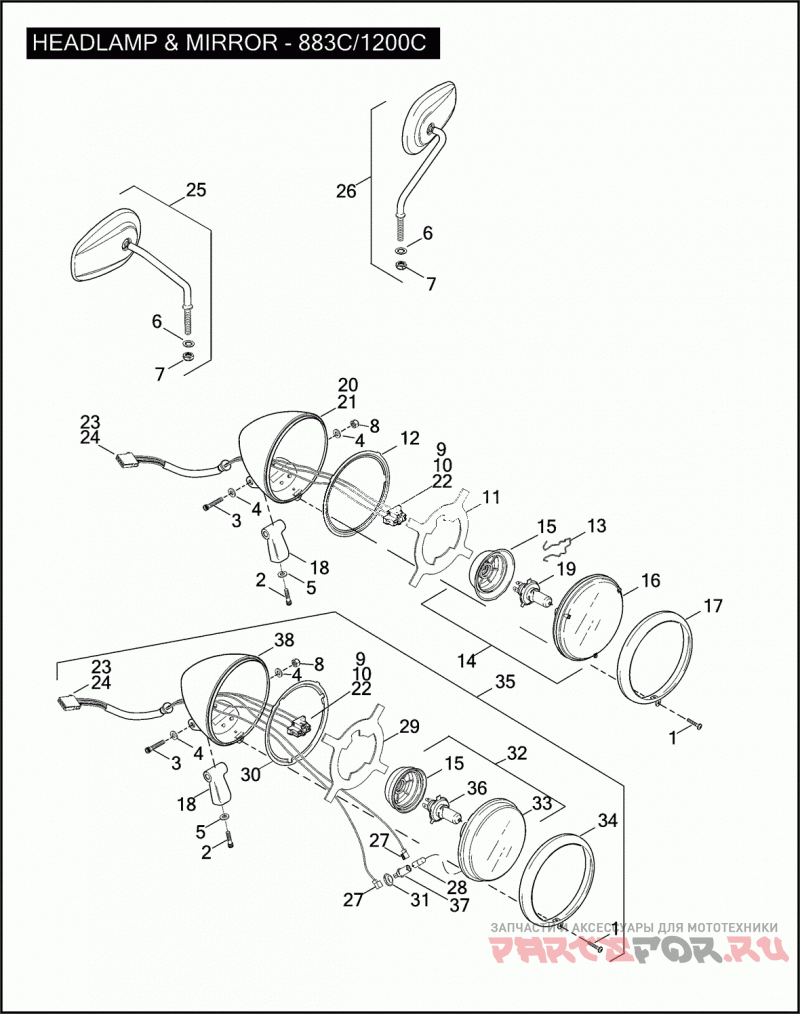

HEADLAMP & MIRROR - 883C/1200C

Harley Davidson XL883C 4CJM SPORTSTER 883 CUSTOM (2004)

Harley Davidson
#oem кодцена
1
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
2
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
3
4420
SCREW 3/8-16 X 2.75 HEX HD. (GRADE 5)
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7045
LOCKWASHER 3/8 HIGH COLLAR
6
7127
LOCKWASHER 5/16 INTERNAL TOOTH
7
7727
LOCKNUT 5/16-24 X 1/4 X 1/2
8
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
9
9847
CONNECTOR RIGHT
10
9848
CONNECTOR LEFT
11
67601-94A
GASKET HEADLAMP
12
67603-94A
RETAINING RING HEADLAMP
13
67685-92
CLIP BURNER RETAINER
14
67698-81D
HEADLAMP ASSEMBLY W/ 67685-92, 67705-92, 67757-92 & 68329-03 (DOMESTIC)
15
67705-92
BOOT HEADLAMP CONNECTOR
16
67757-92
HOUSING HEADLAMP, W/ 67685-92 (USE 67698-81D)
17
67894-93A
BEZEL ASSEMBLY
18
67919-96
MOUNT HEADLAMP
19
68329-03
BULB
20
69670-04A
HEADLAMP SHELL ASSEMBLY W/ 9847, 9848, 69682-04A, 72056-92, 73154-96BK & 73191-96 (DOMESTIC)
21
69682-04B
HEADLAMP SHELL ASSEMBLY
22
72056-92
HOUSING FEMALE
23
73154-96BK
HOUSING SOCKET
24
73191-96
Патрон
25
91846-03B
MIRROR KIT RIGHT
26
91848-03B
MIRROR KIT LEFT
27
9898
TERMINAL FLAG
28
53438-92
BULB
29
67602-94
GASKET HEADLAMP
30
67604-94
RETAINING RING HEADLAMP (HDI)
31
67691-92
Уплотнитель резиновый
32
67763-92A
HEADLAMP ASSEMBLY, RIGHT DIP, W/ 67691-92, 67705-92, 68329-03 & HOUSING
32
67781-92A
HEADLAMP ASSEMBLY, LEFT DIP, W/ 67691-92, 67697-81, 67705-92, 68329-03 & HOUSING
34
67790-93A
BEZEL
35
68149-04
HEADLAMP ASSEMBLY LEFT DIP (HDI)
35
68159-04
HEADLAMP ASSEMBLY RIGHT DIP (HDI) (ORDER COMPONENTS)
36
68329-03
BULB
37
68650-92
SOCKET BULB, 2 SPADE
38
69681-04A
HEADLAMP SHELL ASSEMBLY W/ 9847, 9848, 9898, 69682-04, 72056-92, 73154-96BK & 73191-96 (HDI)
