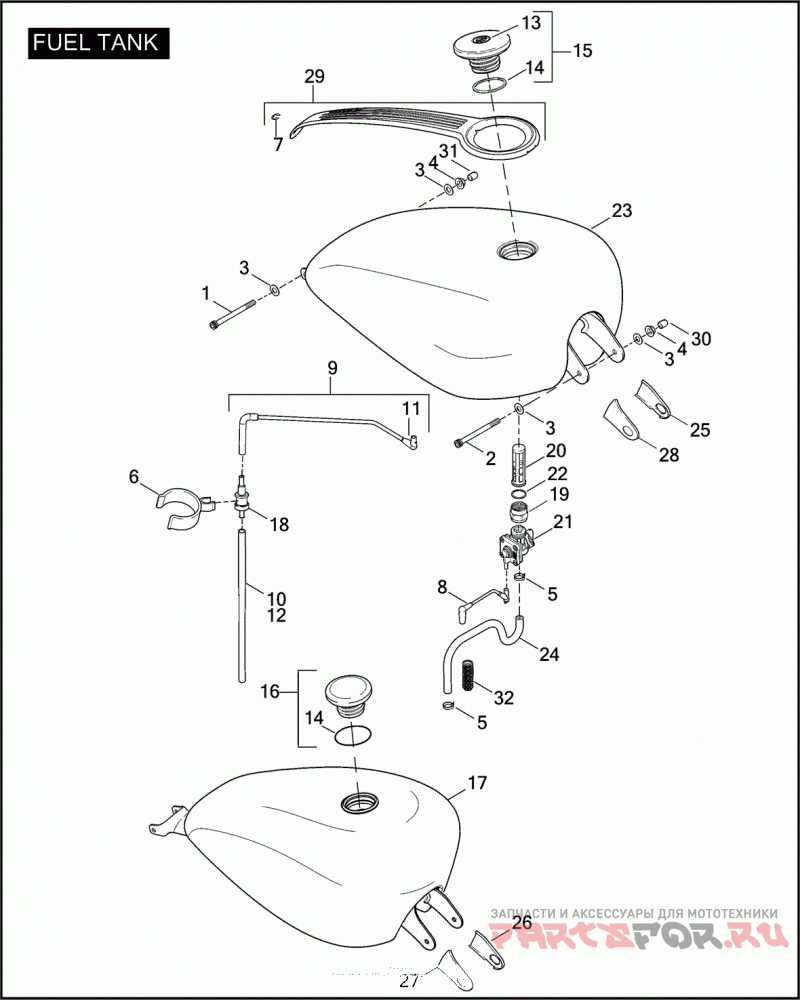

Топливный бак

Harley Davidson XL883C 4CJM SPORTSTER 883 CUSTOM (2004)

Harley Davidson
#oem кодцена
1
4758A
SCREW 5/16-18 X 3.48 SOCKET HD. (GRADE 8)
2
4771
SCREW 5/16-18 X 4-1/4 SOCKET HD. (GRADE 5)
3
6702
WASHER 5/16 X 11/16 X 1/16
4
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
5
10014
Зажим
6
10254
CLIP VAPOR VALVE MOUNTING
8
26588-04
VACUUM HOSE ASSEMBLY
9
27067-04
VENTLINE TANK-TO-VALVE, W/ 27250-96A
10
27096-04A
HOSE VAPOR VALVE-TO-ATMOSPHERE
11
27250-96B
CONNECTOR 90 DEGREE
12
28911-04A
HOSE VAPOR VALVE-TO-EVAPORATIVE CANISTER (CALIFORNIA)
13
52494-04
FUEL CAP MEDALLION
14
61109-85D
GASKET FUEL CAP
15
61260-04A
FUEL CAP VENTED, W/ 52494-04 & 61109-85D
18
62150-85
VAPOR VALVE
19
62161-02
NUT FUEL VALVE
20
62166-02
FILTER FUEL VALVE
21
62169-02A
FUEL VALVE
22
62172-02
GASKET FUEL VALVE
23
62213-04
FUEL TANK ASSEMBLY (PRIME)
24
62347-04
FUEL HOSE PREFORMED
25
70903-04
TRIM LEFT FRONT
28
70919-04
TRIM RIGHT FRONT
30
89579-91
CAP PROTECTIVE
31
89586-04
CAP PROTECTIVE
32
62555-95
INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length.
