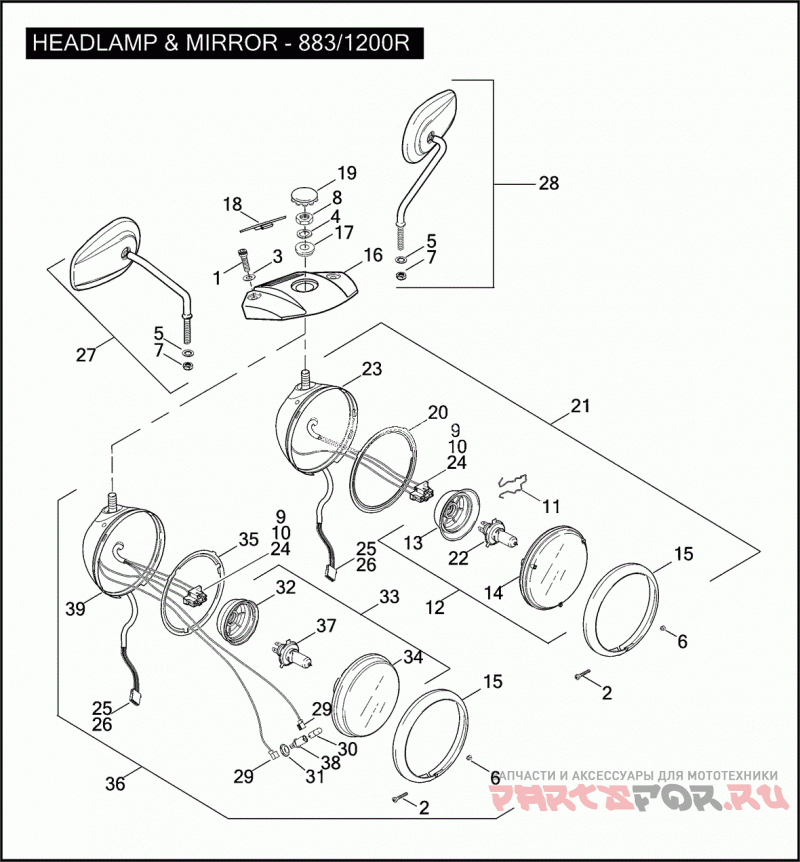

HEADLAMP & MIRROR - 883/1200R

Harley Davidson XL883 4CAM SPORTSTER 883 (2004)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
6702
WASHER 5/16 X 11/16 X 1/16
4
7068
LOCKWASHER 1/2
5
7127
LOCKWASHER 5/16 INTERNAL TOOTH
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
7727
LOCKNUT 5/16-24 X 1/4 X 1/2
8
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
9
9847
CONNECTOR RIGHT
10
9848
CONNECTOR LEFT
11
67685-92
CLIP BURNER RETAINER
12
67698-81D
HEADLAMP ASSEMBLY W/ 67685-92, 67705-92, 67757-92 & 68329-03 (DOMESTIC)
13
67705-92
BOOT HEADLAMP CONNECTOR
14
67757-92
HOUSING HEADLAMP (USE 67698-81D)
15
67790-93A
BEZEL
16
67805-92
BRACKET HEADLAMP (POLISHED)
17
67815-59A
WASHER HEADLAMP
18
67834-83
TRIM HEADLAMP BRACKET
19
67865-89
Заглушка
20
67883-04A
RING HEADLAMP ADAPTER
21
68116-04
HEADLAMP ASSEMBLY (DOMESTIC)
22
68329-03
BULB
23
69628-04
HEADLAMP SHELL ASSEMBLY W/ 9847, 9848, 72056-92, 73154-96BK & 73191-96 (DOMESTIC)
24
72056-92
HOUSING FEMALE
25
73191-96
Патрон
26
73154-96BK
HOUSING SOCKET
27
91846-03B
MIRROR KIT RIGHT, LONG
28
91848-03B
MIRROR KIT LEFT, LONG
29
9898
TERMINAL FLAG
30
53438-92
BULB
31
67691-92
Уплотнитель резиновый
32
67705-92
BOOT CONNECTOR, HEADLAMP
33
67763-92A
HEADLAMP ASSEMBLY RIGHT, W/ 67691-92, 67705-92, 67764-92 & 68329-03
33
67781-92A
HEADLAMP ASSEMBLY LEFT, W/ 67691-92, 67705-92, 67787-92 & 68329-03
35
67877-02
RING HEADLAMP ADAPTER
36
68117-04
HEADLAMP ASSEMBLY LEFT SIDE DIP (HDI)
36
68118-04
HEADLAMP ASSEMBLY RIGHT SIDE DIP (HDI)
37
68329-03
BULB
38
68650-92
SOCKET BULB, 2 SPADE
39
69669-04
HEADLAMP SHELL ASSEMBLY W/ 72056-92, 73154-96BK, 73191-96, 9847, 9848, 9898
