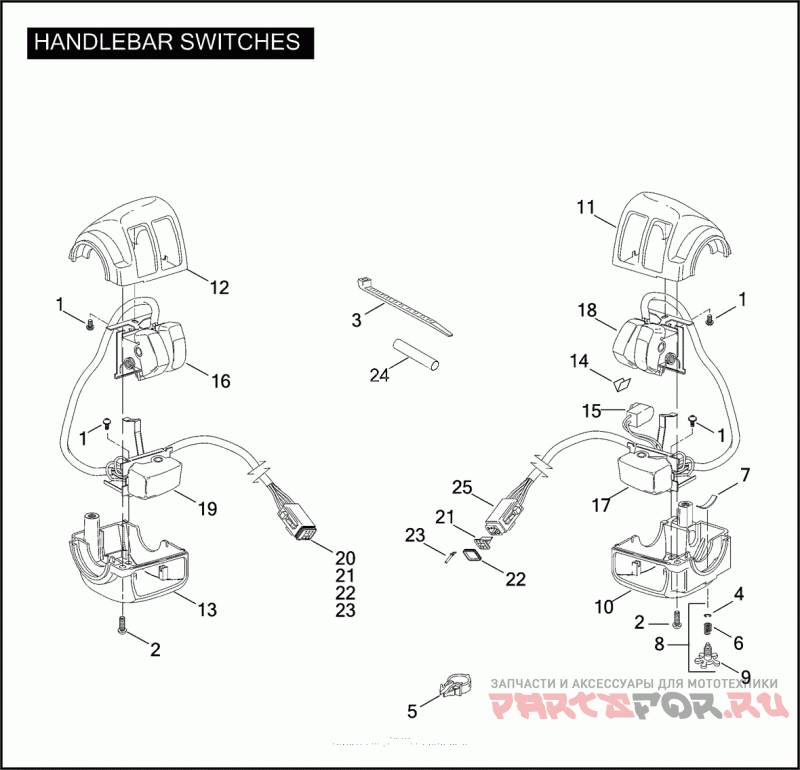

HANDLEBAR SWITCHES

Harley Davidson XL883 4CAM SPORTSTER 883 (2004)

Harley Davidson
#oem кодцена
1
2955
Деталь SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
2
3658
Деталь SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
3
10181
Деталь CABLE STRAP (AS REQUIRED)
4
11155
Стопорное кольцо
5
70345-84
Деталь RETAINER WIRING HARNESS
6
56394-74
Деталь SPRING THROTTLE ADJUSTING SCREW
7
56396-74A
Деталь PAD THROTTLE ADJUSTING
8
56397-74C
Деталь KIT THROTTLE ADJUSTING SCREW, W/ 4, 6 & 9
9
56402-83A
Регулировочный Винт
10
71563-96
Деталь HOUSING LOWER RIGHT
11
71564-96
Деталь HOUSING UPPER RIGHT
12
71567-96
Деталь HOUSING UPPER LEFT
13
71568-96A
Деталь HOUSING LOWER LEFT
14
71587-04
Зажим
15
71621-08
Деталь STOPLIGHT SWITCH KIT
16
71682-06A
Деталь SWITCH KIT DIMMER & HORN, W/ 3 & 24
17
71683-06A
Деталь SWITCH KIT RIGHT DIRECTIONAL, W/ 3 & 24
18
71684-06A
Деталь SWITCH KIT ENGINE STOP & START, W/ 3 & 24
19
71685-06A
Деталь SWITCH KIT LEFT DIRECTIONAL, W/ 3 & 24
20
72116-94BK
Деталь SOCKET HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
21
72156-94
Деталь SECONDARY LOCK 6-WAY
22
72176-94
Деталь SEAL FRONT, 6-WAY PLUG
23
72191-94
Деталь TERMINAL SOCKET (AS REQUIRED)
24
72266-94
Деталь SHRINK TUBE (AS REQUIRED)
25
72116-94BK
Деталь SOCKET HOUSING 6-WAY (BLACK)
