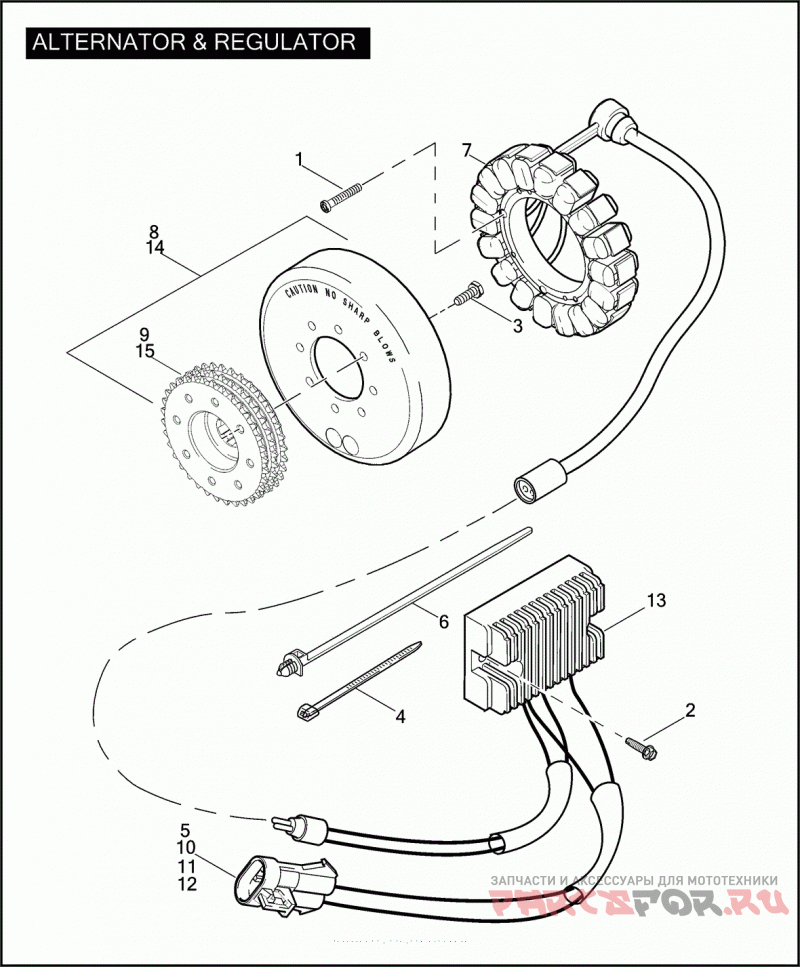

ALTERNATOR & REGULATOR

Harley Davidson XL1200C 1CGP SPORTSTER 1200 CUSTOM (2004)

#

oem код

название

цена

1

3029

SCREW NO. 10-24 X 1 TORX HD., W/ADHESIVE

2

4329

SCREW 1/4-20 X 3/4 HEX HD. W/WASHER, SELF-TAPPING

3

4751

SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC)

4

10065

STRAP CABLE

5

10147

CLIP CONNECTOR

6

10177

STRAP CABLE PLUG-IN

7

29967-89C

Статор

7

29984-06

STATOR PLUG WIRE COVER (NOT SHOWN)

8

32494-04B

ROTOR SPROCKET ASSEMBLY W/ 40290-04A & 4751

9

40290-04A

SPROCKET TRIPLE ROW, 38T

10

72233-94

CONNECTOR 2-WAY PIN, BLACK

11

72235-94

TERMINAL PIN, 14-16 GAUGE

12

72237-94

SEAL CABLE

13

74523-04

REGULATOR VOLTAGE, W/ 10065, 10147, 10177, 72233-94, 72235-94 & 72237-94
