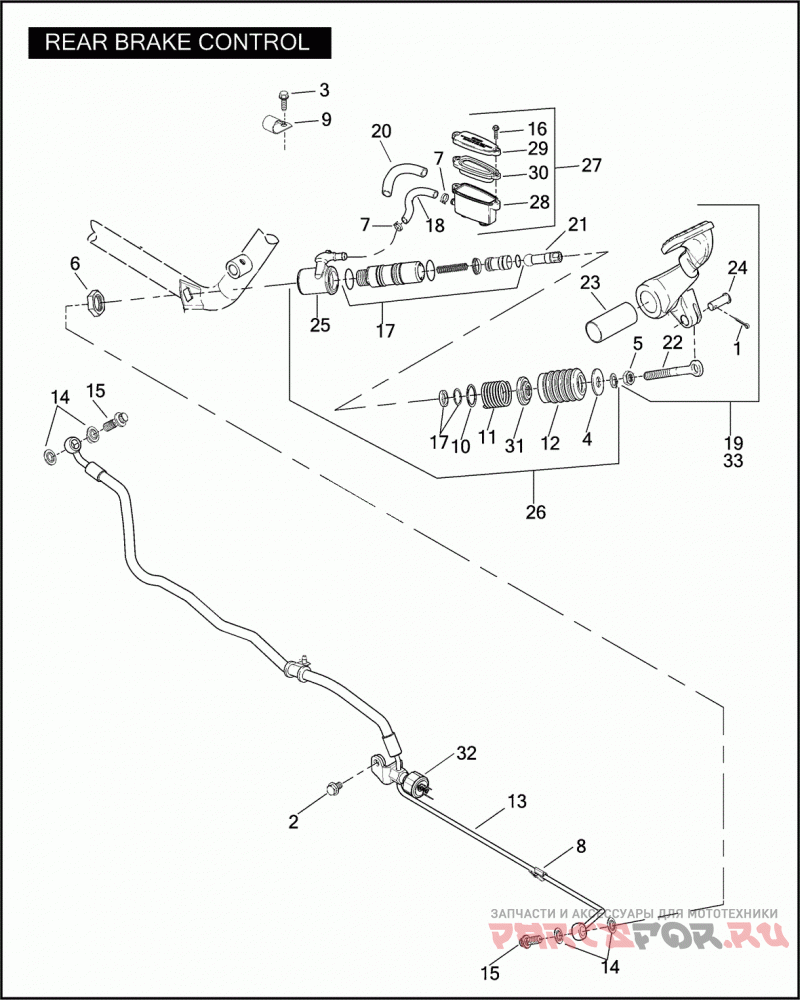

Тормозной цилиндр задний

Harley Davidson VRSCB 1HBZ VRSCB V-ROD (2004)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
3
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
4
6366
WASHER 1/2 X 1-1/4 X 3/32
5
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
6
7951
JAMNUT 3/4-16 X 17/64 X 1-7/64 (GRADE 2)
6
9898
TERMINAL FLAG (USED W/ 72023-51C) (NOT ILLUSTRATED)
6
9907
TERMINAL WIRE (USED W/ 72023-51D) (NOT ILLUSTRATED)
7
10038A
Зажим
8
10184
Зажим
9
10231
Зажим
10
40918-87
Стопорное кольцо
11
40920-87
SPRING BRAKE RETURN
12
40922-87A
DUST BOOT
13
40953-01
BRAKE LINE REAR
14
41731-01
Прокладка
15
41747-82A
Болт
16
42375-87
Винт
17
42382-87E
REPAIR KIT master cylinder
18
42397-01
HOSE MASTER CYLINDER REAR
19
42400-01A
BRAKE PEDAL ASSEMBLY W/ 1, 2, 22, 23 & 24
20
42409-01
CONDUIT
21
42448-87
PUSH ROD
22
42682-01
ROD END
23
42569-03
BUSHING BRAKE PEDAL
24
42460-80B
CLEVIS PIN
25
42471-01A
HOUSING CARTRIDGE
26
42585-01A
MSTR CYL ASY,RR
27
42586-01
RESERVOIR ASSEMBLY MASTER CYLINDER
28
43914-01
RESERVOIR BODY
29
43915-01
COVER RESERVOIR
30
43917-01
GASKET MASTER CYLINDER RESERVOIR
31
44126-87
RETAINER BRAKE RETURN SPRING
32
72023-51E
SWITCH KIT stop lamp
33
42699-04
BRAKE PEDAL ASSEMBLY W/ 1, 2, 22, 23 & 24 (JAPAN)
