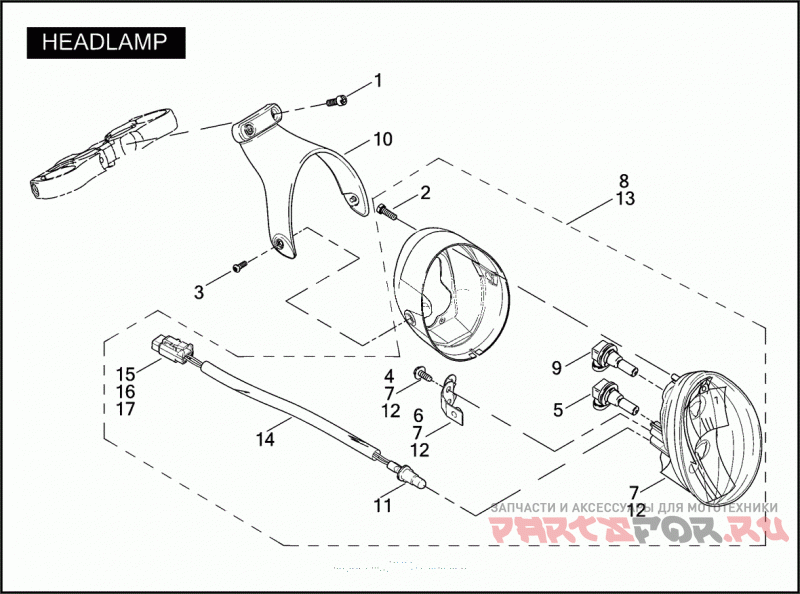

Фара

Harley Davidson VRSCA 1HAZ VRSCA V-ROD (2004)

Harley Davidson
#oem кодцена
1
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
2
3753M
SCREW M3 X 1.06 CROSS RECESSS PAN HD.
3
3832M
SCREW M6 X 1.0 X 20 HEX BUTTON HD.
4
3853M
SCREW M5 X 1.59 X1.30 HEX FLAT HD., SELF-TAPPING
5
67717-01
BULB HIGH BEAM
6
68807-01
BRACKET REFLECTOR MOUNTING
7
68254-01
REFLECTOR ASSEMBLY HEADLAMP, W/ 3853 & 68807-01
8
68880-01
HEADLAMP ASSEMBLY W/ 2, 5, 7, 9 & HEADLAMP BUCKET (DOMESTIC, CALIFORNIA, CANADA)
9
68881-01
BULB LOW BEAM
10
68884-01
BRACKET HEADLAMP MOUNTING (CHROME)
11
53436-97
BULB POSITION LAMP, W5W (HDI)
12
68255-01
REFLECTOR ASSEMBLY HEADLAMP - RIGHT DIP, W/ 3853 & 68807-01 (HDI)
12
68256-01
REFLECTOR ASSEMBLY HEADLAMP - LEFT DIP, W/ 3853 & 68807-01 (HDI)
13
68882-01A
HEADLAMP ASSEMBLY LEFT DIP, W/ 3573M, 67717-01, 68256-01, 68881-01 & HEADLAMP BUCKET (ENGLAND, AUSTRALIA, JAPAN)
13
68883-01A
HEADLAMP ASSEMBLY RIGHT DIP, W/ 3573M, 67717-01, 68255-01, 68881-01 & HEADLAMP BUCKET (HDI)
14
70004-01
SOCKET HARNESS POSITION LAMP, W/ 11, 15, 16 & 17 (HDI)
15
74112-98BK
SOCKET HOUSING 2-WAY (BLACK) (HDI)
16
74152-98
SOCKET LOCK 2-WAY (HDI)
17
74191-98
TERMINAL SOCKET (HDI)
