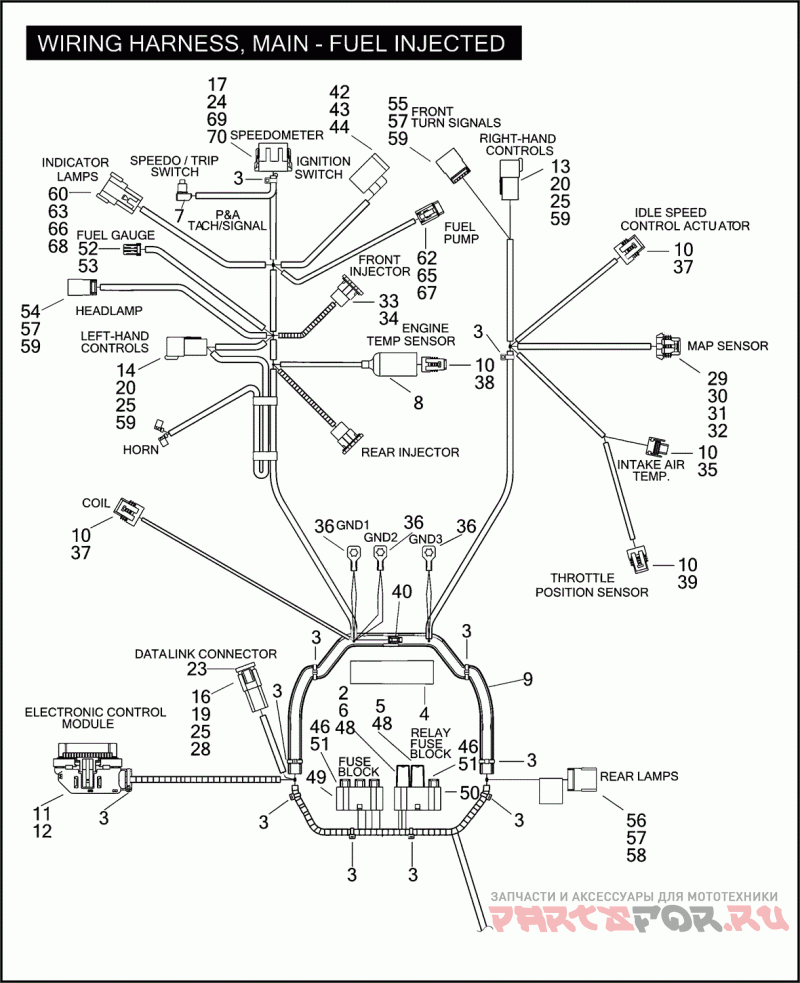

WIRING HARNESS, MAIN - FUEL INJECTED

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
70431-04A
Деталь MAIN WIRING HARNESS
1
9840
Деталь TERMINAL RING TYPE
2
9937
Деталь TERMINAL FEMALE, #14-16 WIRE
2
10006
Деталь CABLE STRAP (NOT ILLUSTRATED)
3
10065
Деталь CABLE STRAP
4
27667-04
Деталь FUSE BLOCK COVER
5
31511-01B
Деталь RELAY (BLACK)
6
31522-00C
Деталь RELAY (GRAY)
7
67488-04
Деталь SWITCH RESET
8
70598-99
Деталь BOOT ENGINE TEMPERATURE SENSOR
9
70974-00B
Деталь SHIELD LOOM
10
72033-93
Деталь TERMINAL SOCKET
11
72076-00
Деталь SOCKET TERMINAL #18 WIRE
12
72077-00
Деталь SEAL PIN
13
72106-94BK
Деталь PIN HOUSING 6-WAY PIN (BLACK)
14
72106-94BK
Деталь PIN HOUSING 6-WAY PIN (REPLACES GRAY CONNECTOR) (BLACK)
15
72113-94BK
Деталь SOCKET HOUSING 3-WAY (BLACK)
16
72124-94GY
Деталь PIN HOUSING 4-WAY (GRAY)
17
72130-04
Деталь SOCKET HOUSING 12-WAY (BLACK)
18
72139-94GY
Деталь SOCKET HOUSING 12-WAY (GRAY)
19
72144-94
Деталь SECONDARY LOCK 4-WAY
20
72146-94
Деталь SECONDARY LOCK 6-WAY
21
72153-94
Деталь SECONDARY LOCK 3-WAY
22
72159-94
Деталь SECONDARY LOCK 12-WAY
23
72164-94A
Деталь PLUG 4-WAY CONNECTOR
24
72189-04
Деталь SEAL PIN
25
72190-94
Деталь TERMINAL PIN
26
72191-94
Деталь TERMINAL SOCKET
27
72195-94
Деталь SEAL PIN
28
72199-94
Деталь ANCHOR T-STUD
29
72213-94
Деталь TERMINAL SOCKET
30
72214-94
Деталь CABLE SEAL #14-16 WIRE
31
72230-98
Деталь SOCKET HOUSING 3-WAY
32
72231-98
Деталь SECONDARY LOCK 3-WAY
33
72244-95
Деталь SOCKET HOUSING 2-WAY
34
72245-95
Деталь SOCKET TERMINAL #16-18 WIRE
35
72247-95
Деталь SOCKET HOUSING 2-WAY
36
72254-94
Деталь TERMINAL 1/4 INCH RING
37
72263-95
Деталь SOCKET HOUSING 4-WAY
38
72273-95
Деталь SOCKET HOUSING 2-WAY
39
72280-95
Деталь SOCKET HOUSING (BLACK)
40
72289-04
Деталь TERMINAL FEMALE
41
72290-94
Деталь TERMINAL FEMALE
42
72291-94
Деталь TERMINAL FEMALE SPADE, 14-16 GAUGE
