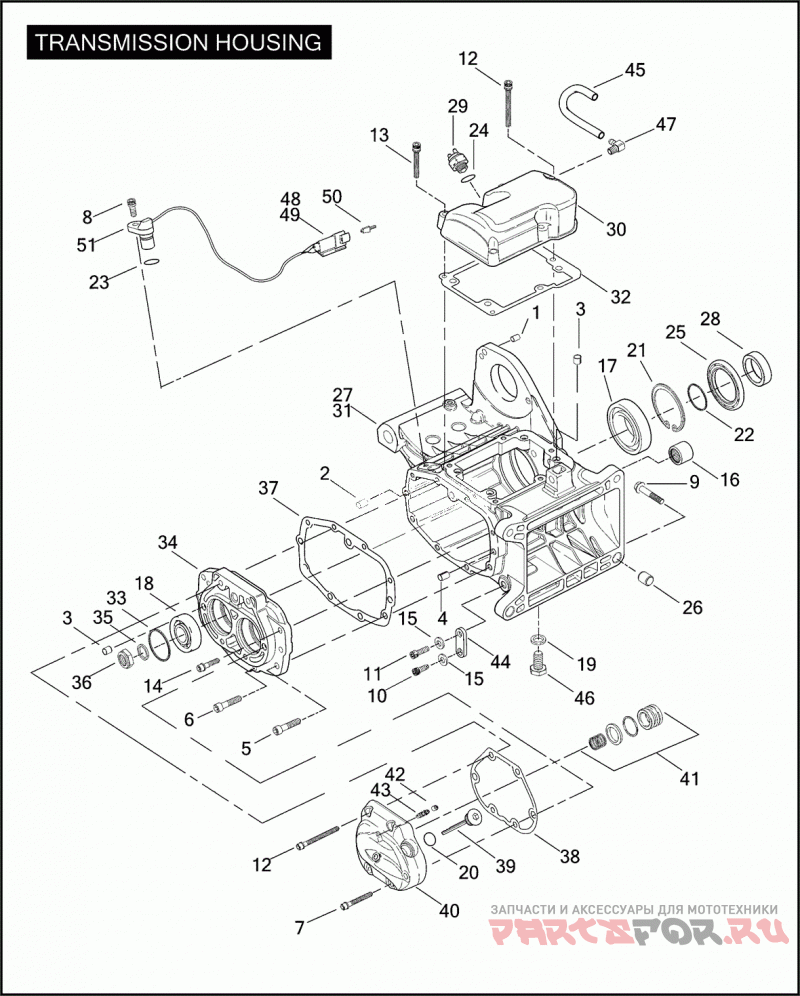

TRANSMISSION HOUSING (2 0F 2)

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
27
33054-04
TRANSMISSION ASSEMBLY
28
33344-94
SPACER SPROCKET
29
33904-00A
SWITCH NEUTRAL INDICATOR, W/ O-RING
30
34541-00
COVER UPPER
31
34774-00A
TRANSMISSION HOUSING ASSEMBLY (SILVER PAINTED)
32
34904-86D
GASKET UPPER COVER
33
35087-99A
RETAINING RING BEARING
34
35251-93C
BEARING HOUSING ASSEMBLY W/ BEARINGS & RETAINING RINGS (BLACK)
35
35076-79
Проставка
36
35078-79
NUT 3/4-16 X .391 X 1
37
35653-98A
GASKET BEARING HOUSING
38
36801-87C
GASKET RIGHT SIDE COVER
39
37075-87
FILLER PLUG (CHROME)
40
37121-03A
CLUTCH RELEASE COVER (CHROME)
41
37963-02
PISTON KIT HYDRAULIC CLUTCH
42
43817-02
CAP BLEEDER SCREW
43
44613-02
SCREW BLEEDER
44
48052-00A
BRACKET TRANSMISSION MOUNTING, RIGHT
45
42533-91A
VENT HOSE
46
60328-98B
DRAIN PLUG W/ O-RING
47
62375-57A
FITTING UPPER COVER
48
72143-94
SECONDARY LOCK 3-WAY RECEPTACLE
49
72163-94BK
RECEPTACLE 3-WAY PIN
50
72190-94
TERMINAL PIN
51
74430-00D
SENSOR SPEEDOMETER, W/ 11289A, 72143-94, 72163-94BK & 72190-94
