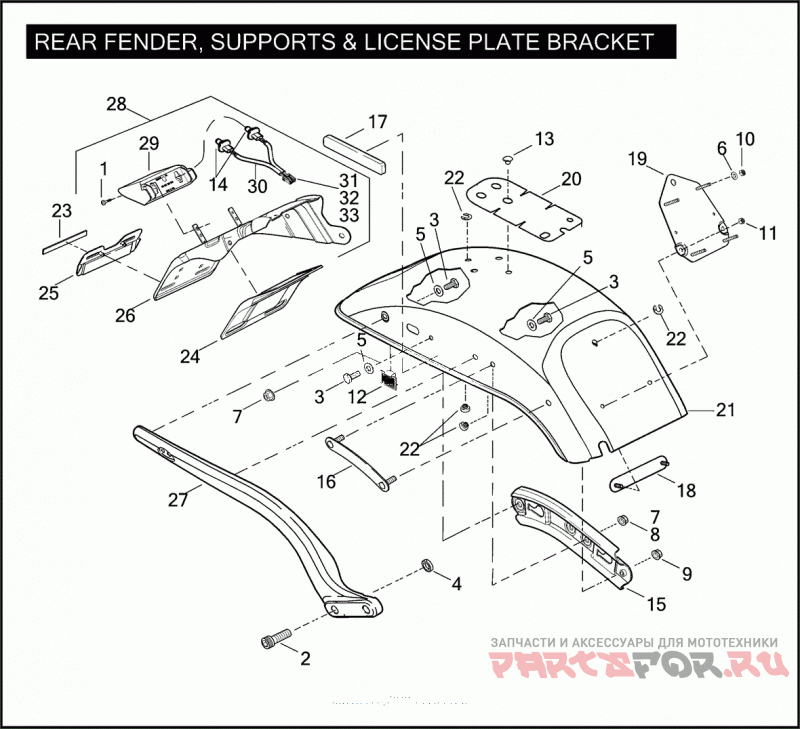

REAR FENDER, SUPPORTS & LICENSE PLATE BRACKET

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
1
2646
SCREW NO. 8-32 X 3/4 POZIDRIV PAN HD. (GRADE 2)
2
3043
Винт
3
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
4
6296
Проставка
5
6702
WASHER 5/16 X 11/16 X 1/16
6
6716
WASHER NO. 10 X 1/2 X 3/64
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
7601
LOCKNUT 3/8-16 FLANGE
9
7601
LOCKNUT 3/8-16 FLANGE
10
7629
NUT NO. 10-32 X 3/8 KEPS
11
7792
NUT 1/4-20 X 1/4 (GRADE 2)
12
10102
Зажим
13
10228
Заглушка
14
53436-97
BULB WEDGE, #W5W
15
56800-04
FENDER REINFORCEMENT RIGHT
15
56628-00
FENDER REINFORCEMENT LEFT
16
59053-00
BRACKET FENDER MOUNTING, LEFT
16
59463-04
BRACKET FENDER MOUNTING, RIGHT
17
59287-92
REFLECTOR RIGHT (RED)
17
59288-92
REFLECTOR LEFT (RED)
18
59438-00
BRACKET ASSEMBLY ECM MOUNTING
19
59543-01
BRACKET ASSEMBLY ELECTRONIC CONTROL MODULE
20
59503-03
PROTECTIVE TAPE
21
59759-00
FENDER
21
59794-04BKS
FENDER ASSEMBLY W/ 59503-03 (YELLOW PEARL WITH PLATINUM MIST)
21
59794-04BKP
FENDER ASSEMBLY W/ 59503-03 (CANDY COBALT WITH STARLIGHT BLACK)
22
59768-97
FENDER SEAT NUT KIT
23
59988-72A
Отражатель Красный
24
60015-04
COVER REAR DEFLECTOR
25
60019-93A
REFLECTOR BRACKET
26
60024-04
BRACKET LICENSE PLATE
27
60091-04BKO
FENDER SUPPORT RIGHT (CANDY COBALT)
27
60091-04BKR
FENDER SUPPORT RIGHT (YELLOW PEARL)
27
60093-04BKO
FENDER SUPPORT LEFT (CANDY COBALT)
27
60093-04BKR
FENDER SUPPORT LEFT (YELLOW PEARL)
28
60130-04
BRACKET ASSEMBLY LICENSE PLATE W/ 60024-04, 68889-00 & 68891-00
29
68889-00
ILLUMINATOR ASSEMBLY LICENSE PLATE, W/ 2646
30
68891-00
HARNESS ASSEMBLY LICENSE PLATE ILLUMINATOR, W/ 53469-97, 73154-96BK, 73154-96WE & 73191-96
31
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
32
73154-96WE
SOCKET HOUSING 4-WAY (WHITE)
33
73191-96
SOCKET CONTACT 20-16 GAUGE
