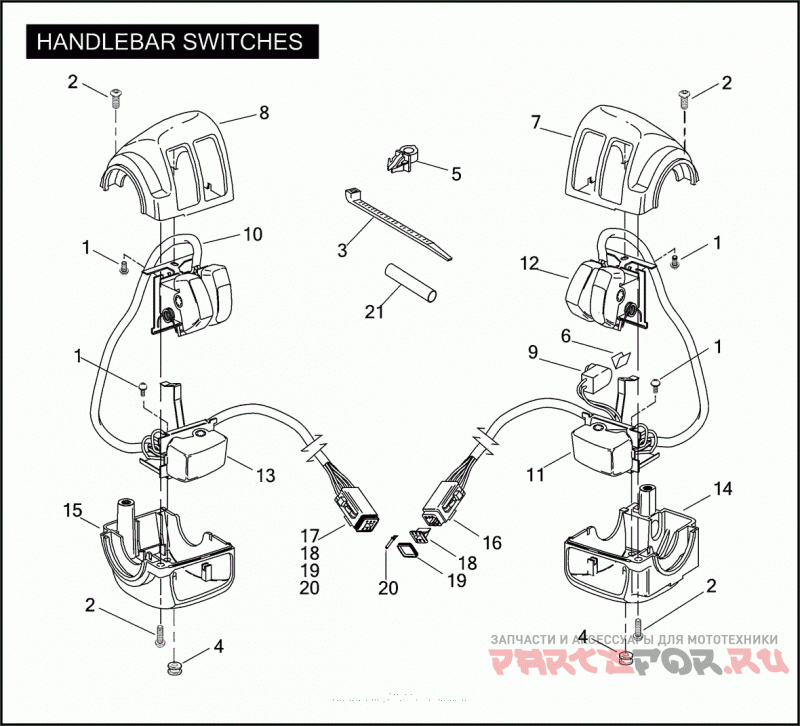

HANDLEBAR SWITCHES

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
1
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
2
4292
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
3
10181
CABLE STRAP (AS REQUIRED)
4
11402
Уплотнитель резиновый
5
70345-84
RETAINER WIRING
6
71587-04
Зажим
7
71614-96
HOUSING UPPER, RIGHT (CHROME)
8
71615-96
HOUSING UPPER, LEFT (CHROME)
9
71621-08
STOPLAMP SWITCH FRONT, W/ 10181 & 72266-94
10
71682-06A
SWITCH KIT DIMMER & HORN, W/ 10181 & 72266-94
11
71683-06A
SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
12
71684-06A
SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94
13
71685-06A
SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
14
71719-03
HOUSING LOWER, RIGHT (CHROME)
15
71720-03A
HOUSING LOWER, LEFT (CHROME)
16
72116-94BK
SOCKET HOUSING 6-WAY SOCKET, RIGHT (BLACK)
17
72116-94BK
SOCKET HOUSING 6-WAY SOCKET, RIGHT (REPLACES GRAY CONNECTOR) (BLACK)
18
72156-94
SOCKET LOCK SECONDARY, 6-WAY
19
72176-94
FRONT SEAL 6-WAY PLUG
20
72191-94
TERMINAL SOCKET
21
72266-94
HEAT SHRINK TUBE DUAL WALL, 0.3 X 2 INCH (AS REQUIRED)
