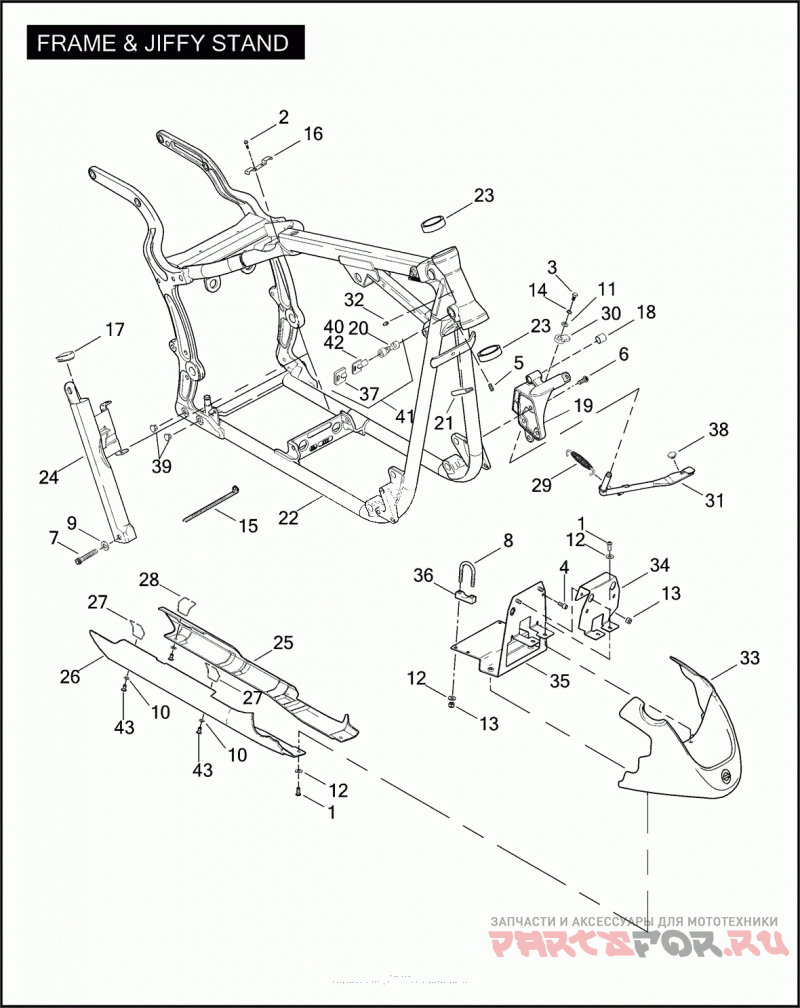

FRAME & JIFFY STAND

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
1
924
SCREW 1/4-20 X 33/64 SOCKET PAN HD.
2
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
3
2882W
SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)
4
2941
SCREW 1/4-20 X 35/64 SOCKET HD., SELF-TAPPING (GRADE 5)
5
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
6
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
7
4311
SCREW 3/8-16 X 1-5/8 SOCKET HD.
8
5228
Болт
9
6400HB
WASHER 5/16 X 13/16 X 3/32
10
6425
Шайба
11
6702
WASHER 5/16 X 11/16 X 1/16
12
6703
WASHER 1/4 X 5/8 X 1/16
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
7041
LOCKWASHER 5/16
15
10006
CABLE STRAP
15
10065
CABLE STRAP KEYS
16
10193
WIRE CLAMP
17
31741-00
PLUG SEAT POST
18
33708-94
BEARING SLEEVE
19
33921-00
BRACKET JIFFY STAND, SHIFT LEVER & FOOTREST
20
45680-90
FORK LOCK (SPECIFY KEY CODE)
21
46288-04A
PROTECTOR STEERING HEAD
22
46966-04BKO
FRAME (CANDY COBALT)
22
46966-04BKR
FRAME (YELLOW PEARL)
23
48315-60
BEARING CUP
24
48895-04BKO
POST ASSEMBLY SEAT (CANDY COBALT)
24
48895-04BKR
POST ASSEMBLY SEAT (YELLOW PEARL)
25
49901-04BKO
FAIRING FRAME RAIL, LEFT (CANDY COBALT)
25
49901-04BKR
FAIRING FRAME RAIL, LEFT (YELLOW PEARL)
26
49902-04BKO
FAIRING FRAME RAIL, RIGHT (CANDY COBALT)
26
49902-04BKR
FAIRING FRAME RAIL, RIGHT (YELLOW PEARL)
27
49903-03A
HANGER FRAME RAIL, RIGHT
28
49929-03A
HANGER FRAME RAIL, LEFT
29
50005-85A
SPRING JIFFY STAND LEG
30
50015-74A
LEG STOP
31
50285-03
LEG JIFFY STAND (CHROME)
32
83459-09
FITTING lubrication
33
57045-04BKO
FAIRING CHIN (CANDY COBALT)
33
57045-04BKR
FAIRING CHIN (YELLOW PEARL)
34
57047-03
BRACKET REGULATOR MOUNT (SILVER)
35
57049-03
BRACKET CHIN FAIRING MOUNT (BLACK)
36
58445-00
BLOCK U-BOLTS, FAIRING MOUNT
37
61081-92
COVER KEY HEAD SET
38
62123-66A
Амортизатор ударов
39
68446-00
Заглушка
40
71031-04
KEY KIT DECO
41
71450-04
LOCKSET W/ 10065, 45680-90, 61081-92, 71452-91A & IGNITION SWITCH
43
91285-03
STUD 1/4 TURN
43
91625-04
COVER KIT MOTORCYCLE (NOT ILLUSTRATED)
