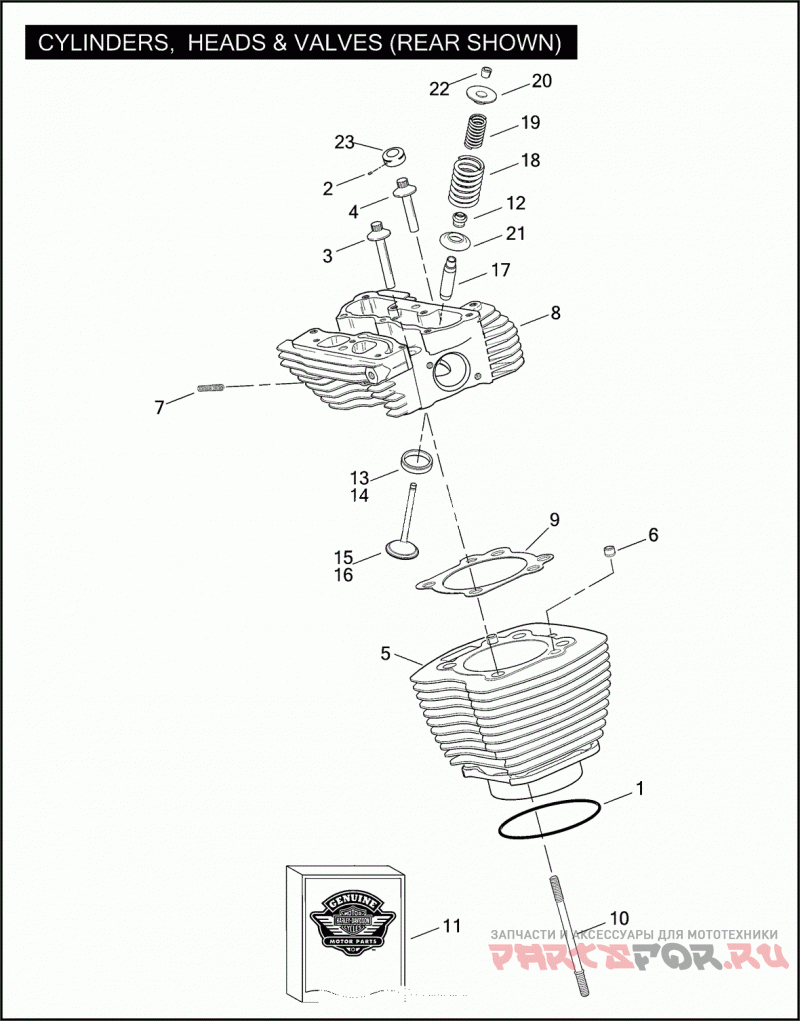

CYLINDERS, HEADS & VALVES - 1550 Twin Cam 95B

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
1
11256
O-RING CYLINDER BASE
2
3231B
SCREW 1/4-20 X 1/4 SOCKET HD., W/LOCKPATCH
3
16478-85A
SCREW INTERNAL THREAD, 3-3/16 INCH LONG
4
16480-92A
SCREW INTERNAL THREAD, 1-7/8 INCH LONG
5
16548-99A
CYLINDER ASSEMBLY W/ 16595-99A (SILVER)
6
16595-99A
DOWEL CYLINDER TO HEAD
7
16715-83
STUD EXHAUST PORT
8
16716-99
CYLINDER HEAD FRONT, W/ GUIDES & SEATS (SILVER)
8
16717-99
CYLINDER HEAD REAR, W/ GUIDES & SEATS (SILVER)
9
16787-99A
GASKET CYLINDER HEAD, 1550 ENGINE
10
16834-99A
STUD CYLINDER
11
17052-99C
GASKET KIT TOP END
11
17053-99C
GASKET KIT ENGINE OVERHAUL
12
18001-83B
SEAL VALVE
13
18011-86
INSERT EXHAUST VALVE SEAT
13
18124-83
INSERT EXHAUST VALVE SEAT, 0.005 O.S.
14
18020-83
INSERT INTAKE VALVE SEAT
14
18134-83
INSERT INTAKE VALVE SEAT, 0.005 O.S.
15
18074-83B
Клапан впускной
15
18076-83
INTAKE VALVE 0.03 SHORT
16
18082-83A
Клапан выпускной
17
18101-83D
VALVE GUIDE INTAKE & EXHAUST
17
18130-83D
VALVE GUIDE INTAKE & EXHAUST, 0.001 O.S.
17
18131-83D
VALVE GUIDE INTAKE & EXHAUST, 0.003 O.S.
17
18133-83B
VALVE GUIDE INTAKE & EXHAUST, 0.002 O.S.
20
18219-83A
COLLAR VALVE SPRING, UPPER
22
18229-83A
RETAINER VALVE COLLAR
23
43823-01
HEADBOLT COVER
