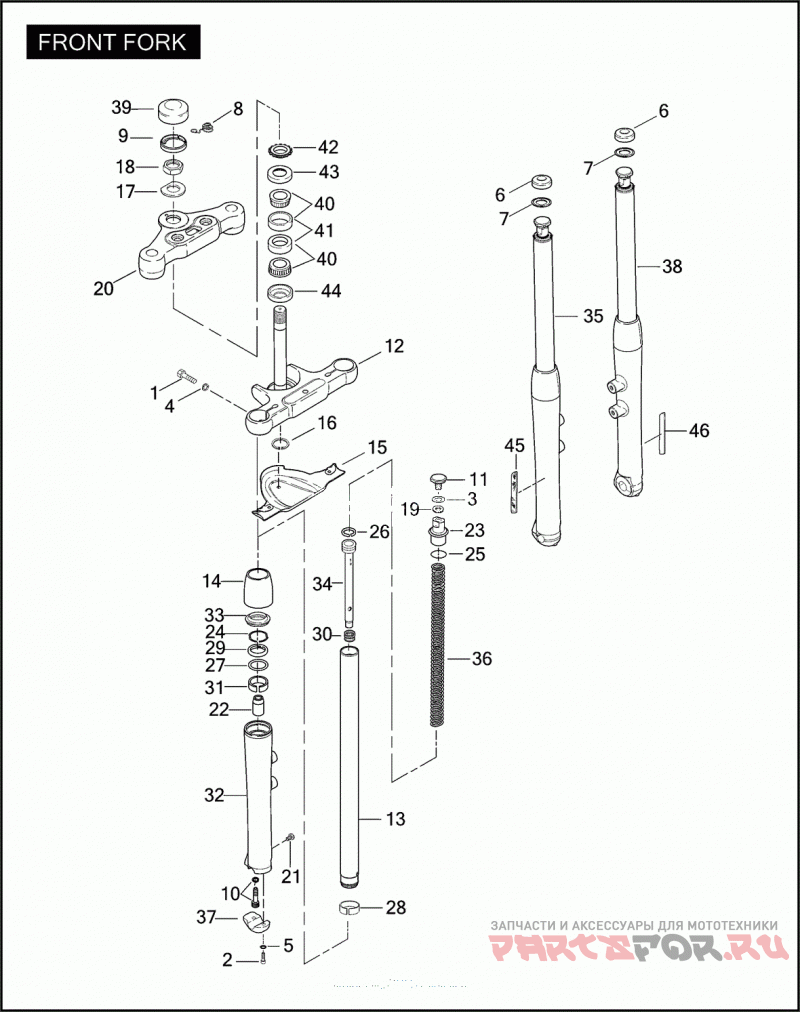

Передняя вилка

Harley Davidson FXSTDSE2 1PHD CVO SOFTAIL DEUCE (2004)

Harley Davidson
#oem кодцена
1
992
SCREW 7/16-20 X 1-1/2 TORX BUTTON HD.
2
4213
SCREW M8 X 1.25 X 30 BUTTON HD.
3
5710
WASHER 63/64 X 1-1/2 X 5/64
4
7039
LOCKWASHER 7/16
5
7062
LOCKWASHER M8.4 X 13 X 1.2
6
44503-03
CAP FORK NUT
7
44504-03
COLLAR FORK NUT
8
45187-04
GUIDE CLUTCH LINE
9
45188-04
SPACER STEERING HEAD CAP
10
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
11
45419-80
BOLT SLIDER TUBE
12
45475-00A
STEM & BRACKET W/ 48365-48A
14
45482-03
CAP FORK SLIDER
15
45568-03
COVER LOWER TRIPLE TREE
16
45611-86
Стопорное кольцо
17
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
18
45718-60
NUT 1-24 X 1.5 X 0.47
19
45733-48
OIL SEAL FORK TUBE PLUG
20
45769-00
BRACKET UPPER
21
45790-80
Винт
22
45803-97
LOWER STOP
23
45838-77
PLUG FORK TUBE
24
45842-77A
RETAINING RING OIL SEAL
25
45845-77
O-RING SLIDER TUBE PLUG
26
45859-77A
RING DAMPER TUBE
27
45865-84
WASHER SLIDER
28
45866-84
BUSHING SLIDER TUBE
29
45875-84A
OIL SEAL SLIDER
30
45933-86
SPRING DAMPER TUBE
31
45940-84
BUSHING SLIDER
32
46067-00
SLIDER LEFT, W/ 45790-80
32
46221-03
SLIDER RIGHT, W/ 45790-80
33
46175-00
DUST SHIELD
34
46176-00
DAMPER TUBE COMPLETE TUBE, W/ 45859-77A
35
46219-03
FORK ASSEMBLY RIGHT
37
46222-03
AXLE HOLDER RIGHT
38
46263-03
FORK ASSEMBLY LEFT
39
47652-04
CAP FORK STEM
40
48300-60
ROLLER BEARING W/ 48315-60
41
48315-60
BEARING CUP
42
48324-00A
Гайка
43
48361-80
DUST SHIELD BEARING, UPPER
44
48365-48A
DUST SHIELD BEARING, LOWER
45
59481-00
REFLECTOR AMBER, RIGHT
46
59482-00
REFLECTOR AMBER, LEFT
