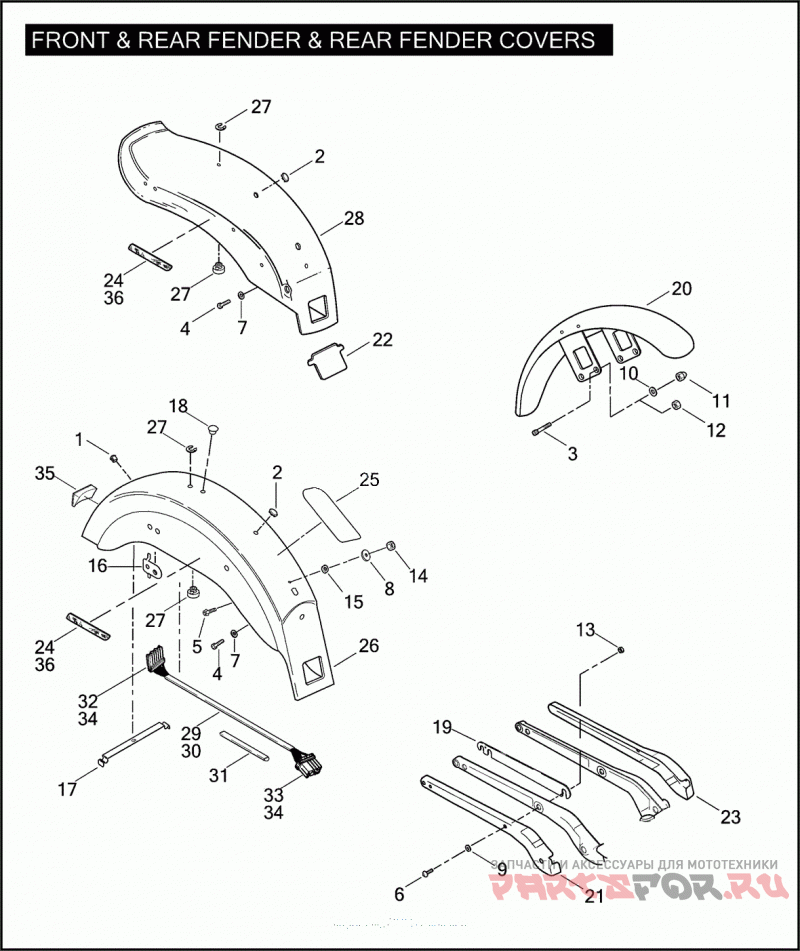

FRONT & REAR FENDER & REAR FENDER COVERS

Harley Davidson FXDWGI 1GPW DYNA WIDE GLIDE (2004)

Harley Davidson
#oem кодцена
2
761
PLUG (BLACK)
3
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
4
3445
BOLT 5/16-18 X 9/16 HEX HD., W/LOCKPATCH (GRADE 5)
5
3574
SCREW 1/4-20 X 3/4 FLANGE
6
4103
BOLT 3/8-16 X 1-3/8 HEX BUTTON HD. (GRADE 8)
7
6016
WASHER 11/32 X 11/16 X 1/16
8
6036
WASHER 17/64 X 1 X 1/16
9
6379W
WASHER 3/8 X 5/8 X 3/64
10
6702
WASHER 5/16 X 11/16 X 1/16
11
7507
ACORN NUT 5/16-18 X 11/16 X 1/2 (GRADE 2) (CHROME)
13
7601
LOCKNUT 3/8-16 FLANGE
14
7792
NUT 1/4-20 X 1/4 (GRADE 2)
15
7891
NUT 1/4-20 SPECIAL PLASTIC
20
59924-80B
FENDER FRONT (PRIME)
21
59893-96
COVER RIGHT
22
59150-90
PLUG FENDER
23
60007-96
COVER LEFT
24
59287-92
REFLECTOR RIGHT (RED)
24
59288-92
REFLECTOR LEFT (RED)
25
59546-02
TAPE FENDER PROTECTOR
27
59768-97
FENDER SEAT NUT ASSEMBLY KIT
28
59918-02
FENDER REAR (PRIME)
29
68764-99
HARNESS REAR LIGHTING
30
68771-02A
HARNESS ASSEMBLY REAR LIGHTING, W/ 68764-99
31
70540-02
CONDUIT KIT
32
73156-96BK
SOCKET HOUSING 6-PLACE
33
73158-96BK
SOCKET HOUSING 8-PLACE
34
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
36
59287-92
REFLECTOR RIGHT (RED) (HDI)
36
59288-92
REFLECTOR LEFT (RED) (HDI)
