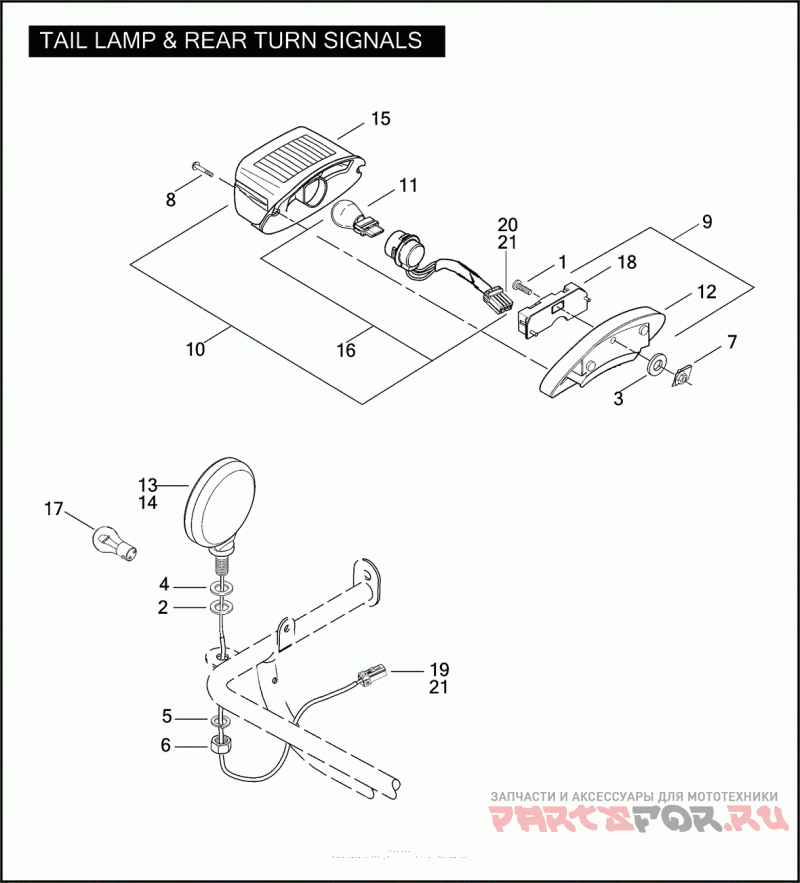

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDP 1GKV DYNA DEFENDER (2004)

TAIL LAMP & REAR TURN SIGNALS

#

oem код

название

цена

1

SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH

SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH

3

WASHER 3/8 X 13/16 X 1/16

WASHER 3/8 X 13/16 X 1/16

4

WASHER 1/2 X 1-1/16 X 3/32

WASHER 1/2 X 1-1/16 X 3/32

5

LOCKWASHER 1/2

LOCKWASHER 1/2

6

NUT 1/2-20 X 7/16 X 3/4 (GRADE 2)

NUT 1/2-20 X 7/16 X 3/4 (GRADE 2)

7

J-NUT

J-NUT

8

SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)

SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)

9

BASE ASSEMBLY W/ 68296-99A & 68830-99A (CHROME)

BASE ASSEMBLY W/ 68296-99A & 68830-99A (CHROME)

10

LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A

LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A

11

BULB TAIL LAMP - WEDGE MOUNT

BULB TAIL LAMP - WEDGE MOUNT

12

BASE TAIL LIGHT CHROME

BASE TAIL LIGHT CHROME

13

TURN SIGNAL ASSEMBLY

TURN SIGNAL ASSEMBLY

14

LENS TURN SIGNAL - REAR

LENS TURN SIGNAL - REAR

15

LENS TAIL LAMP

LENS TAIL LAMP

16

BULB SOCKET ASSEMBLY

BULB SOCKET ASSEMBLY

17

BULB REAR TURN SIGNAL

BULB REAR TURN SIGNAL

18

CIRCUIT BOARD/COVER ASSEMBLY

CIRCUIT BOARD/COVER ASSEMBLY

19

SOCKET HOUSING 2-PLACE

SOCKET HOUSING 2-PLACE

20

SOCKET HOUSING 4-PLACE

SOCKET HOUSING 4-PLACE

21

CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)

CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
