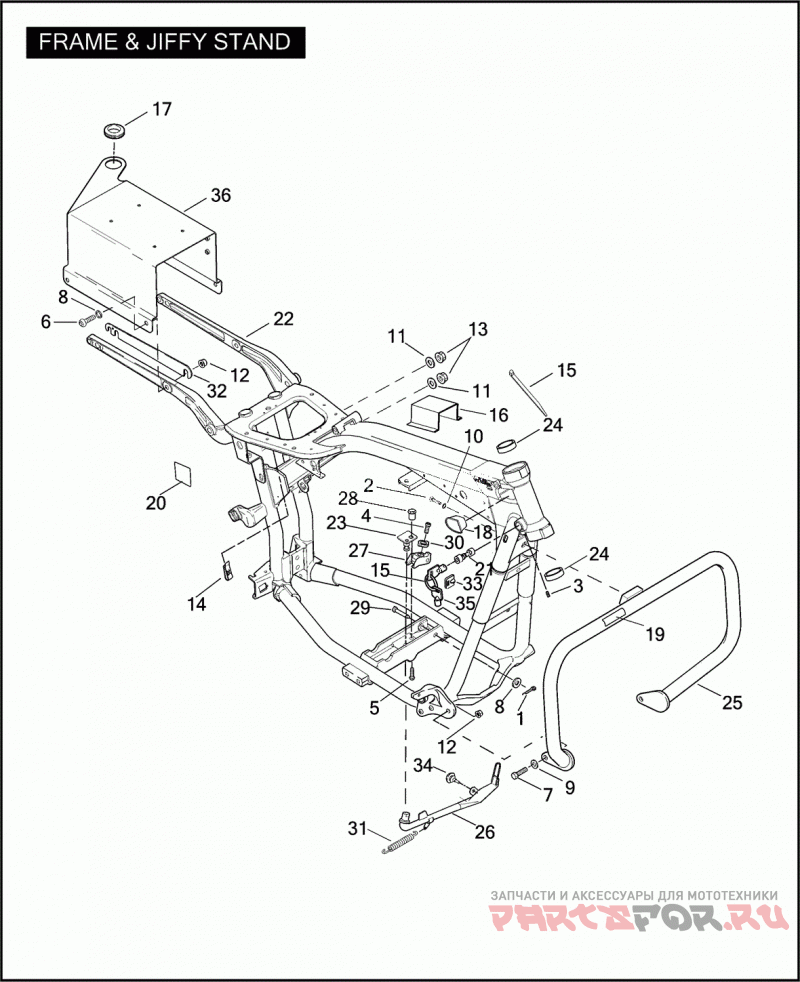

FRAME & JIFFY STAND

Harley Davidson FXDP 1GKV DYNA DEFENDER (2004)

Harley Davidson
#oem кодцена
1
554A
Шплинт
2
2851
BOLT 3/8-16 X 7/8 HEX HD. (GRADE 5)
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
3487
BOLT 5/16-24 X 5/8 HEX HD., W/LOCKPATCH
5
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
6
4103
BOLT 3/8-16 X 1-3/8 HEX BUTTON HD. (GRADE 8)
7
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
8
6379W
WASHER 3/8 X 5/8 X 3/64
9
6701
WASHER 3/8 X 13/16 X 1/16
10
7038
LOCKWASHER 3/8
11
7127
LOCKWASHER 5/16 INTERNAL TOOTH
12
7601
LOCKNUT 3/8-16 FLANGE
13
7495
NUT M6 FLANGE
14
8102
SPEEDNUT 5/16-18
15
10006
CABLE STRAP
15
10039
CABLE STRAP
15
10073
CABLE STRAP
16
10257
CLIP WIRE SADDLE
17
11503
Уплотнитель резиновый
18
11457
PLUG STEERING HEAD
19
14148-86
Лейбл
20
14273-96
IGNITION LABEL HOLE COVER
21
45680-90
LOCK, FORK (SPECIFY KEY CODE)
22
47427-04BHP
FRAME 28 DEGREE RAKE
23
47318-98
Фиксатор
24
48315-60
BEARING CUP STEERING HEAD
25
49009-03
GUARD ENGINE ASSEMBLY
26
49710-94B
LEG JIFFY STAND - LONG
27
49720-90
PIVOT BLOCK
28
49723-98
THREADED SPACER
29
50003-89B
Штифт
30
50053-90
CATCH
31
50057-02
Пружина
32
52372-02
SPACER SIDE PLATE
33
61081-92
COVER KEY HEAD SET
34
62123-66A
Амортизатор ударов
36
76162-02
BRACKET MOUNTING RADIO
