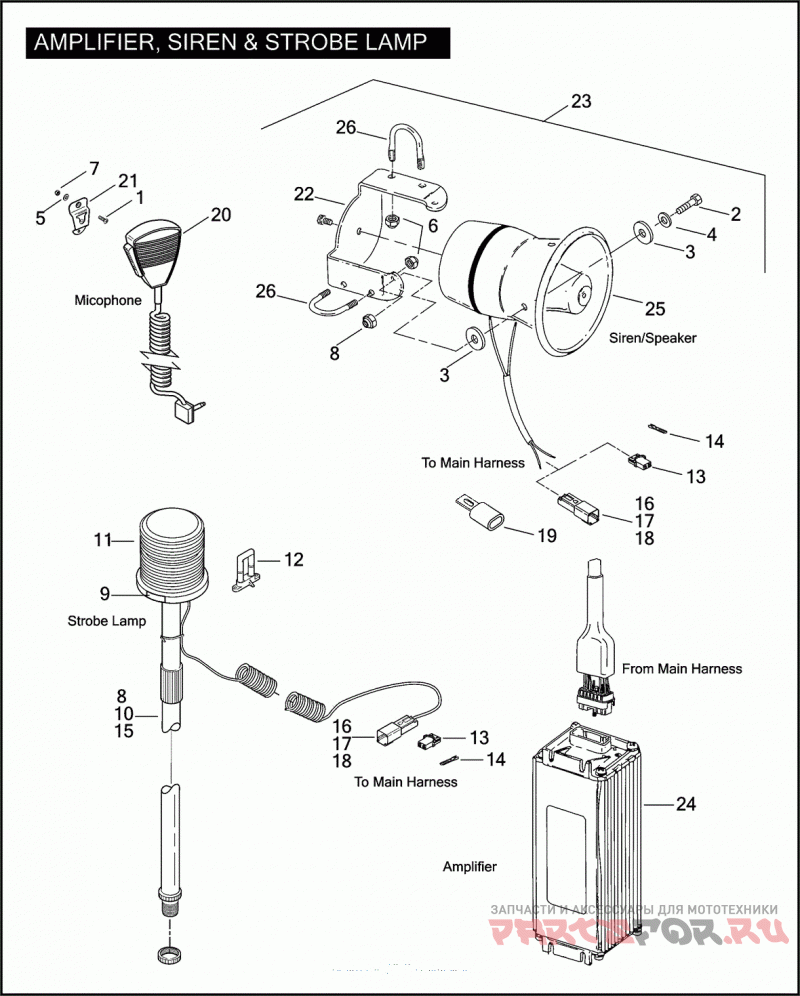

AMPLIFIER, SIREN & STROBE LAMP

Harley Davidson FXDP 1GKV DYNA DEFENDER (2004)

Harley Davidson
#oem кодцена
1
2659
Деталь SCREW NO. 10-24 X 7/8 PAN HD.
2
3787
Деталь BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
3
6036
Деталь WASHER 17/64 X 1 X 1/16
4
6237
Деталь WASHER 5/16 X 1-1/8 X 5/64
5
6716
Деталь WASHER NO. 10 X 1/2 X 3/64
6
7531
Деталь LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
7624
Деталь LOCKNUT NO. 10-24 X 1/4 X 3/8
8
7716
Деталь LOCKNUT 1/4-20 X 7/16 FLANGE
8
9863
Деталь TERMINAL RING TYPE, 1/4 INCH DIAMETER HOLE (NOT ILLUSTRATED)
10
68000135
Деталь STROBE LAMP w/ connections (blue)
10
68000136
Деталь KIT-EMERG POLE LITE,RED
11
67599-88
Деталь LENS (RED)
11
67688-88
Деталь LENS (BLUE)
12
67598-88
Деталь FLASH TUBE ASSEMBLY (SELF-CONTAINED)
13
72035-71
Деталь HOUSING DOUBLE PIN
14
72039-71A
Деталь PIN SINGLE SOCKET
15
72043-71A
Деталь HOUSING CAP SINGLE POSITION
16
72102-94BK
Деталь RECEPTACLE 2-WAY PIN
17
72142-94
Деталь PIN LOCK SECONDARY, 2-WAY
18
72190-94
Деталь TERMINAL PIN
19
72516-01
Деталь CAP DUST (TO BE USED ON SIREN CONNECTION ON MAIN HARNESS, WHEN SIREN IS NOT USED)
20
76185-93
Деталь MICROPHONE
21
76201-80A
Деталь HANGER MICROPHONE
22
91127-85
Деталь BRACKET SPEAKER MOUNTING
23
91154-87
Деталь SPEAKER MOUNTING KIT
24
91156-93
Деталь AMPLIFIER SIREN
24
76006-03
Деталь AMPLIFIER MOUNTING KIT (NOT ILLUSTRATED)
25
91157-88A
Деталь SPEAKER W/ TERMINALS
26
91159-82
Деталь U-BOLT SPEAKER MOUNTING
