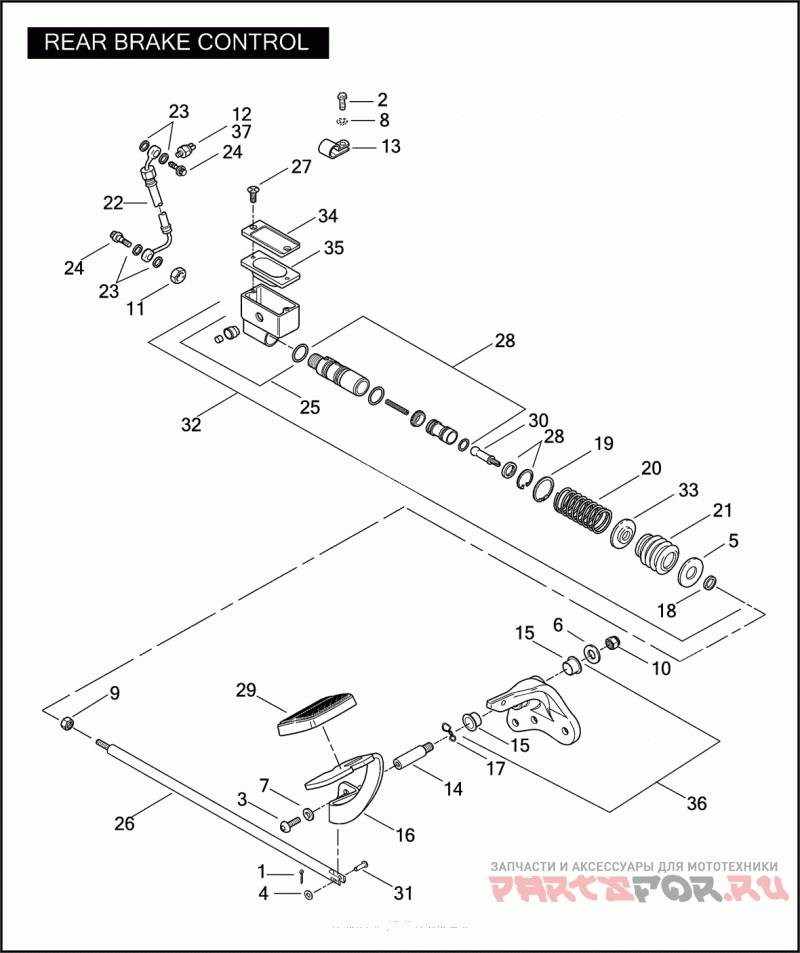

Тормозной цилиндр задний

Harley Davidson FXDP 1GKV DYNA DEFENDER (2004)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
3537
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH
3
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6366
WASHER 1/2 X 1-1/4 X 3/32
6
6516HW
WASHER 7/16 X 1-1/8 X 1/8
7
6701
WASHER 3/8 X 13/16 X 1/16
8
7229W
LOCKWASHER 1/4 INTERNAL/EXTERNAL TOOTH
9
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
10
7827W
LOCKNUT 7/16-14
11
7951
JAMNUT 3/4-16 X 17/64 X 1-7/64 (GRADE 2)
12
9898
FLAG TERMINAL (USED W/ 72023-51C)
12
9907
TERMINAL WIRE (USED W/ 72023-51D)
13
10053
Зажим
14
33689-02
SHAFT PIVOT
15
33703-01
BUSHING FLANGED
16
33711-02
PEDAL BRAKE
17
34641-01
WASHER SPRING WAVE
18
40903-87
Стопорное кольцо
19
40918-87
Стопорное кольцо
20
40920-87
Пружина
21
40922-87A
чехол
22
40956-00B
BRAKE LINE
23
41731-88A
Прокладка
24
41747-82A
Болт
25
41803-90
RESERVOIR ASSEMBLY
26
41954-01
PUSH ROD
27
42375-87
Винт
28
42382-87E
REPAIR KIT master cylinder
29
42416-83
PAD BRAKE PEDAL
30
42448-87
PUSH ROD
31
42460-80B
CLEVIS PIN
32
42474-90C
MASTER CYLINDER ASSY,FXDS
33
44126-87
SPRING RETAINER
34
45004-85
COVER MASTER CYLINDER
35
45005-85
GASKET COVER
36
50521-01
SUPPORT ASSEMBLY R.H.
37
72023-51E
SWITCH KIT stop lamp
