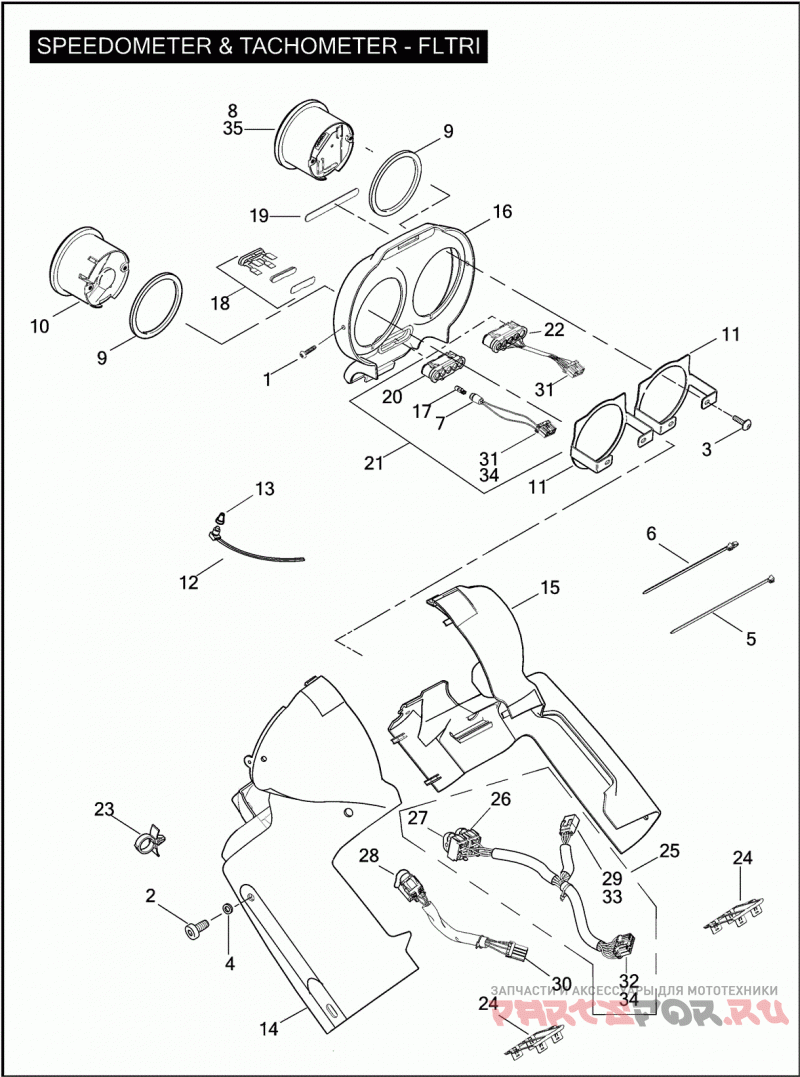

SPEEDOMETER & TACHOMETER - FLTRI

Harley Davidson FLTRI 1FSW ROAD GLIDE (2004)

Harley Davidson
#oem кодцена
1
3622
SCREW NO. 10-16 X 3/8 PAN HD., SELF-TAPPING
2
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
3
3691
SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.
4
6703
WASHER 1/4 X 5/8 X 1/16
5
10065
CABLE STRAP
6
10073
CABLE STRAP
7
67184-94
SOCKET INDICATOR LAMPS
8
67261-04A
SPEEDOMETER MPH
9
67356-00
GASKET SPEEDOMETER & TACHOMETER
10
67459-04C
TACHOMETER WITH CRUISE, LOW FUEL & ENGINE LAMPS
11
67689-04
BACK CLAMP SPEEDOMETER & TACHOMETER
12
67854-98
SWITCH SPEEDOMETER TRIP/RESET
13
67880-94
RESET KNOB
14
67921-98D
HOUSING SPEEDOMETER & TACHOMETER, RIGHT
15
67922-98E
HOUSING KIT SPEEDOMETER & TACHOMETER, LEFT
16
67923-98B
COVER SPEEDOMETER & TACHOMETER
17
68024-94
BULB INDICATOR LAMP
18
68382-96
BEZEL INDICATOR LAMPS
19
68492-98
DECAL SPEEDOMETER & TACHOMETER COVER
20
68792-96
HOUSING INDICATOR LAMP
21
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
22
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
23
70385-01
Седло
24
71434-96A
BRACKET SWITCH
25
71625-04
SWITCH & HARNESS ASSEMBLY ACCESSORY & CRUISE, W/ 10065, 71636-98, 71637-98, 73104-96BK, 73162-96BK, 73190-96 & 73191-96
26
71636-98
SWITCH ASSEMBLY ACCESSORY
27
71637-98
SWITCH ASSEMBLY CRUISE CONTROL
28
71655-98
SWTICH ASSEMBLY SPEAKER, W/ 10065, 73154-96BK & 73191-98
29
73104-96BK
HOUSING PIN 4-PLACE
30
73154-96BK
SOCKET HOUSING 4-PLACE
31
73160-96BK
SOCKET HOUSING 10-PLACE
32
73162-96BK
SOCKET HOUSING 12-PLACE
33
73190-96
SOCKET CONTACT 16-20 GAUGE
34
73191-96
SOCKET CONTACT 16-20 GAUGE
35
67281-04A
SPEEDOMETER KPH (CANADA)
