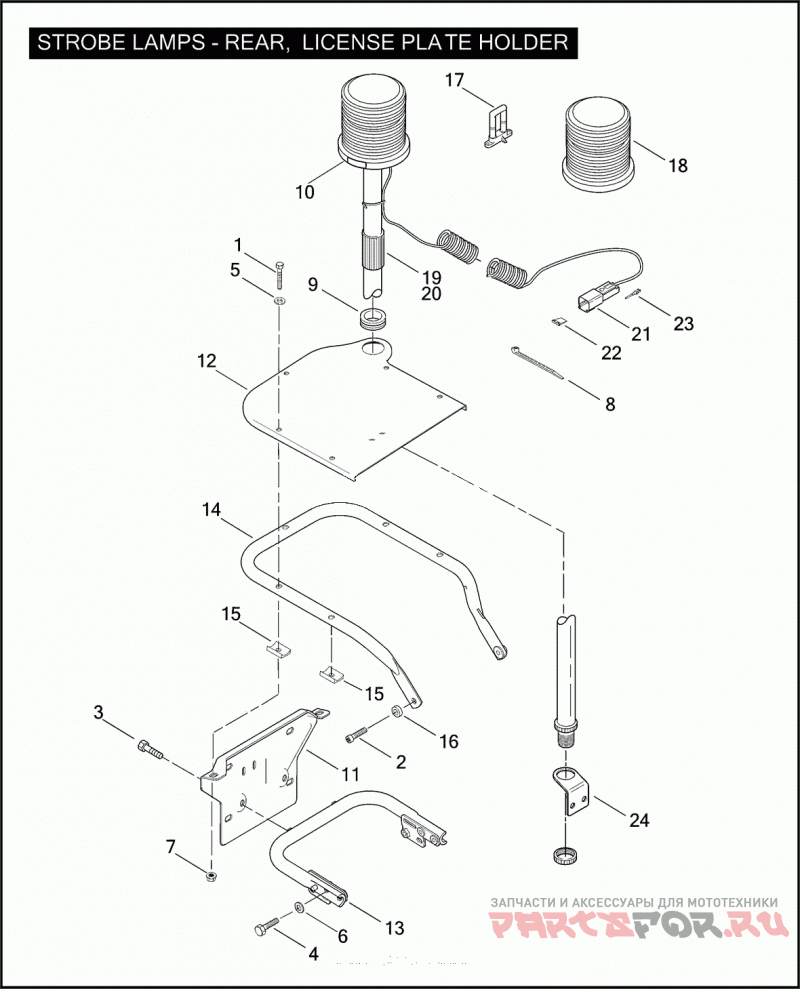

STROBE LAMPS - REAR, LICENSE PLATE HOLDER

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2004)

Harley Davidson
#oem кодцена
1
2872W
BOLT 1/4-20 X 1-1/2 HEX HD. (GRADE 5)
2
3684
SCREW 5/16-18 X 1 TORX PAN HD.
3
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7127
LOCKWASHER 5/16 INTERNAL TOOTH
7
7887
LOCKNUT 1/4-20 NYLON
7
9863
TERMINAL RING TYPE, 1/4 INCH DIAMETER HOLE (NOT ILLUSTRATED)
8
10006
CABLE STRAP
9
11503
Уплотнитель резиновый
11
53375-97A
LICENSE PLATE HOLDER
12
53419-97A
MOUNTING PLATE
13
53422-97
SUPPORT TUBE BOTTOM
14
53801-98
SUPPORT TUBE TOP
15
53799-99
SPACER LUGGAGE RACK, LICENSE PLATE
16
61135-57
Проставка
17
67598-88
FLASH TUBE ASSEMBLY SELF-CONTAINED
18
67599-88
LENS (RED)
18
67688-88
LENS (BLUE)
19
68000135
STROBE LAMP w/ connections (blue)
19
68000136
KIT-EMERG POLE LITE,RED
20
72043-71A
HOUSING CAP
21
72102-94BK
RECEPTACLE 2-WAY PIN
22
72142-94
PIN LOCK SECONDARY, 2-WAY
23
72190-94
TERMINAL PIN
24
91137-97
BRACKET LOWER
