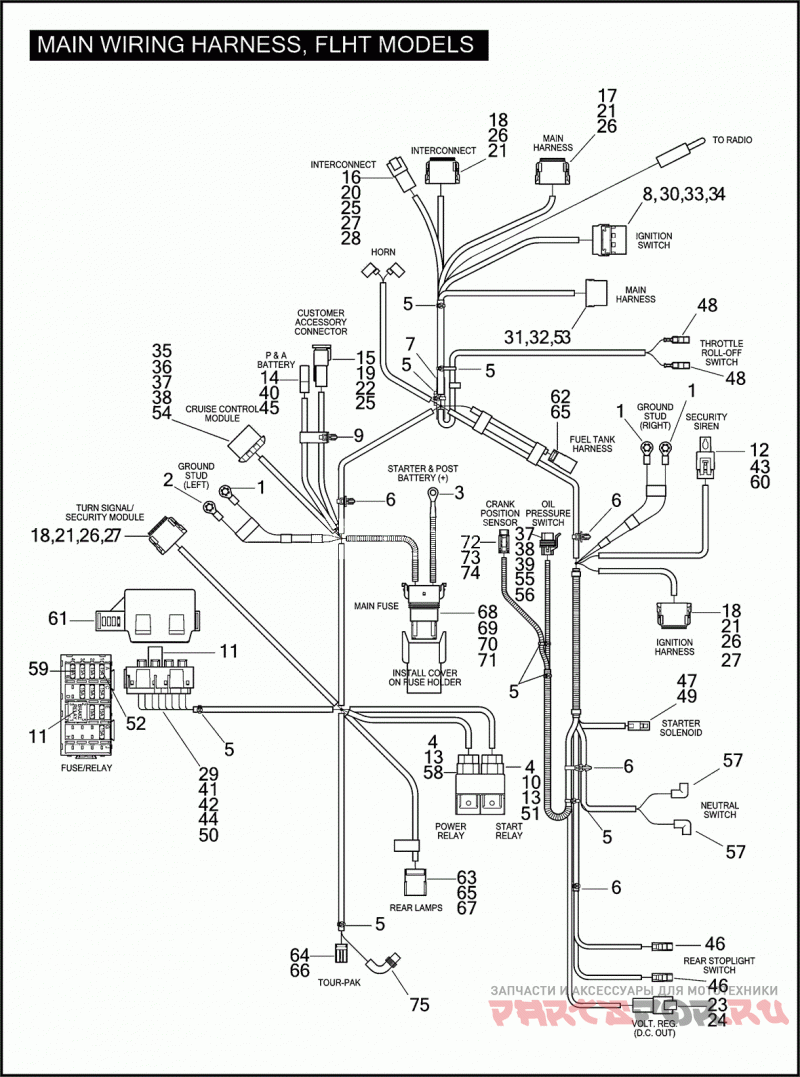

MAIN WIRING HARNESS, FLHT MODELS

Harley Davidson FLHTI 1FVW ELECTRA GLIDE STANDARD (2004)

Harley Davidson
#oem кодцена
70985-04
Деталь MAIN WIRING HARNESS
1
9825
Деталь TERMINAL 1/4 INCH RING
2
9838
Деталь TERMINAL 1/4 INCH RING WITH INTERNAL STAR, #10-12 GAUGE
3
9842
Деталь TERMINAL 1/4 INCH RING, #10-12 GAUGE
4
9937
Деталь TERMINAL FEMALE, SPADE, 1/4 INCH SLOT
5
10065
Деталь CABLE STRAP
6
10073
Деталь CABLE STRAP ROSE BUD MOUNT
7
10136
Деталь ANCHOR T-STUD
8
10147
Деталь CLIP CONNECTOR
9
10177
Деталь CABLE STRAP TREE MOUNT
10
31504-91B
Деталь RELAY WITH DIODE
11
31586-07
Деталь RELAY
12
72033-93
Деталь TERMINAL SOCKET, #16-20 GAUGE
13
72046-79
Деталь INSULATOR SPADE TERMINALS
14
72100-04
Деталь HOUSING MALE, 1-WAY
15
72104-94BK
Деталь RECEPTACLE 4-WAY PIN (BLACK)
16
72106-94BK
Деталь PIN HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
17
72119-94BK
Деталь PLUG 12-WAY SOCKET, W/ 72179-94 (BLACK)
18
72139-94GY
Деталь SOCKET HOUSING SEALED, W/ 72179-94 (GRAY)
19
72144-94
Деталь PIN LOCK SECONDARY, 4-WAY
20
72146-94
Деталь PIN LOCK SECONDARY, 6-WAY
21
72159-94
Деталь SOCKET LOCK SECONDARY, 12-WAY
22
72164-94A
Деталь WEATHER PLUG
23
72170-01
Деталь TERMINAL PIN, #8-10 GAUGE
24
72182-01
Деталь PIN HOUSING 1-WAY
25
72190-94
Деталь TERMINAL PIN
26
72191-94
Деталь TERMINAL SOCKET
27
72195-94
Деталь SEAL PIN
28
72199-94
Деталь ANCHOR CONNECTOR
29
72204-04
Деталь FUSE/RELAY BLOCK
30
72205-94
Деталь CONNECTOR PLUG, 4-WAY
31
72206-94
Деталь CONNECTOR RECEPTACLE, 4-WAY
32
72207-94
Деталь TERMINAL FEMALE, #14 GAUGE
33
72208-94
Деталь TERMINAL MALE, #12 GAUGE
34
72210-94
Деталь TERMINAL MALE, #14-16 GAUGE
35
72211-94
Деталь CONNECTOR 10-WAY
36
72212-94
Деталь SOCKET LOCK SECONDARY
37
72213-94
Деталь TERMINAL FEMALE, #18-20 GAUGE
38
72214-94
Деталь SEAL CABLE
39
72232-96
Деталь PLUG SEAL (RED)
39
70985-04
Деталь MAIN WIRING HARNESS (CONTINUED)
40
72260-04
Деталь HOUSING 1-WAY, FEMALE
41
72265-04
Деталь SECONDARY LOCK FUSE BLOCK
42
72279-04
Деталь TERMINAL FEMALE, #14-16 GAUGE
43
72280-95
Деталь SOCKET HOUSING 3-WAY
44
72286-04
Деталь TERMINAL FEMALE, #12-14 GAUGE
45
72289-04
Деталь TERMINAL FEMALE, #12 GAUGE
46
72290-94
Деталь TERMINAL FEMALE
47
72291-94
Деталь TERMINAL FEMALE SPADE, #14-16 GAUGE
48
72294-94BK
Деталь TERMINAL FEMALE, #16-20 GAUGE (BLACK)
49
72295-94
Деталь HOUSING STARTER CONNECTION
50
72309-04
Деталь TERMINAL #16-18 GAUGE
51
72325-97
Деталь RELAY HOLDER
52
72330-95
Деталь FUSE 15 AMP (BLUE)
53
72355-97
Деталь TERMINAL FEMALE, #12 GAUGE
54
72377-02
Деталь BOOT CRUISE CONTROL
55
72400-99
Деталь SOCKET HOUSING 4-WAY (BLACK)
56
72403-99
Деталь SOCKET LOCK SECONDARY, 4-WAY
57
72405-98BK
Деталь PUSH ON WIRE ASSEMBLY RIGHT ANGLE MOLDED, 60 INCH LENGTH
58
72429-00
Деталь TERMINAL .25 INCH
59
72462-00
Деталь FUSE MINI TYPE, 10 AMP (RED)
60
72516-01
Пылезащитный колпачок
61
72531-04
Деталь COVER FUSE BLOCK
62
73103-96BK
Деталь PIN HOUSING 3-WAY (BLACK)
63
73108-96BK
Деталь PIN HOUSING 8-WAY (BLACK)
64
73153-96BK
Деталь SOCKET HOUSING 3-WAY (BLACK)
65
73190-96
Деталь TERMINAL PIN, #16-20 GAUGE
66
73191-96
Деталь CONTACT SOCKET #16-20 GAUGE
67
73198-96
Деталь CONNECTOR ANCHOR
68
73301-04
Деталь HOUSING FEMALE, 2-WAY
69
73303-04
Деталь SOCKET LOCK SECONDARY, FEMALE, 2-WAY
70
73304-04
Деталь TERMINAL FEMALE, #10 GAUGE
71
73305-04
Деталь WIRE SEAL #10 GAUGE (BLUE)
72
74112-98BK
Деталь SOCKET HOUSING 2-WAY (BLACK)
73
74152-98
Деталь SOCKET LOCK 2-WAY
74
74191-98
Деталь TERMINAL SOCKET #16-20 GAUGE
75
76248-86
Деталь ANTENNA CABLE ASSEMBLY
