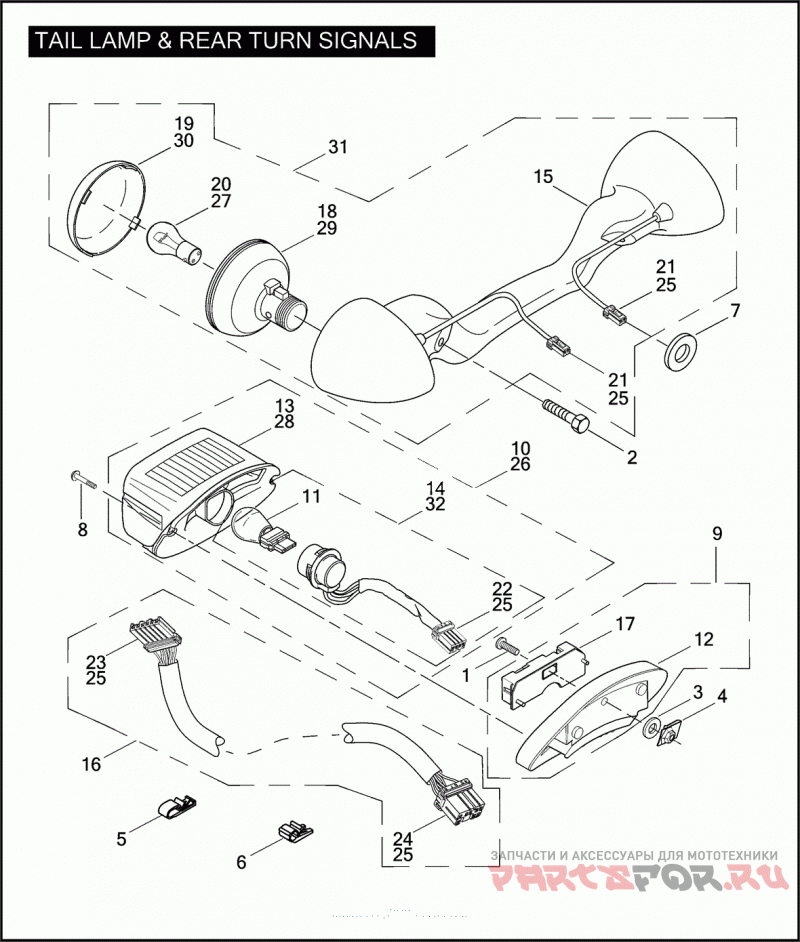

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLHTCSE 1PJE CVO ELECTRA GLIDE (2004)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
6701
WASHER 3/8 X 13/16 X 1/16
4
7964
J-NUT
5
10183
CLIP T-STUD
6
10184
CLIP T-STUD
7
67266-94
BUSHING NYLON
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
TAIL LAMP BASE ASSEMBLY W/ 13 & 23
10
68140-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A
11
68167-04
BULB TAIL LAMP, WEDGE MOUNT
12
68296-99A
TAIL LIGHT BASE (CHROME)
13
68369-03
LENS TAIL LAMP, W/ 68026-99
14
68370-03A
BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96
15
68508-04
BRACKET REAR TURN SIGNAL BAR (DOMESTIC, HDI)
16
68772-99
HARNESS REAR LAMPS, W/ 73156-96BK, 73158-96BK & 73191-96
17
68830-99A
CIRCUIT BOARD & COVER
18
68905-00
SOCKET ASSEMBLY REAR TURN SIGNAL
19
69325-02
LENS REAR TURN SIGNAL
20
69330-02
BULB REAR TURN SIGNAL
21
73152-96BK
SOCKET HOUSING 2-PLACE (DOMESTIC, HDI)
22
73154-96BK
SOCKET HOUSING 4-PLACE
23
73156-96BK
SOCKET HOUSING 6-PLACE
24
73158-96BK
SOCKET HOUSING 8-PLACE
25
73191-96
CONTACT SOCKET 16-20 GAUGE (DOMESTIC, HDI)
26
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03 & 69187-03A (HDI)
27
68163-84
BULB TURN SIGNAL (HDI)
28
68372-03
LENS TAIL LAMP, W/ 68026-99
30
68973-00
LENS TURN SIGNAL (HDI)
31
68997-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68907-00, 68973-00, 73152-96BK & 73191-96 (HDI)
32
69187-03A
SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96 (HDI)
