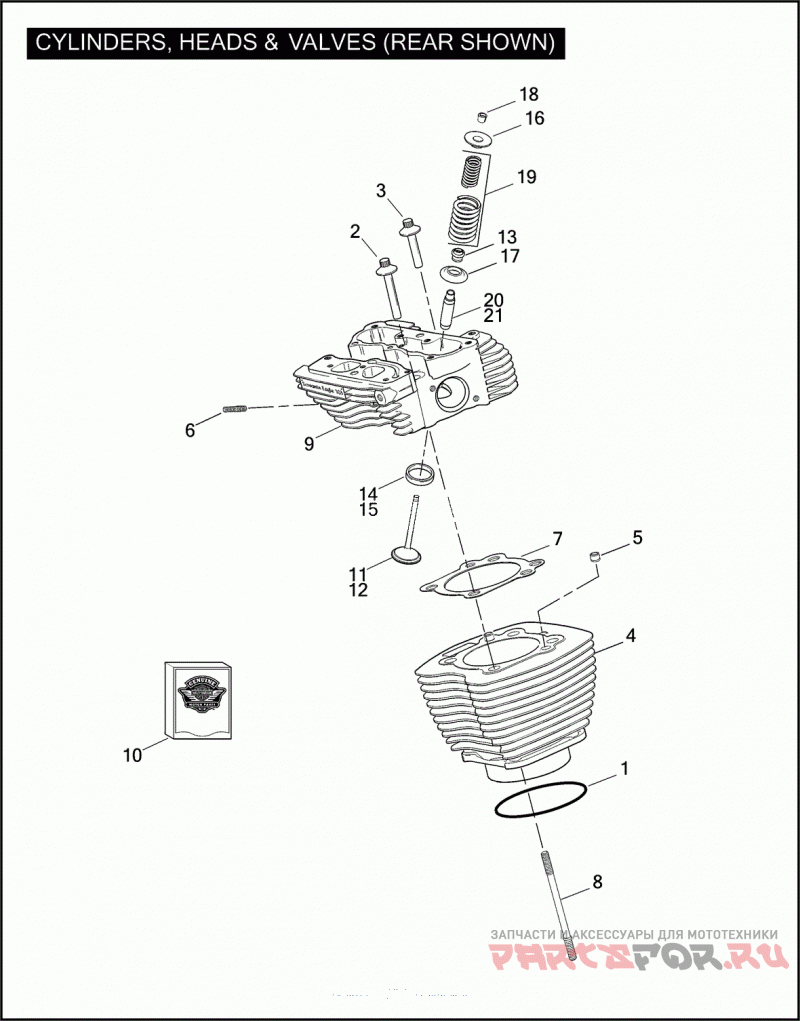

CYLINDERS, HEADS & VALVES - TWIN CAM 103 ™

Harley Davidson FLHTCSE 1PJE CVO ELECTRA GLIDE (2004)

Harley Davidson
#oem кодцена
1
11256
O-RING CYLINDER BASE
2
16478-85A
SCREW INTERNAL THREAD, 3-3/16 INCH
3
16480-92A
SCREW INTERNAL THREAD, 1-7/8 INCH
4
16548-99A
CYLINDER ASSEMBLY W/ 16595-99A (SILVER)
5
16595-99A
DOWEL RING
6
16715-83
STUD EXHAUST PORT
7
16787-99A
GASKET CYLINDER HEAD
8
16834-99A
STUD CYLINDER
9
16961-03A
HEAD CYLINDER, FRONT, W/ 18048-98A, 18049-98A & VALVE GUIDES (SILVER)
9
16967-03A
HEAD CYLINDER, REAR, W/ 18048-98A, 18049-98A & VALVE GUIDES (SILVER)
10
17052-99C
GASKET KIT TOP END, W/ 11256 & 16787-99
10
17053-99C
GASKET KIT ENGINE OVERHAUL, W/ 11256 & 16787-99
11
18044-98
VALVE EXHAUST
12
18045-98
VALVE INTAKE
13
18046-98
SEAL VALVE
14
18048-98A
SEAT EXHAUST VALVE
15
18049-98A
SEAT INTAKE VALVE
16
18269-00
COLLAR UPPER, VALVE SPRING
17
18270-00A
COLLAR LOWER, VALVE SPRING
18
18271-00
KEY COLLAR, VALVE SPRING
19
18272-00
SPRING SET INNER & OUTER, VALVE
20
18643-98
GUIDE INTAKE VALVE, 0.001 O.S.
20
18156-05
GUIDE INTAKE VALVE, 0.002 O.S.
20
18158-05
GUIDE INTAKE VALVE, 0.003 O.S.
21
18644-98
GUIDE EXHAUST VALVE, 0.001 O.S.
21
18646-98
GUIDE EXHAUST VALVE, 0.002 O.S.
21
18648-98
GUIDE EXHAUST VALVE, 0.003 O.S.
