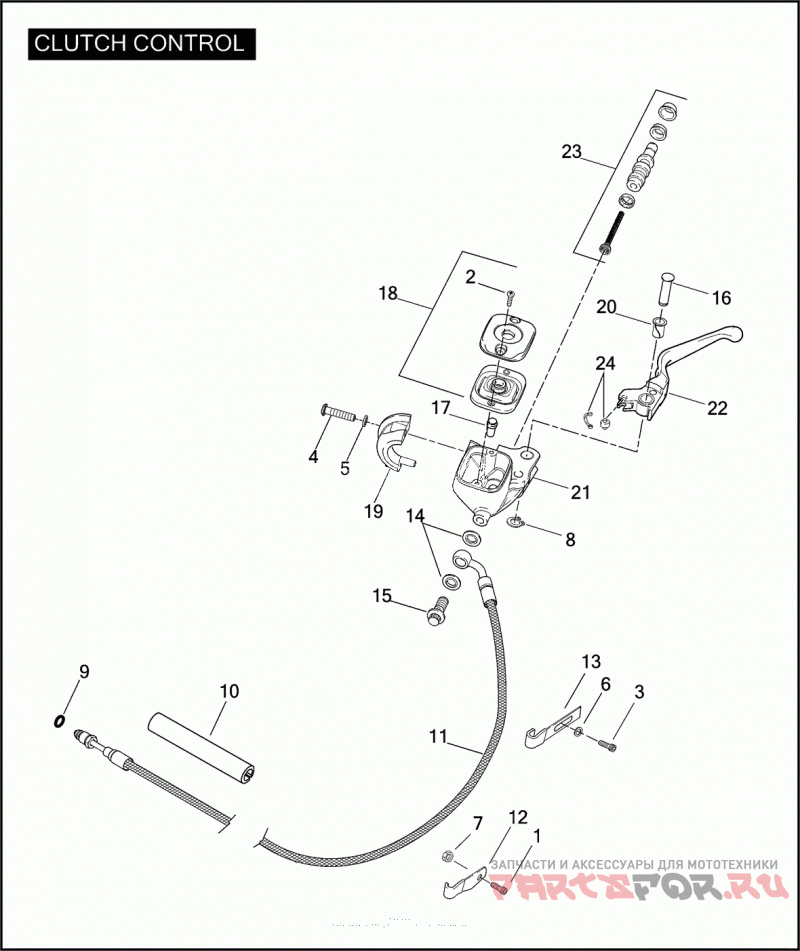

Привод управления сцеплением

Harley Davidson FLHTCSE 1PJE CVO ELECTRA GLIDE (2004)

Harley Davidson
#oem кодцена
1
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
2573
SCREW NO. 8-32 X 5/8 PAN HD.
3
2708A
SCREW 5/16-18 X 1 SOCKET HD.
4
4132
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)
5
6101
WASHER 17/64 X 27/64 X 1/16
6
6099
WASHER 1/4 X 7/16 X 1/16
7
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
7
10039
STRAP CABLE (NOT ILLUSTRATED)
8
11143
RING RETAINING
9
11348
Уплотнительное кольцо
10
28919-04
HOSE SPLIT
11
38697-04
LINE ASSEMBLY HYDRAULIC-CLUTCH, W/ 11348
12
38729-04
RETAINER CLUTCH LINE, LOWER
13
38730-04
RETAINER CLUTCH LINE, UPPER
14
41731-01
GASKET BANJO-BOLT
15
41747-82A
BOLT BANJO
16
45032-82
PIN PIVOT
17
45042-96
SIGHT GLASS RESERVOIR
18
45078-96D
KIT, COVER ASSEMBLY RESERVOIR, W/ 2573 (CHROME)
19
45282-99A
CLAMP MASTER CYLINDER (CHROME)
20
45423-92
BUSHING HAND LEVER
21
46113-02D
RESERVOIR,CHRM,CLUTCH/MSTR CYL
22
46115-02A
LEVER ASSEMBLY HAND, W/ 45423-92 (CHROME)
24
46246-01
BUSHING & ROLLER KIT
