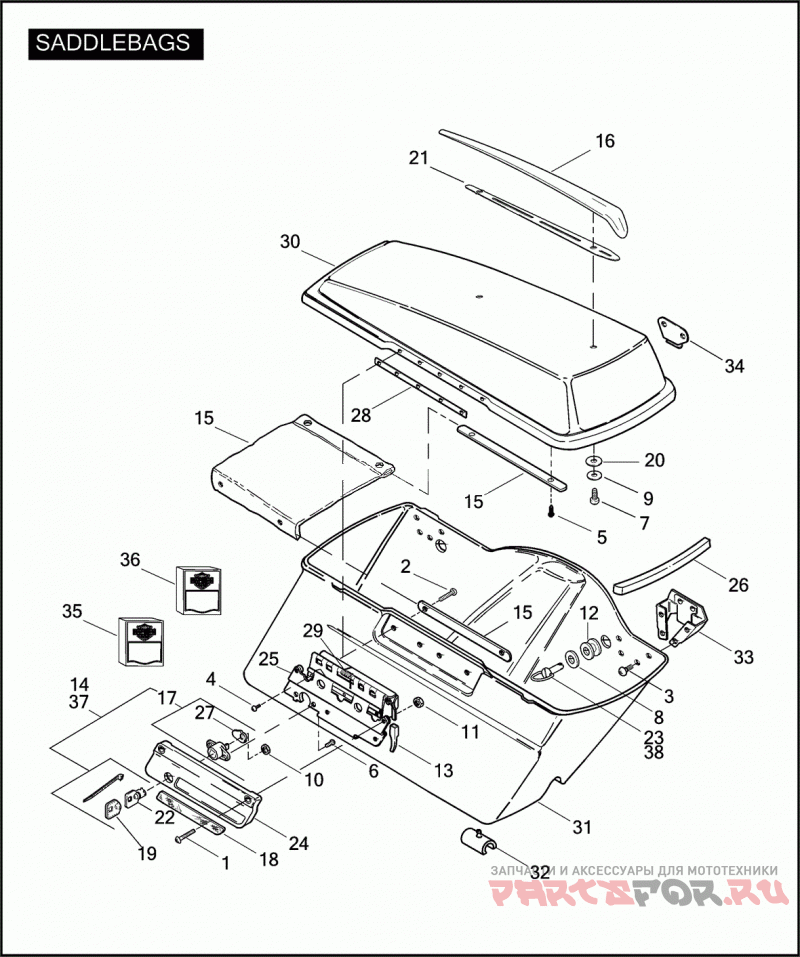

Кофры боковые

Harley Davidson FLHTCSE 1PJE CVO ELECTRA GLIDE (2004)

Harley Davidson
#oem кодцена
1
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
2
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
3
3593
SCREW NO. 8-32 X 5/16 TORX TRUSS HD.
4
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
5
3596
SCREW NO. 12-16 X 5/8 TORX HD., SELF-TAPPING
6
3656
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)
7
4134
SCREW NO. 10-24 X 3/8 TORX PAN HD.
8
6229W
WASHER 5/16 X 1-1/16 X 3/64
9
6831
WASHER 13/64 X 47/64 X 1/16
10
7586
JAMNUT 9/32-28 X 1/4
11
7608
NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)
12
11468
Уплотнитель резиновый
13
53482-93
RUB BAR LEFT (PLASTIC)
13
53483-93
RUB BAR RIGHT (PLASTIC)
14
53560-93A
LOCKSET COMPLETE WITH KEYS, IGNITION KNOB & SADDLEBAG LOCK
15
53567-93
CHECK STRAP
16
53691-04
TRIM STRIP COVER, LEFT
16
53695-04
TRIM STRIP COVER, RIGHT
17
53710-93
LOCK W/ 7586 & 90682-96 (SPECIFY KEY CODE)
18
59287-92
REFLECTOR RIGHT (RED)
18
59288-92
REFLECTOR LEFT (RED)
19
61081-92
COVER KEY HEAD
20
61121-04
WASHER 5/32 X 3/4 X 1/16 EPDM (BLACK)
21
69219-04
Прокладка
22
90115-04
PROTECTOR SADDLEBAG (NOT ILLUSTRATED)
23
90400-00A
BAIL HEAD STUD (NOTE: BAIL MUST BE REMOVED FOR SALE IN GERMANY.)
24
90601-93A
FACE PLATE RIGHT
24
90603-93A
FACE PLATE LEFT
25
90664-93
LATCH ASSEMBLY LEFT, W/ 53482-93 & 90707-00
25
90665-93
LATCH ASSEMBLY RIGHT, W/ 53483-93 & 90707-00
26
90675-93A
GASKET COVER
27
90682-93
CAM HOOK
28
90700-93
BACKING PLATE
29
90707-00A
Пружина
30
90631-04BKJ
SADDLEBAG COVER LEFT (STARLIGHT BLACK)
30
90631-04BNR
SADDLEBAG COVER LEFT (ORANGE PEARL)
30
90666-04BKJ
SADDLEBAG COVER RIGHT (STARLIGHT BLACK)
30
90666-04BNR
SADDLEBAG COVER RIGHT (ORANGE PEARL)
31
90654-04BKM
SADDLEBAG BOTTOM LEFT (ORANGE PEARL/JET BLACK)
31
90654-04BKK
SADDLEBAG BOTTOM LEFT (CANDY COBALT/STARLIGHT BLACK)
31
90667-04BKM
SADDLEBAG BOTTOM RIGHT (ORANGE PEARL/JET BLACK)
31
90667-04BKK
SADDLEBAG BOTTOM RIGHT (CANDY COBALT/STARLIGHT BLACK)
31
90752-93
SADDLEBAG BOTTOM RIGHT (PRIME)
31
90753-93
SADDLEBAG BOTTOM LEFT (PRIME)
32
90764-93
Подушка
32
90820-93D
LABEL LOAD LIMITS (NOT ILLUSTRATED)
32
90904-04BKK
SADDLEBAG ASSEMBLY LEFT, COMPLETE (CANDY COBALT/STARLIGHT BLACK)
32
90904-04BKM
SADDLEBAG ASSEMBLY LEFT, COMPLETE (ORANGE PEARL/JET BLACK)
32
90906-04BKK
SADDLEBAG ASSEMBLY RIGHT, COMPLETE (CANDY COBALT/STARLIGHT BLACK)
32
90906-04BKM
SADDLEBAG ASSEMBLY RIGHT, COMPLETE (ORANGE PEARL/JET BLACK)
33
90958-93
MOUNTING BRACKET
34
90962-93
Плита Износа
35
91630-04A
COVER INDOOR STORAGE
36
91841-93A
Вставка
36
94819-02
TOOL KIT (NOT ILLUSTRATED)
37
53442-03
LOCKSET COMPLETE WITH KEYS, IGNITION KNOB & SADDLEBAG LOCK
38
90562-02
STUD BAIL LESS (HDI)
