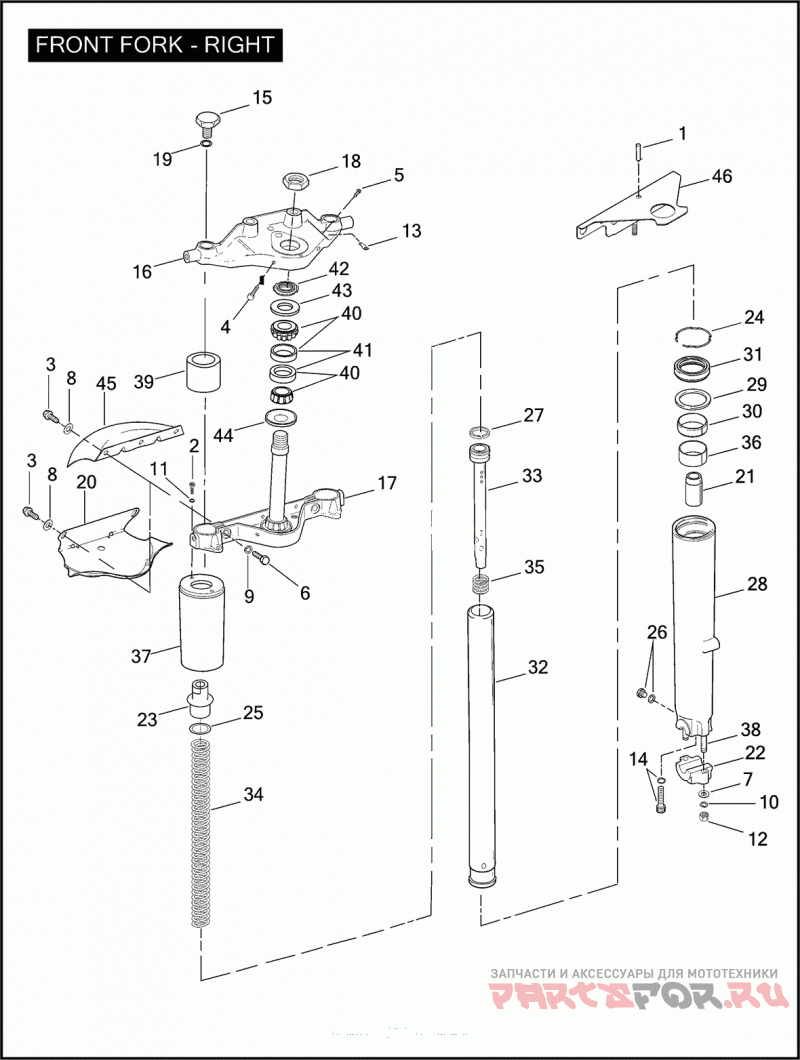

FRONT FORK - RIGHT

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2004)

Harley Davidson
#oem кодцена
1
608
Палец
2
3739
SCREW 1/4 X 5/8 HEX HD., W/LOCKPATCH, SELF-TAPPING
4
4124
SCREW NO. 10 X 5/8 SELF-TAPPING
5
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
6
4752
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)
7
6702
WASHER 5/16 X 11/16 X 1/16
9
7039
LOCKWASHER 7/16
10
7041
LOCKWASHER 5/16
11
7124
LOCKWASHER 1/4 INTERNAL TOOTH
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
12
10225
PLUG UPPER FORK BRACKET (NOT ILLUSTRATED)
13
10138
TAB ELECTRICAL GROUND
14
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
15
45419-80
BOLT FORK
16
45435-95
BRACKET UPPER FORK
17
45446-87A
FORK STEM & BRACKET ASSEMBLY
18
45718-60
NUT 1-24 X 1.5 X 0.47
19
45733-48
RUBBER WASHER
21
45803-97
LOWER STOP
22
45835-00
AXLE HOLDER RIGHT SLIDER
23
45838-77
BOLT FRONT FORK
23
46497-02A
FORK ASSEMBLY COMPLETE RIGHT
24
45842-77A
RETAINING RING OIL SEAL
25
45845-77
O-RING SLIDER TUBE PLUG
26
45858-77
DRAIN SCREW DAMPER TUBE
27
45859-77A
RING DAMPER TUBE
28
46498-00A
FORK SLIDER RIGHT, W/ 45858-77 & 45998-73
29
45865-84
SPACER SLIDER
30
45866-84
BUSHING SLIDER
31
45875-84A
Сальник
32
45890-97
SLIDER TUBE
33
45891-97
DAMPER TUBE
34
45892-02
Пружина
35
45933-86
SPRING REBOUND
36
45940-84
BUSHING SLIDER
37
45964-86
COVER SLIDER (STAINLESS STEEL)
38
45998-73
Шпилька
39
47530-79B
FORK STOP RUBBER
40
48300-60
ROLLER BEARING WITH CUP
41
48315-60
CUP BEARING
42
48333-80
BEARING ADJUSTER
43
48361-80
DUST SHIELD BEARING, UPPER
44
48365-48A
DUST SHIELD BEARING, LOWER
46
72332-02A
MOUNTING BRACKET
