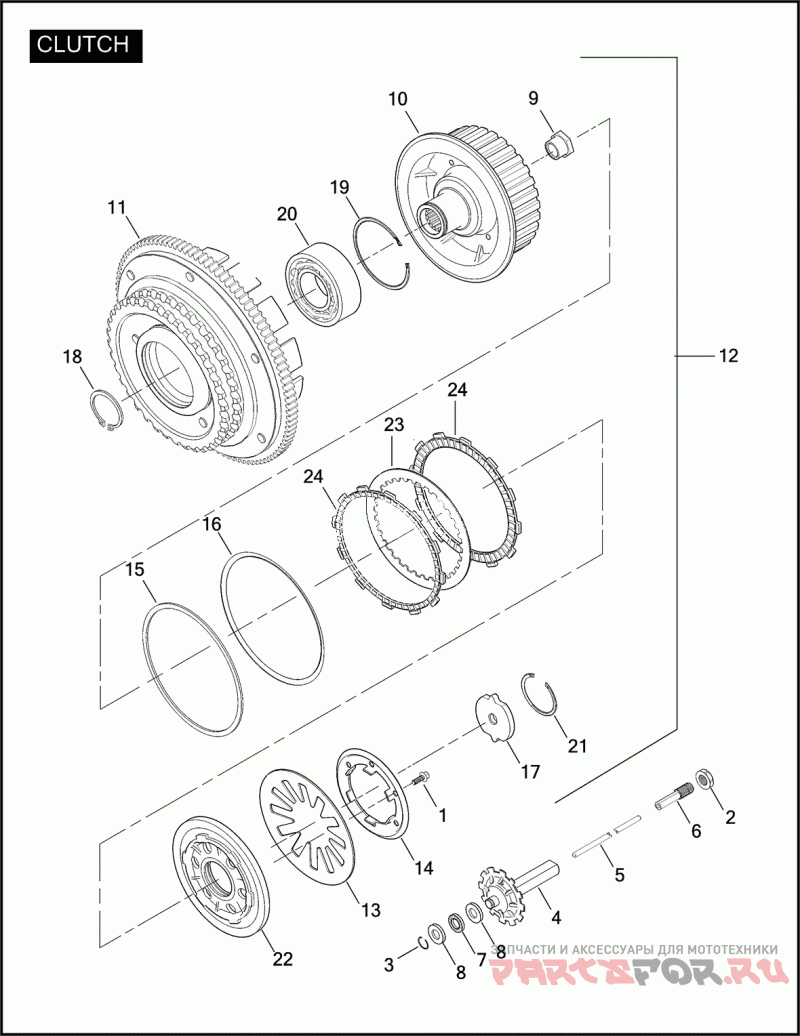

Сцепление

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2004)

Harley Davidson
#oem кодцена
1
2980
SCREW M6 X 1 X 16MM HEX FLANGE HD.
2
7848W
JAMNUT 7/16-20 X 1/4 X 11/16 (GRADE 2)
3
11096
Стопорное кольцо
4
37069-90A
OIL SLINGER ASSEMBLY
5
37088-90
PUSH ROD CLUTCH RELEASE
6
37090-98A
END PUSH ROD, LEFT
7
37312-75
BEARING PUSH ROD
8
37313-80
Упорная шайба
9
37496-90A
NUT, mainshaft
10
37550-98
CLUTCH HUB WITH HUB, THRUST WASHER, SPRING WASHER & RETAINING RING
11
37707-98A
CLUTCH SHELL & SPROCKET 36-TOOTH, W/ 37905-00 & 37906-90
12
37802-04A
CLUTCH ASSEMBLY W/ 1, 9, 10, 11, 13, 14, 15, 16, 17, 18, 21, 22, 23 & 24 (REPLACES 37802-04)
13
37871-04
SPRING DIAPHRAGM (USED WITH 37802-04)
13
37882-06A
SPRING clutch (blue)
14
37872-00
SEAT CLUTCH SPRING
15
37883-98
SEAT DAMPER SPRING
16
37884-98
DAMPER SPRING
17
37903-90
RELEASE PLATE
18
37904-90
RETAINING RING INTERNAL
19
37905-00
RETAINING RING INTERNAL
20
37906-90
BEARING BALL, DOUBLE ROW
21
37909-90
RETAINING RING INTERNAL
22
37912-00
PRESSURE PLATE CLUTCH
23
37913-98
CLUTCH PLATE
24
37932-98
FRICTION PLATE KIT WITH 9 FRICTION PLATES
