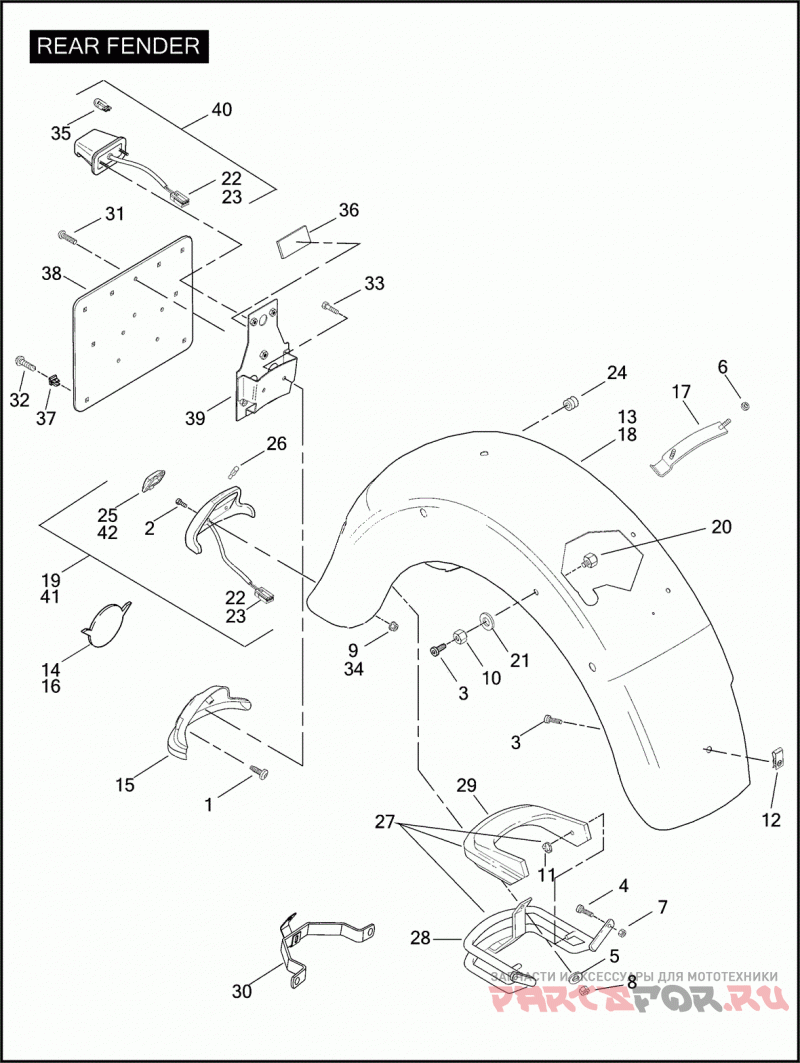

Задний бампер

Harley Davidson FLHRCI 1FRW ROAD KING CLASSIC (2004)

Harley Davidson
#oem кодцена
1
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
3
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
6036
WASHER 17/64 X 1 X 1/16
6
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
10
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
12
8144
LOCKNUT 5/16-18
15
59052-98
REAR FENDER TIP KIT W/ 3612
17
59174-99
STUD PLATE
18
59579-01B
FENDER REAR (PRIME)
20
59786-01
FENDER MOUNTING BOSS INNER
21
59788-01
FENDER MOUNTING WASHER
24
67266-94
GROMMET TURN SIGNAL
30
91140-04
BRACKET SADDLEBAG TO FENDER SUPPORT
31
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
32
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
33
3574
SCREW 1/4-20 X 3/4 FLANGE
34
7499
NUT 1/4-20 LARGE FLANGE
35
53436-97
BULB WEDGE (HDI)
36
59259-90
REFLECTOR RED (HDI)
37
59292-94
NUT PLASTIC (HDI ONLY)
38
60026-97
PLATE LICENSE BACK (HDI)
39
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
