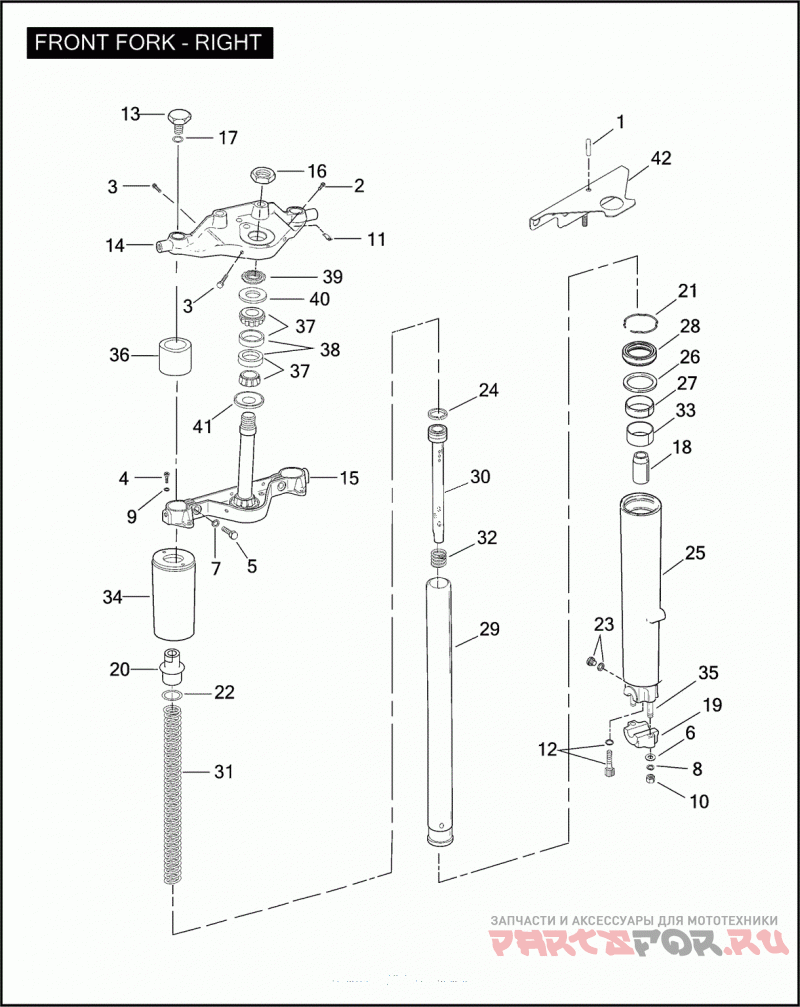

FRONT FORK - RIGHT

Harley Davidson FLHPI 1FHW ROAD KING POLICE (2004)

Harley Davidson
#oem кодцена
1
608
Палец
2
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
3
4124
SCREW NO. 10 X 5/8 SELF-TAPPING
4
3739
SCREW 1/4 X 5/8 HEX HD., W/LOCKPATCH, SELF-TAPPING
5
4752
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)
6
6702
WASHER 5/16 X 11/16 X 1/16
7
7039
LOCKWASHER 7/16
8
7041
LOCKWASHER 5/16
9
7124
LOCKWASHER 1/4 INTERNAL TOOTH
10
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
10
10225
PLUG UPPER FORK BRACKET (NOT ILLUSTRATED)
11
10138
TAB ELECTRICAL GROUND
12
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
13
45419-80
BOLT FORK
14
45435-95
BRACKET UPPER FORK
15
45446-87A
FORK STEM & BRACKET ASSEMBLY
16
45718-60
NUT 1-24 X 1.5 X 0.47
17
45733-48
RUBBER WASHER
18
45803-97
LOWER STOP
19
45835-00
AXLE HOLDER RIGHT SLIDER
20
45838-77
BOLT FRONT FORK
20
46497-02A
FORK ASSEMBLY COMPLETE RIGHT
21
45842-77A
RETAINING RING OIL SEAL
22
45845-77
O-RING SLIDER TUBE PLUG
23
45858-77
DRAIN SCREW DAMPER TUBE
24
45859-77A
RING DAMPER TUBE
25
46498-00A
FORK SLIDER RIGHT, W/ 45858-77 & 45998-73
26
45865-84
SPACER SLIDER
27
45866-84
BUSHING SLIDER
28
45875-84A
Сальник
29
45890-97
SLIDER TUBE
30
45891-97
DAMPER TUBE
31
45892-02
Пружина
32
45933-86
SPRING REBOUND
33
45940-84
BUSHING SLIDER
34
45964-86
COVER SLIDER (STAINLESS STEEL)
35
45998-73
Шпилька
36
47530-79B
FORK STOP (RUBBER)
37
48300-60
ROLLER BEARING WITH CUP
38
48315-60
CUP BEARING
39
48333-80
BEARING ADJUSTER
40
48361-80
DUST SHIELD BEARING, UPPER
41
48365-48A
DUST SHIELD BEARING, LOWER
42
72332-02A
MOUNTING BRACKET
