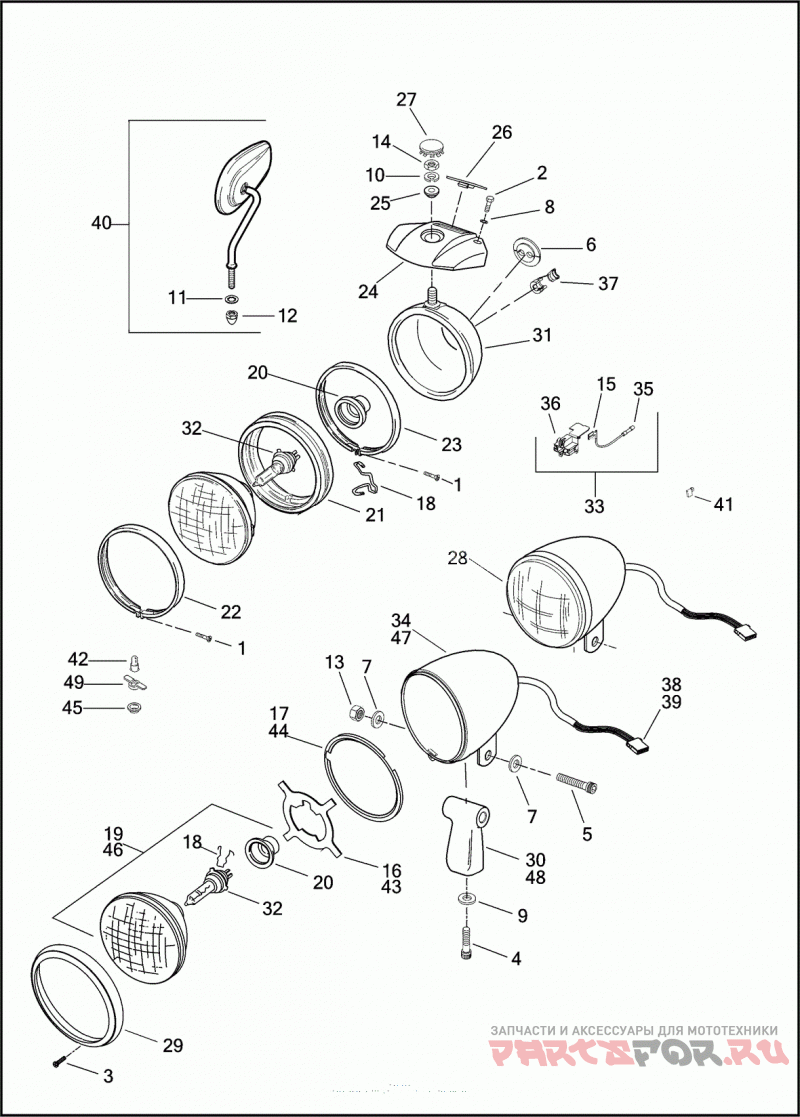

HEADLAMP & MIRROR

Harley Davidson XL883R 4CKM SPORTSTER 883R (2003)

Harley Davidson
#oem кодцена
1
2566
SCREW NO. 8-32 X 7/8 SELF-TAPPING
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
6
6272
Уплотнитель резиновый
8
6702
WASHER 5/16 X 11/16 X 1/16
10
7068
LOCKWASHER 1/2
11
7155
LOCKWASHER 5/16 INTERNAL TOOTH (BLACK)
12
7331
ACORN NUT 5/16-24
14
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
15
9847
WIRE TERMINAL FEMALE SPADE, RIGHT
15
9848
WIRE TERMINAL FEMALE SPADE, LEFT
18
67685-92
CLIP BULB
19
67698-81D
LENS ASSEMBLY 5-3/4 INCH, W/ 67685-92, 67705-92, 68329-03 & LENS
20
67705-92
BOOT HEADLAMP
21
67719-63
MOUNTING RING (RUBBER)
22
67725-63
MOLDING RING OUTER
23
67744-75
MOLDING RING INNER
24
67963-98
BRACKET HEADLAMP (BLACK)
25
67815-59A
WASHER HEADLAMP MOUNTING
26
67972-98
DECAL TRIM
27
67973-98
PLUG HEADLAMP BRACKET (BLACK)
31
68061-94B
HOUSING HEADLAMP
32
68329-03
BULB HALOGEN
33
68705-93A
CONNECTOR ASSEMBLY HEADLAMP, W/ 9847, 9848, 70586-93 & 72056-92
35
70586-93
CONNECTOR BUTT SPLICE, 16-22 GAUGE
36
72056-92
CONNECTOR SPADE TERMINAL (3-WAY)
37
72507-94
Уплотнитель резиновый
40
91982-03B
MIRROR KIT RIGHT, SHORT, W/ 7155 & 7331 (BLACK)
40
91983-03B
MIRROR KIT LEFT, SHORT, W/ 7155 & 7331 (BLACK)
41
9898
TERMINAL FEMALE FLAG, #14-16 GAUGE WIRE (HDI)
42
53438-92
BULB POSITION LAMP (HDI)
45
67691-92
GROMMET (HDI)
46
67763-92A
LENS ASSEMBLY RIGHT DIP, W/ 67691-92, 67705-92, 68329-03 & LENS (HDI)
46
67781-92A
LENS ASSEMBLY LEFT DIP, W/ 67691-92, 67705-92, 68329-03 & LENS (HDI, AUSTRALIA)
49
68650-92
SOCKET BULB (HDI)
