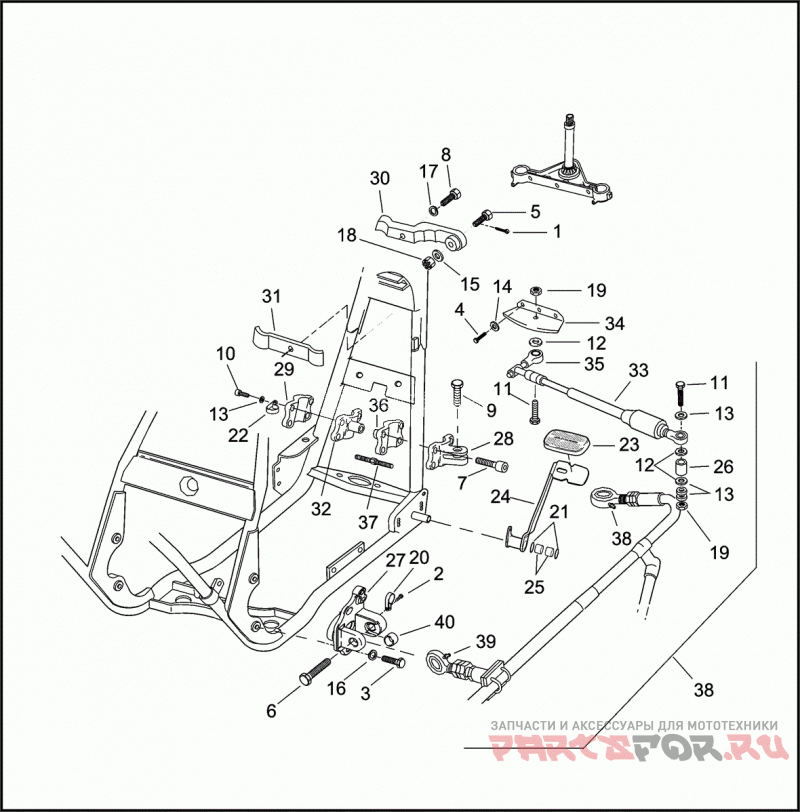

SIDECAR CONNECTION KIT

Harley Davidson TLEU TLEU ULTRA SIDECAR (2003)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | TLE/TLEU
2
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | TLE/TLEU
3
3782
BOLT 7/16-14 X 1-1/4 hex hd. (Grade 5) | TLE/TLEU
4
3892
SCREW 1/4 X 5/8 self-tapping | TLE/TLEU
5
3902A
SCREW 1/2-13 X 1-3/4 hex hd. | TLE/TLEU
6
4045
SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | TLE/TLEU
7
4357
SCREW 3/8-16 X 1-3/4 knurled hd. (Grade 8) | TLE/TLEU
8
4052
BOLT 1/2-13 X 1-3/4 hex hd. (Grade 5) | TLE/TLEU
9
4151
SCREW 3/4-10 X 2-1/4 hex hd. (Grade 8) | TLE/TLEU
10
4356
SCREW 3/8-16 X 1-1/2 knurled hd. (Grade 8) | TLE/TLEU
11
4420
SCREW 3/8-16 X 2.75 hex hd. (Grade 5) | TLE/TLEU
4720W
BOLT 3/8-16 X 1-3/4 hex hd. (Grade 5) | TLE/TLEU
12
6519
WASHER 13/32 X 1-1/32 X 1/8 | TLE/TLEU
13
6701
WASHER 3/8 X 13/16 X 1/16 | TLE/TLEU
14
6703
WASHER 1/4 X 5/8 X 1/16 | TLE/TLEU
15
6723
WASHER 17/32 X 1-1/2 X 9/64 | TLE/TLEU
16
7039
LOCKWASHER 7/16 | TLE/TLEU
17
7068
LOCKWASHER 1/2 | TLE/TLEU
18
7843
NUT 1/2-13 slotted | TLE/TLEU
19
7601
LOCKNUT 3/8-16 flange | TLE/TLEU
20
10036
CLAMP | TLE/TLEU
21
11364
O-RING | TLE/TLEU
22
42327-70
CLAMP clutch cable retainer | TLE/TLEU
23
42416-83
PAD brake pedal | TLE/TLEU
24
42407-87C
BRAKE PEDAL rear, w/ 57217-02 | TLE/TLEU
25
57217-02A
BUSHING BRAKE LEVER | TLE/TLEU
26
59938-72
SPACER mounting | TLE/TLEU
27
87114-93A
MOUNT KIT rear, w/ 87181-02 spacer | TLE/TLEU
28
87122-83A
MOUNTING BRACKET | TLE/TLEU
29
87123-83
MOUNTING BRACKET lower left, outer | TLE/TLEU
30
87131-83C
UPPER CONNECTION front | TLE/TLEU
31
87132-92
UPPER CONNECTION rear | TLE/TLEU
32
87137-92
STABILIZER MOUNT left | TLE/TLEU
33
87141-83
STEERING DAMPER | TLE/TLEU
34
87143-83
BRACKET steering damper | TLE/TLEU
35
87144-83
ROD END BALL JOINT | TLE/TLEU
36
87148-92
STABILIZER MOUNT right | TLE/TLEU
37
87156-83
STABILIZER ADJUSTER | TLE/TLEU
38
87166-99B
CONNECTION KIT sidecar | TLE/TLEU
39
87162-01
GREASE FITTING | TLE/TLEU
40
87181-02
SPACER | TLE/TLEU
