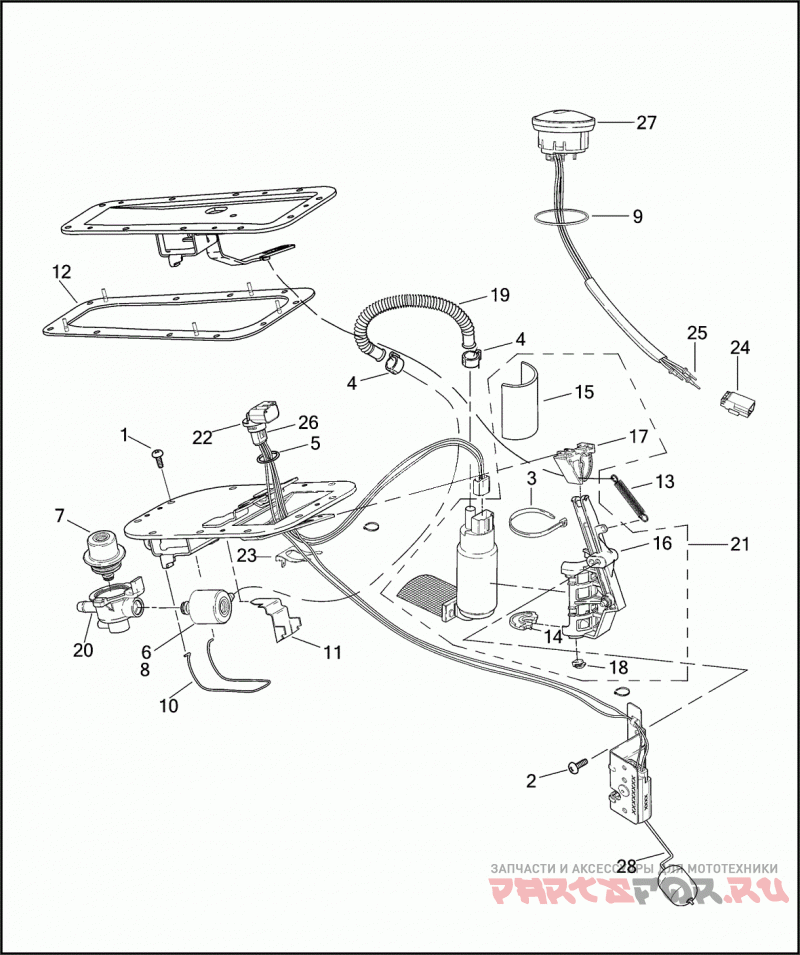

FUEL PUMP - FUEL INJECTED

Harley Davidson FXSTDSE 1PFD CVO SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
1314
SCREW K50-2.24 X 17.25MM TORX TRUSS HD.
3
10006
CABLE STRAP
4
10222
Зажим
5
11117A
Уплотнительное кольцо
5
11351
O-RING (NOT ILLUSTRATED)
6
11380
Уплотнительное кольцо
7
27408-01
Регулятор
8
61001-01
FUEL FILTER KIT
9
61192-96A
GASKET FUEL GAUGE
10
61209-01A
BAIL
11
61231-01
BAIL BRACKET
12
61315-02
GASKET TOP PLATE
13
61583-02
Пружина
14
61960-00
RUBBER CUSHION (USED W/ 62897-01A)
14
61960-04
RUBBER CUSHION (USED W/ 62897-01B)
15
61961-00
RUBBER SLEEVE
16
62163-01A
HOUSING FUEL PUMP (USED W/ 62897-01A)
16
62163-04
HOUSING FUEL PUMP (USED W/ 62897-01B)
17
62165-01
ENDCAP HOUSING FUEL PUMP
18
62188-01
SPACER RUBBER (USED W/ 62897-01A)
18
62188-04
SPACER RUBBER (USED W/ 62897-01B)
19
62357-00
HOSE FUEL PUMP TO FILTER
20
62373-01
REGULATOR HOUSING
21
62897-01B
PUMP ASSEMBLY FUEL, W/ 10006, 61960-00, 61961-00, 62163-04, 62165-01 & 62188-04
22
72439-00B
CONNECTOR ASSEMBLY KIT 3-WAY, W/ 72458-00
23
72458-00
CONNECTOR KIT W/ 11380
24
72904-01BK
PIN HOUSING 4-WAY
25
72990-01
PIN TERMINAL
26
74191-98
SOCKET TERMINAL
27
75099-01A
FUEL GAUGE W/ 72990-01
27
75130-01D
MODULE ASSEMBLY FUEL PUMP, COMPLETE, W/ 2, 4, 5, 6, 7, 10, 11, 13, 19, 20, 21, 22 & 23
28
75142-02
FUEL LEVEL SENDER (USED W/ 75130-01B)
28
75298-05
FUEL LEVEL SENDER KIT (USED W/ 75130-01D)
