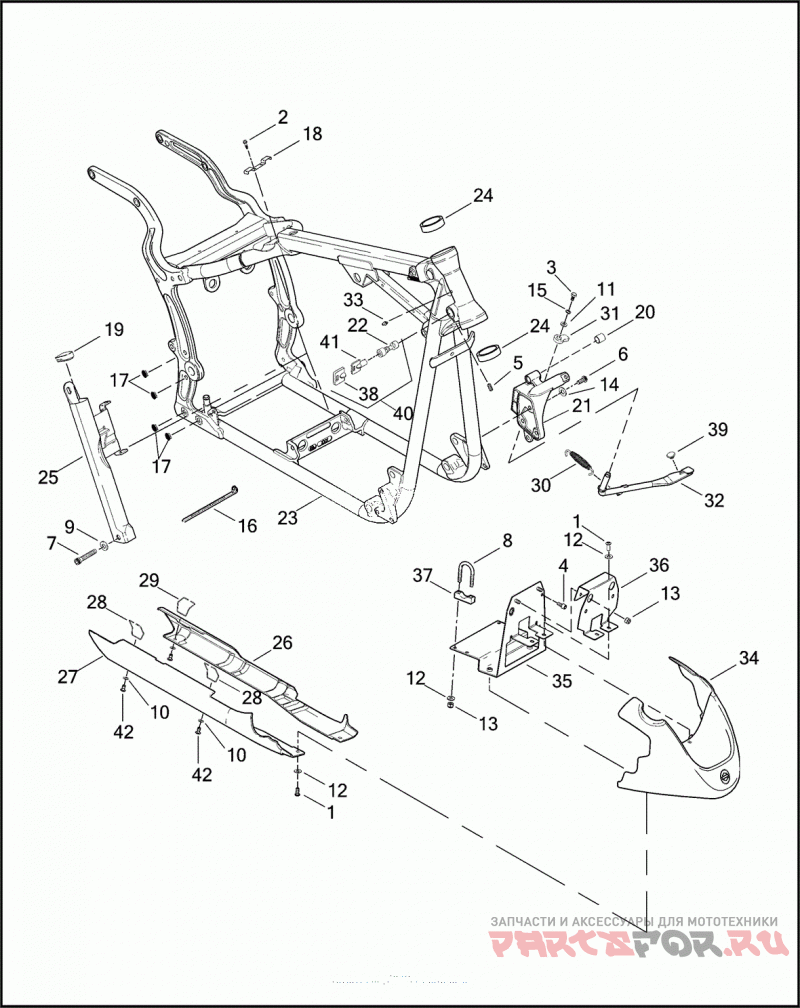

FRAME & JIFFY STAND

Harley Davidson FXSTDSE 1PFD CVO SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
924
SCREW 1/4-20 X 33/64 SOCKET PAN HD.
2
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
3
2882W
SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)
4
2941
SCREW 1/4-20 X 35/64 SOCKET HD., SELF-TAPPING (GRADE 5)
5
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
6
4163
SCREW 3/4-16 X 7/8 TORX BUTTON HD. (GRADE 8)
7
4311
SCREW 3/8-16 X 1-5/8 SOCKET HD.
8
5228
Болт
9
6400HB
WASHER 5/16 X 13/16 X 3/32
10
6425
Шайба
11
6702
WASHER 5/16 X 11/16 X 1/16
12
6703
WASHER 1/4 X 5/8 X 1/16
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
6812
WASHER 13/32 X 11/16 X 1/16
15
7041
LOCKWASHER 5/16
16
10006
CABLE STRAP
16
10065
CABLE STRAP KEYS
17
10040
Заглушка
18
10193
WIRE CLAMP
19
31741-00
PLUG SEAT POST
20
33708-94
BEARING SLEEVE
21
33921-00
BRACKET JIFFY STAND, SHIFT LEVER & FOOTREST
22
45680-90
FORK LOCK (SPECIFY KEY CODE)
23
46803-04
FRAME (CENTENNIAL GOLD)
24
48315-60
BEARING CUP
25
48895-03BFA
POST ASSEMBLY SEAT (CENTENNIAL GOLD)
26
49901-03BFA
FAIRING FRAME RAIL, LEFT (CENTENNIAL GOLD)
27
49902-03BFA
FAIRING FRAME RAIL, RIGHT (CENTENNIAL GOLD)
28
49903-03A
HANGER FRAME RAIL, RIGHT
29
49929-03A
HANGER FRAME RAIL, LEFT
30
50005-85A
SPRING JIFFY STAND LEG
31
50015-74A
LEG STOP
32
50285-03
LEG JIFFY STAND (CHROME)
33
83459-09
FITTING lubrication
34
57045-03BFA
FAIRING CHIN (CENTENNIAL GOLD)
35
57049-03
BRACKET CHIN FAIRING MOUNT
36
57047-03
BRACKET REGULATOR MOUNT
37
58445-00
BLOCK U-BOLTS, FAIRING MOUNT
38
61081-92
COVER KEY HEAD SET
39
62123-66A
Амортизатор ударов
40
71450-04
LOCKSET W/ 10065, 45680-90, 61081-92, 71452-91A & IGNITION SWITCH
42
91285-03
STUD 1/4 TURN
