Приборы

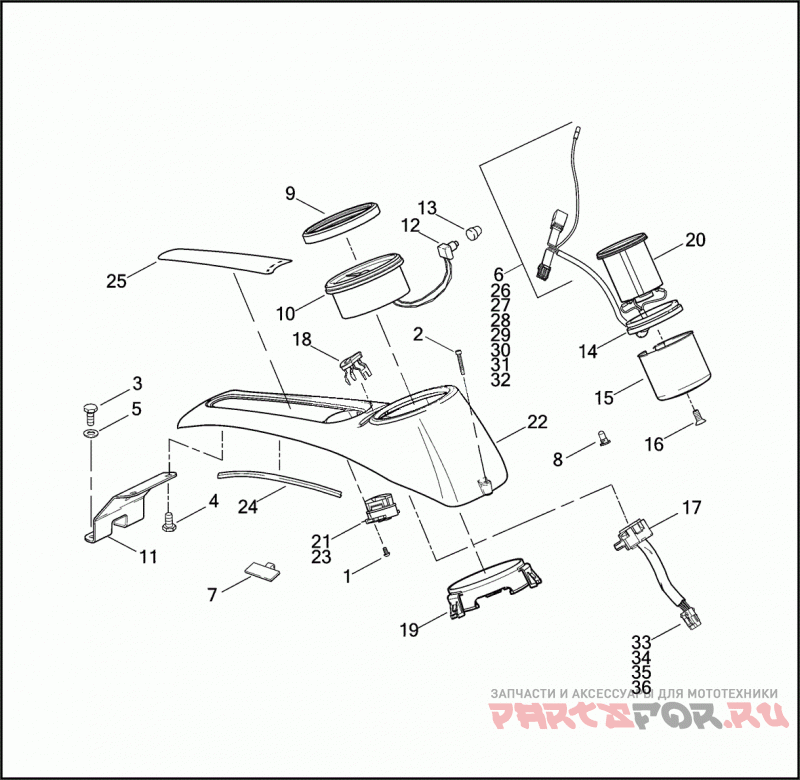

Harley Davidson FXSTDSE 1PFD CVO SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
3008
SCREW NO. 10-24 X 1-1/4 TORX HD., W/ADHESIVE
3
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
4
4194
SCREW NO. 10-24 X 5/16 TORX PAN HD. (GRADE 5)
5
6716
WASHER NO. 10 X 1/2 X 3/64
6
9856
TERMINAL RING
7
10102
Зажим
7
10103
Зажим
8
52425-98
BULB TACHOMETER
8
61081-92
COVER KEY HEAD SET (NOT ILLUSTRATED)
9
67223-00A
SEAL SPEEDOMETER
10
67269-03
SPEEDOMETER MPH
10
67309-03
SPEEDOMETER KPH (CANADA)
11
67423-00
BRACKET INSTRUMENT PANEL MOUNTING
12
67854-98
RESET SWITCH SPEEDOMETER
13
67880-94
BOOT RESET SWITCH
14
67952-96
GASKET ISOLATION
15
67953-96
HOUSING TACHOMETER
16
67956-96
SCREW 1/4-20 X 3/4 SOCKET FLAT HD.
17
68892-00A
HOUSING ASSEMBLY INDICATOR LIGHTS, W/ 74118-98BK, 74158-98, 74193-98 & 74195-98
18
68893-00A
BEZEL INDICATOR LIGHTS
19
68894-00
BACK CLAMP
20
69074-02
TACHOMETER W/ 52425-98 (SILVER)
21
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
22
71439-00
INSTRUMENT PANEL
23
71450-04
LOCKSET COMPLETE, W/ KEYS, KEY COVER, CABLE STRAP, FORK LOCK & IGNITION SWITCH
24
71464-00
TRIM INSTRUMENT PANEL
25
71470-03
Планка
26
71721-03
WIRE HARNESS TACHOMETER
27
72044-71A
HOUSING PLUG SOCKET
28
72038-71A
TERMINAL SOCKET
29
73104-96BK
HOUSING PIN 4-PLACE
30
73154-96BK
HOUSING SOCKET 4-PLACE
31
73190-96
TERMINAL PIN, 20-16 GAUGE
32
73191-96
CONTACT SOCKET, 20-16 GAUGE
33
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
34
74158-98
SECONDARY LOCK 8-WAY SOCKET
35
74193-98
SOCKET TERMINAL
36
74195-98
SEAL PIN
