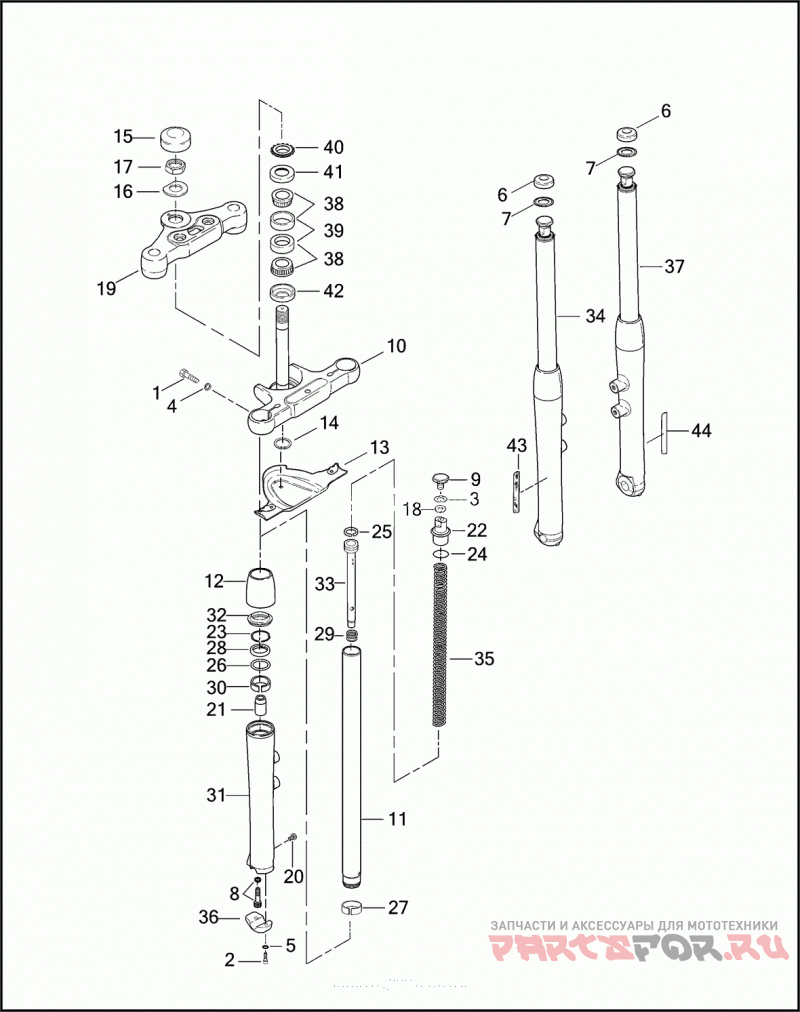

Передняя вилка

Harley Davidson FXSTDSE 1PFD CVO SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
992
SCREW 7/16-20 X 1-1/2 TORX BUTTON HD.
2
4213
SCREW M8 X 1.25 X 30 BUTTON HD.
3
5710
WASHER 63/64 X 1-1/2 X 5/64
4
7039
LOCKWASHER 7/16
5
7062
LOCKWASHER M8.4 X 13 X 1.2
6
44503-03
CAP FORK NUT
7
44504-03
COLLAR FORK NUT
8
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
9
45419-80
BOLT SLIDER TUBE
10
45475-00A
STEM & BRACKET W/ 48365-48A
12
45482-03
CAP FORK SLIDER
13
45568-03
COVER LOWER TRIPLE TREE
14
45611-86
Стопорное кольцо
15
45670-80A
CAP FORK STEM
16
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
17
45718-60
NUT 1-24 X 1.5 X 0.47
18
45733-48
OIL SEAL FORK TUBE PLUG
19
45769-00
BRACKET UPPER
20
45790-80
Винт
21
45803-97
LOWER STOP
22
45838-77
PLUG FORK TUBE
23
45842-77A
RETAINING RING OIL SEAL
24
45845-77
O-RING SLIDER TUBE PLUG
25
45859-77A
RING DAMPER TUBE
26
45865-84
WASHER SLIDER
27
45866-84
BUSHING SLIDER TUBE
28
45875-84A
OIL SEAL SLIDER
29
45933-86
SPRING DAMPER TUBE
30
45940-84
BUSHING SLIDER
31
46067-00
SLIDER LEFT, W/ 45790-80
31
46221-03
SLIDER RIGHT, W/ 45790-80
32
46175-00
DUST SHIELD
33
46176-00
DAMPER TUBE COMPLETE TUBE, W/ 45859-77A
34
46219-03
FORK ASSEMBLY RIGHT
36
46222-03
AXLE HOLDER RIGHT
37
46263-03
FORK ASSEMBLY LEFT
38
48300-60
ROLLER BEARING W/ 48315-60
39
48315-60
BEARING CUP
40
48324-00A
Гайка
41
48361-80
DUST SHIELD BEARING, UPPER
42
48365-48A
DUST SHIELD BEARING, LOWER
43
59481-00
REFLECTOR AMBER, RIGHT
44
59482-00
REFLECTOR AMBER, LEFT
