INSTRUMENTS - FXSTD/I для мотоциклов Harley Davidson FXSTDI 1JBB SOFTAIL DEUCE (2003) (2003)

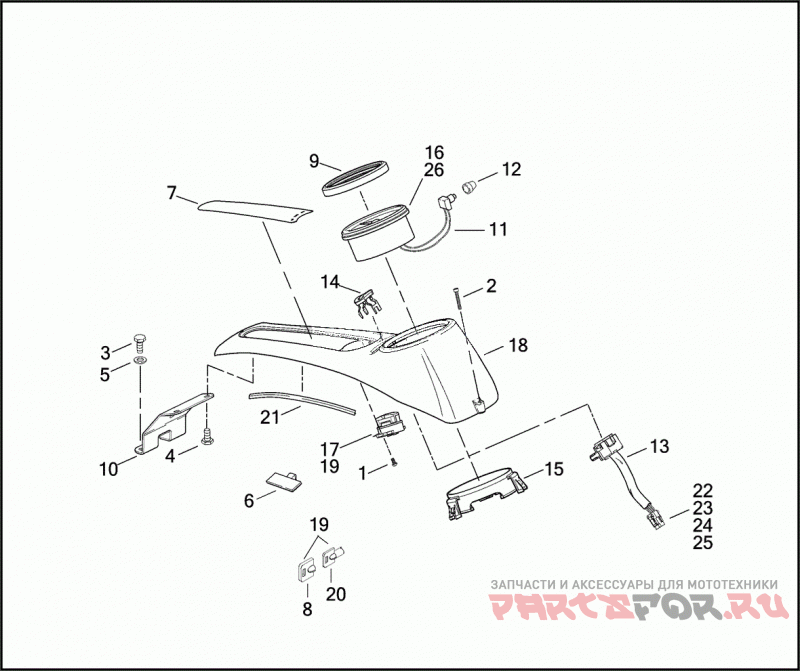

INSTRUMENTS - FXSTD/I

Harley Davidson FXSTDI 1JBB SOFTAIL DEUCE (2003)

oem код

название

цена

2501A

SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING

3008

SCREW NO. 10-24 X 1-1/4 TORX HD., W/ADHESIVE

3658

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

4194

SCREW NO. 10-24 X 5/16 TORX PAN HD. (GRADE 5)

6716

WASHER NO. 10 X 1/2 X 3/64

10102

Зажим

10103

Зажим

60996-03

NAME PLATE (NON-SERIAL)

61081-92

COVER KEY HEAD SET

67223-00A

SEAL SPEEDOMETER

67423-00

BRACKET INSTRUMENT PANEL MOUNTING

67854-98

RESET SWITCH SPEEDOMETER

67880-94

BOOT RESET SWITCH

68892-00A

HOUSING ASSEMBLY INDICATOR LIGHTS, W/ 74118-98BK, 74158-98, 74193-98 & 74195-98

68893-00A

BEZEL INDICATOR LIGHTS

68894-00

BACK CLAMP

68901-00A

SPEEDOMETER MPH

71313-96A

IGNITION SWITCH (SPECIFY KEY CODE)

71439-00

INSTRUMENT PANEL

71450-04

LOCKSET COMPLETE, W/ 61081-92, 71452-91A, CABLE STRAP, FORK LOCK & IGNITION SWITCH

71464-00

TRIM INSTRUMENT PANEL

74118-98BK

SOCKET HOUSING 8-WAY (BLACK)

74158-98

SECONDARY LOCK 8-WAY SOCKET

SOCKET TERMINAL

SEAL PIN

SPEEDOMETER KPH

SPEEDOMETER MPH/KPH
