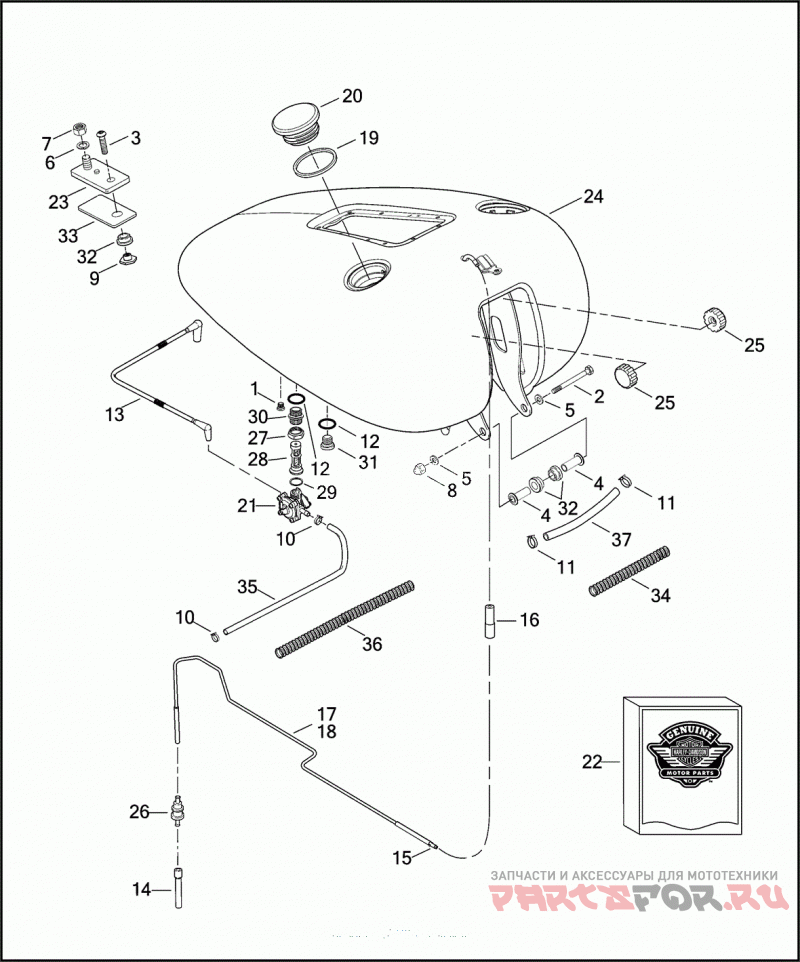

FUEL TANK - FXSTD

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
758
PLUG DRAIN
2
4197
BOLT 3/8-16 X 3-3/4 HEX HD. (GRADE 5)
3
4763
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD. (GRADE 5)
4
5818A
BUSHING FRONT TANK MOUNT
5
6400HB
WASHER 5/16 X 13/16 X 3/32
6
6702
WASHER 5/16 X 11/16 X 1/16
7
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
8
7862
ACORN NUT 3/8-16 (CHROME)
9
7965
TEE NUT
10
10014
CLAMP FUEL HOSE
11
10038A
CLAMP FUEL CROSSOVER HOSE
12
11323A
Уплотнительное кольцо
13
26567-99
VACUUM HOSE ASSEMBLY
14
27072-00
HOSE VALVE TO ATMOSPHERE
15
27249-96
CONNECTOR STRAIGHT
16
27560-00
HOSE REDUCER
17
28828-00
TUBE TANK TO VALVE
18
28838-00
VENT LINE ASSEMBLY FUEL TANK TO VAPOR VALVE, W/ 27249-96 & 28828-00
19
61109-85D
Прокладка
20
61272-92C
CAP FUEL FILLER, RIGHT
21
61338-02
FUEL VALVE VACUUM ACTUATED, W/ GASKET
22
61450-95
FUEL FILLER RESTRICTOR KIT (REQUIRED W/ CATALYTIC MUFFLERS)
23
61721-00A
BRACKET ASSEMBLY REAR
24
62082-00D
FUEL TANK (PRIMED)
25
62146-00
FRONT TANK MOUNT
26
62150-85
VAPOR VALVE
27
62161-02
NUT FUEL VALVE
28
62166-02
FILTER FUEL VALVE
29
62172-02
GASKET FUEL VALVE
30
62842-00
ADAPTER FUEL VALVE
31
62843-00
PLUG FUEL VALVE
32
62881-00
GROMMET FUEL TANK, LOWER REAR & FRONT
33
62919-00
Проставка
34
62555-95
INSULATOR 5/8 INCH I.D. (NYLON) (8 FEET)
35
63501-68B
HOSE 1/4 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
36
62555-95
INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length.
37
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
