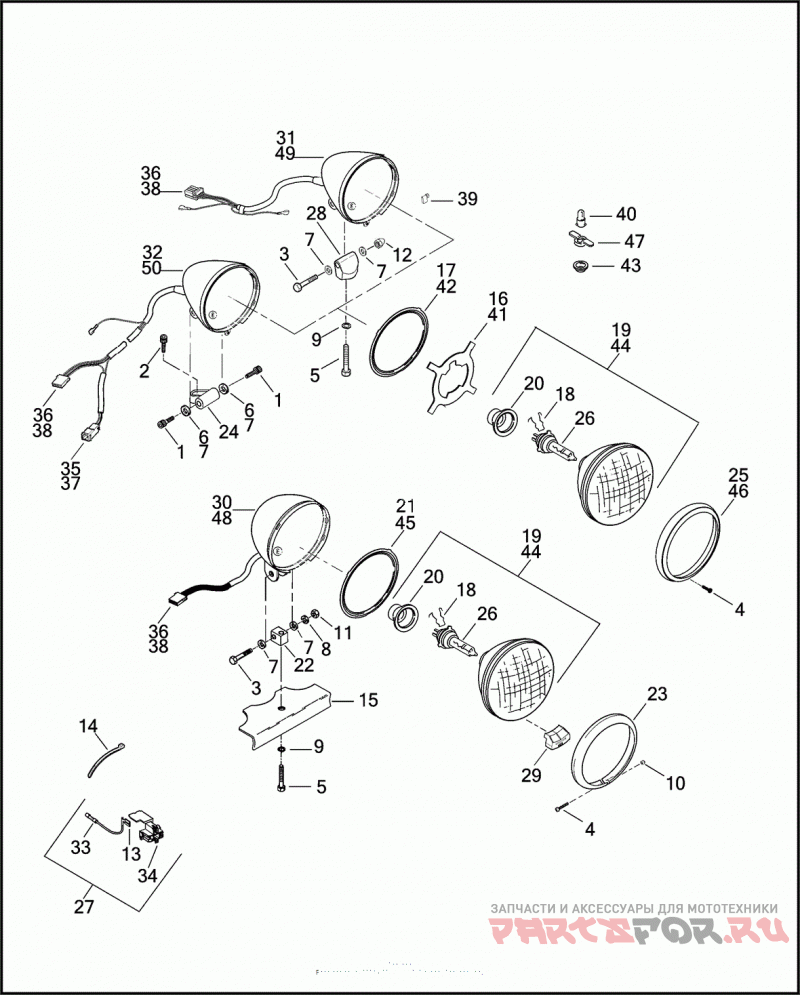

Фара

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
3
3509
BOLT 3/8-16 X 2-3/4 HEX HD. (GRADE 8)
4
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
5
3775
SCREW 3/8-16 X 2 HEX HD. (GRADE 5)
7
6474
WASHER 3/8 X 5/16 X 3/16 HARDENED
9
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
12
7862
ACORN NUT 3/8-16 (CHROME)
13
9847
WIRE TERMINAL FEMALE SPADE, RIGHT
13
9848
WIRE TERMINAL FEMALE SPADE, LEFT
14
10065
CABLE STRAP
16
67601-94A
GASKET HEADLAMP
17
67603-94A
ADAPTER RING
18
67685-92
CLIP BULB
19
67698-81D
LENS ASSEMBLY 5-3/4 INCH, W/ 67685-92, 67705-92 & 68329-03
20
67705-92
BOOT CONNECTOR
25
67894-93A
TRIM RING (CHROME)
26
68329-03
BULB HB2/H4
27
68705-93A
CONNECTOR ASSEMBLY HEADLAMP, W/ 9847, 9848, 70586-93 & 72056-92
28
69163-00
MOUNTING BLOCK
31
69715-05A
HEADLAMP SHELL ASSEMBLY 5-3/4 INCH
33
70586-93
CONNECTOR BUTT SPLICE, 16-22 GAUGE
34
72056-92
INSULATOR SPADE TERMINAL (3-WAY)
36
73154-96BK
SOCKET HOUSING 4-PLACE
38
73191-96
CONTACT SOCKET 16-20 GAUGE
39
9898
TERMINAL FEMALE FLAG (HDI)
40
53438-92
BULB POSITION LAMP
41
67602-94
GASKET HEADLAMP
42
67604-94
ADAPTER RING
43
67691-92
GROMMET POSITION LAMP
44
67763-92A
LENS ASSEMBLY 5-3/4 INCH, RIGHT DIP, W/ 67691-92, 67705-92 & 68329-03
44
67781-92A
LENS ASSEMBLY 5-3/4 INCH, LEFT DIP, W/ 67691-92, 67705-92 & 68329-03
46
67894-93A
TRIM RING
47
68650-92
SOCKET POSITION LAMP
49
69715-05A
HEADLAMP SHELL ASSEMBLY 5-3/4 INCH
