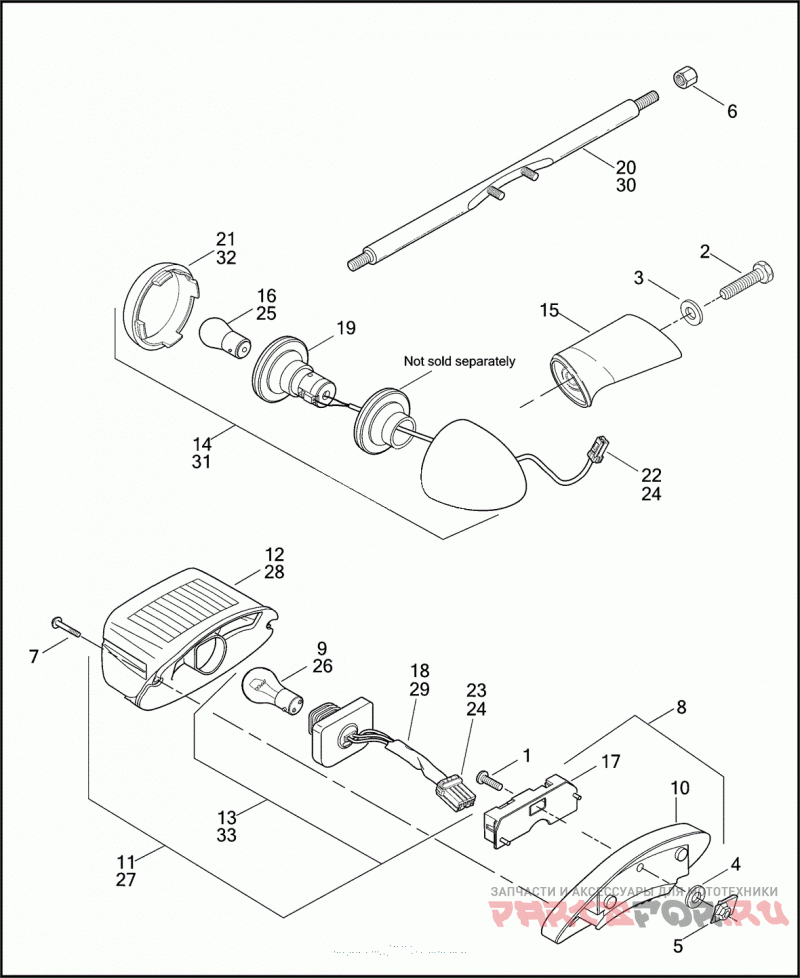

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDXT 1GLV DYNA SUPER GLIDE T-SPORT (2003)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7964
J-NUT
6
7985
Гайка
7
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
8
68066-99A
BASE ASSEMBLY CHROME
9
68168-89A
BULB TAIL LAMP (EARLY MODEL YEAR)
9
68167-88
BULB TAIL LAMP, WEDGE MOUNT (LATE MODEL YEAR)
10
68296-99A
TAIL LIGHT BASE CHROME
11
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
12
68369-03
LENS TAIL LAMP W/ 68026-99 (LATE MODEL YEAR)
13
68370-03A
SOCKET ASSEMBLY TAIL LAMP (LATE MODEL YEAR)
14
68425-01
TURN SIGNAL ASSEMBLY REAR
16
68572-64B
BULB REAR TURN SIGNAL
17
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
18
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
19
68905-00
SOCKET ASSEMBLY TURN SIGNAL
20
68963-00A
TURN SIGNAL BAR
21
68973-00
Линза
22
73152-96BK
SOCKET HOUSING 2-PLACE
23
73154-96BK
SOCKET HOUSING 4-PLACE
24
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
25
68163-84
BULB (HDI)
26
68169-90A
BULB TAIL LAMP (EARLY MODEL YEAR) (HDI)
26
68167-88
BULB TAIL LAMP, WEDGE MOUNT (LATE MODEL YEAR) (HDI)
27
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03, & 69187-03A (HDI)
27
68142-04
LIGHT ASSEMBLY TAIL LAMP W/ 68558-03 & 69187-03A (EARLY MODEL YEAR) (REPLACES 68833-99) (HDI)
28
68372-03
LENS TAIL LAMP (LATE MODEL YEAR) (HDI)
29
68142-04
LIGHT ASSEMBLY, tail lamp, w/ 68558 & 69187-03A - INTERNATIONAL MODELS ONLY
30
68430-89A
TURN SIGNAL BAR (HDI, ENGLAND)
31
68420-01
TURN SIGNAL ASSEMBLY REAR (HDI)
32
68973-00
LENS (HDI)
33
69187-03A
SOCKET ASSEMBLY TAIL LAMP (LATE MODEL YEAR) (HDI)
