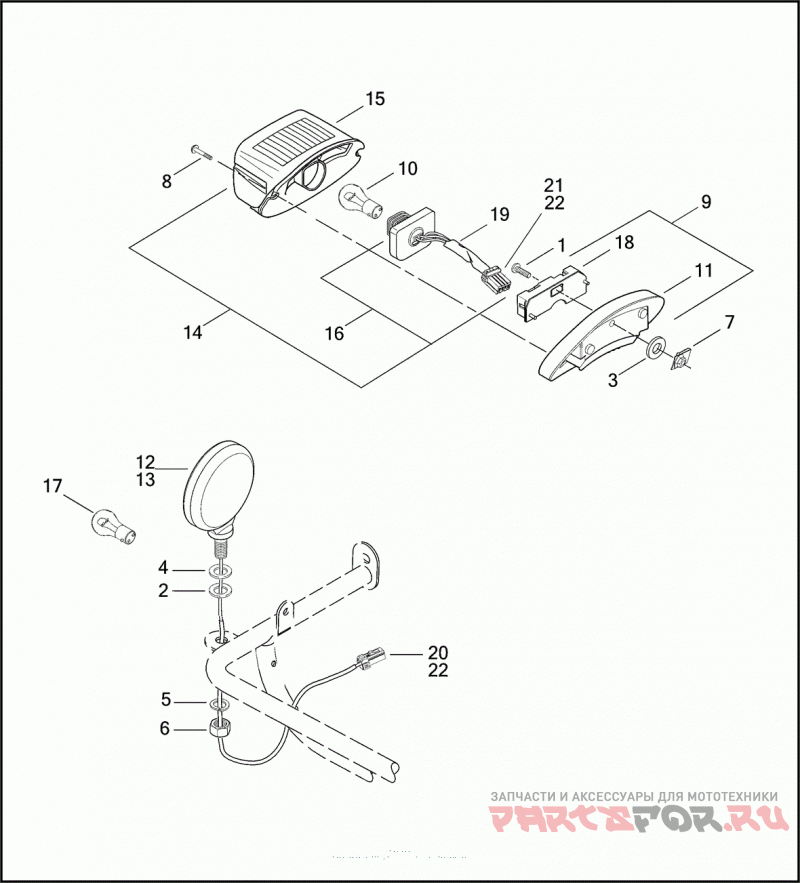

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDP 1GKV DYNA DEFENDER (2003)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
3
6701
WASHER 3/8 X 13/16 X 1/16
4
6718
WASHER 1/2 X 1-1/16 X 3/32
5
7068
LOCKWASHER 1/2
6
7845
NUT 1/2-20 X 7/16 X 3/4 (GRADE 2)
7
7964
J-NUT
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
BASE ASSEMBLY CHROME, W/ 68296-99A & 68830-99A
10
68168-89A
BULB TAIL LAMP (EARLY MODEL YEAR)
10
68167-88
BULB TAIL LAMP - WEDGE MOUNT (LATE MODEL YEAR)
11
68296-99A
BASE TAIL LIGHT CHROME
12
68310-01
TURN SIGNAL ASSEMBLY
13
68330-01
LENS TURN SIGNAL - REAR
14
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
15
68369-03
LENS TAIL LAMP W/ 68026-99 (LATE MODEL YEAR)
16
68370-03A
BULB SOCKET ASSEMBLY (LATE MODEL YEAR)
17
68572-64B
BULB REAR TURN SIGNAL
18
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
19
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
20
73152-96BK
SOCKET HOUSING 2-PLACE
21
73154-96BK
SOCKET HOUSING 4-PLACE
22
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
