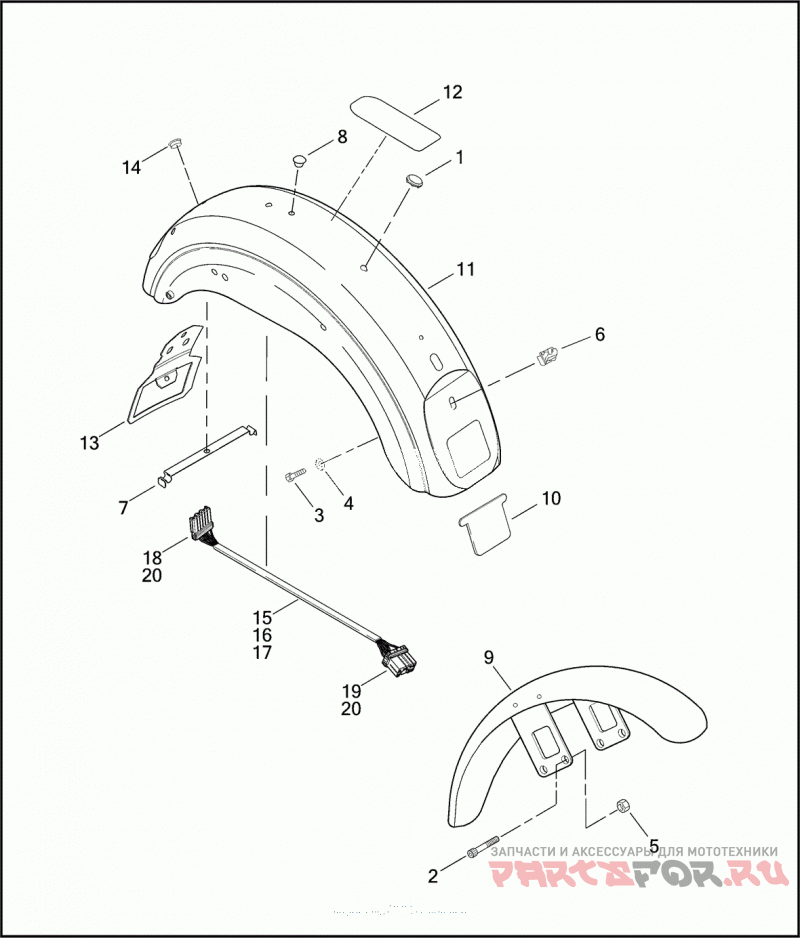

FRONT & REAR FENDER

Harley Davidson FXDP 1GKV DYNA DEFENDER (2003)

Harley Davidson
#oem кодцена
1
761
PLUG (BLACK)
2
3210A
SCREW 5/16-18 X 1-1/4 KNURLED HD.
3
3445
BOLT 5/16-18 X 9/16 HEX HD., W/LOCKPATCH (GRADE 5)
4
6016
WASHER 11/32 X 11/16 X 1/16
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
8102
SPEEDNUT 5/16-18
7
10191A
CLIP WIRE HOLDING
8
10228
Заглушка
9
58998-83E
FENDER (PRIME) (FRONT)
10
59150-90
PLUG FENDER
11
59485-02
FENDER W/ 59576-02 (PRIME) (REAR)
12
59546-02
TAPE FENDER PROTECTOR
14
67055-92
GROMMET LEFT SIDE ONLY
15
68762-99
HARNESS REAR LIGHTING, W/ 73156-96BK, 73158-96BK, 73191-96 & CABLE STRAP
16
68770-02B
HARNESS ASSEMBLY REAR LIGHTING, W/ 68762-99
17
70540-02
CONDUIT KIT
18
73156-96BK
SOCKET HOUSING 6-PLACE
19
73158-96BK
SOCKET HOUSING 8-PLACE
20
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
