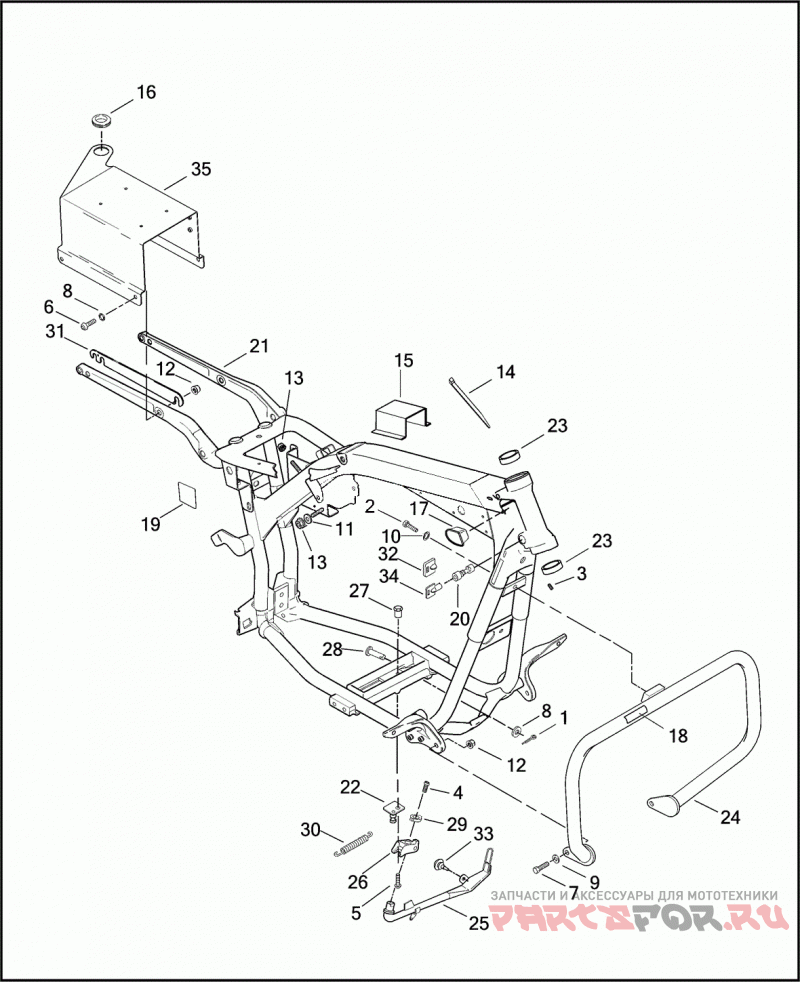

FRAME & JIFFY STAND

Harley Davidson FXDP 1GKV DYNA DEFENDER (2003)

Harley Davidson
#oem кодцена
1
554A
Шплинт
2
2851
BOLT 3/8-16 X 7/8 HEX HD. (GRADE 5)
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
3487
BOLT 5/16-24 X 5/8 HEX HD., W/LOCKPATCH
5
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
6
4103
BOLT 3/8-16 X 1-3/8 HEX BUTTON HD. (GRADE 8)
7
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
8
6379W
WASHER 3/8 X 5/8 X 3/64
9
6701
WASHER 3/8 X 13/16 X 1/16
10
7038
LOCKWASHER 3/8
11
7127
LOCKWASHER 5/16 INTERNAL TOOTH
12
7601
LOCKNUT 3/8-16 FLANGE
13
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
14
10006
CABLE STRAP
14
10039
CABLE STRAP
14
10073
CABLE STRAP
15
10186
CLIP WIRE SADDLE
16
11503
Уплотнитель резиновый
17
11457
PLUG STEERING HEAD
18
14148-86
Лейбл
19
14273-96
IGNITION LABEL HOLE COVER
20
45680-90
LOCK FORK (SPECIFY KEY CODE)
21
47456-02
FRAME 28 DEGREE RAKE
22
47318-98
Фиксатор
23
48315-60
BEARING CUP STEERING HEAD
24
49009-03
GUARD ENGINE ASSEMBLY
25
49710-94B
LEG JIFFY STAND - LONG
26
49720-90
PIVOT BLOCK
27
49723-98
THREADED SPACER
28
50003-89B
Штифт
29
50053-90
CATCH
30
50057-02
Пружина
31
52372-02
SPACER SIDE PLATE
32
61081-92
COVER KEY HEAD SET
33
62123-66A
Амортизатор ударов
35
76162-02
BRACKET MOUNTING RADIO
