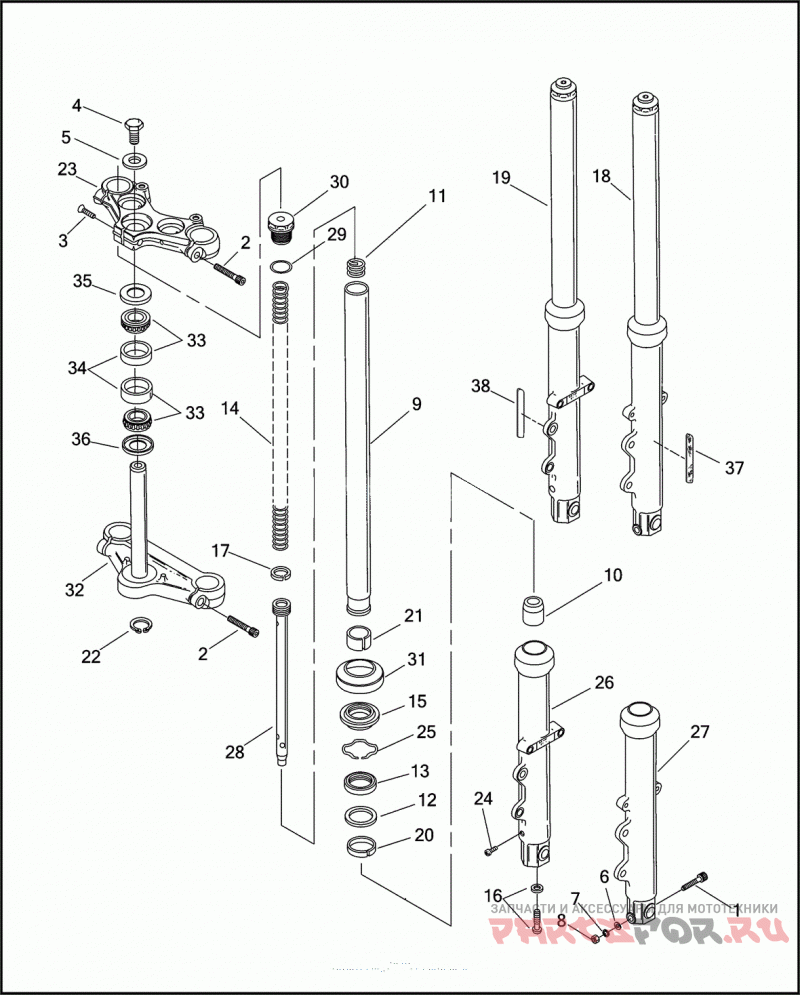

Передняя вилка

Harley Davidson FXDP 1GKV DYNA DEFENDER (2003)

Harley Davidson
#oem кодцена
1
4029A
SCREW 3/8-16 X 2-1/4 SOCKET HD. (BLACK)
2
4351
SCREW 3/8-16 X 1-1/2 TORX HD., SELF-TAPPING (GRADE 8)
2
4047
SCREW 3/8 X 2 TORX BUTTON HD., SELF-TAPPING
3
4352
SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)
4
4460
BOLT 5/8-18 X 1 HEX HD. (GRADE 5)
5
6655
WASHER 5/8 X 1-1/2 X 7/64
6
6701
WASHER 3/8 X 13/16 X 1/16
7
7038
LOCKWASHER 3/8
8
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
9
45365-94
SLIDER TUBE
10
45361-90
LOWER STOP
11
45374-87
SPRING SLIDER
12
45377-87
SPACER OIL SEAL
13
45378-87
Сальник
15
45401-87
SEAL DUST
16
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
17
45460-90
RING DAMPER TUBE
18
45347-02
FORK SLIDER & TUBE ASSEMBLY RIGHT
19
45348-02
FORK SLIDER & TUBE ASSEMBLY LEFT
20
45461-87
BUSHING UPPER
21
45465-87
BUSHING SLIDER TUBE
22
45611-86
Стопорное кольцо
23
45739-87
BRACKET UPPER
24
45790-80
DRAIN SCREW W/ WASHER
25
45905-87
RETAINING RING OIL SEAL
26
45921-00
SLIDER ASSEMBLY LEFT
27
45922-00
SLIDER ASSEMBLY RIGHT
28
45926-90
DAMPER TUBE
29
45984-87
Уплотнительное кольцо
30
45996-87
CAP SLIDER TUBE
31
46002-87
COVER SLIDER
32
47668-90B
FORK STEM BEARING ASSEMBLY, W/ TRIPLECLAMP ASSEMBLY LOWER, BEARING CONE & DUSTSHIELD
33
48300-60
ROLLER BEARING W/ CUP
34
48315-60
BEARING CUP
35
48361-80
DUST SHIELD UPPER
36
48365-48A
DUST SHIELD LOWER
37
59481-00
REFLECTOR AMBER R.H.
38
59482-00
REFLECTOR AMBER L.H.
